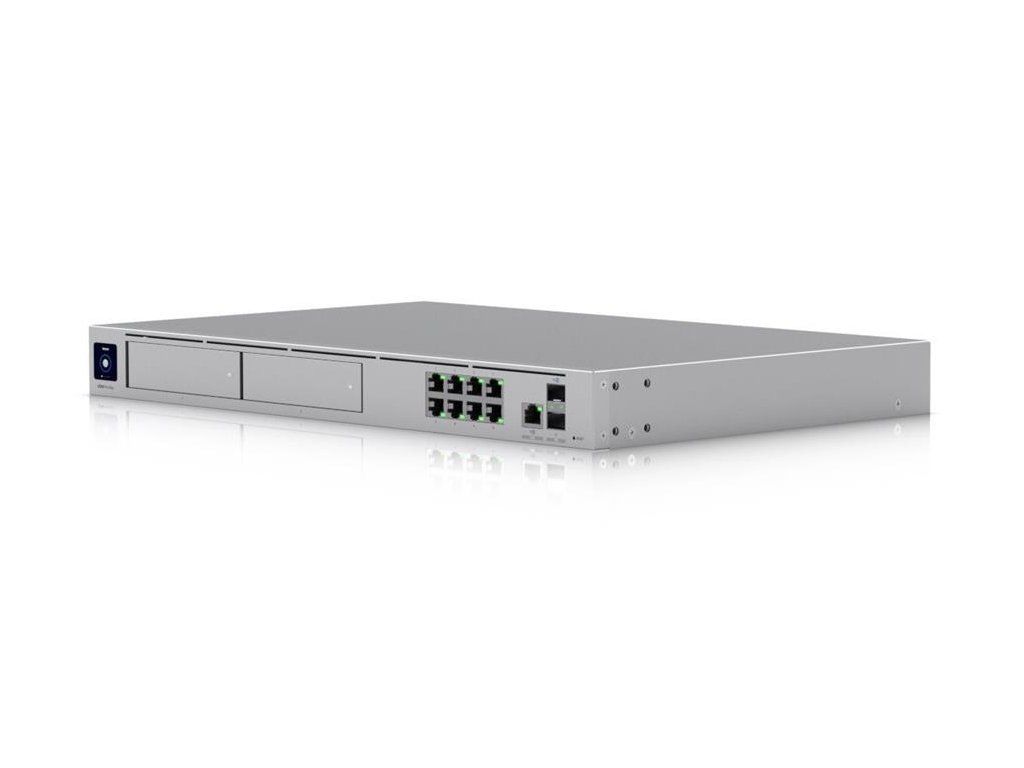

Ubiquiti UniFi Dream Machine Pro MAX Gateway + Controller + IDS/IPS + NVR + switch UDM-PRO-MAX

Technical Specifications



Mechanical

Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

Weight 4.7 kg (10.4 lb)

Enclosure material Aluminium CNC, SGCC steel

Mount material SGCC steel



Hardware

Processor Quad-core ARM® Cortex®-A57 at 2.0 GHz

System memory 8 GB DDR4

On-board storage 32 GB eMMC

Integrated 128 GB SSD

Management interface Ethernet

Bluetooth

Networking interface

LAN:

(8) GbE RJ45 ports

(1) 10G SFP+ port

WAN:

(1) 2.5 GbE RJ45 port

(1) 10G SFP+ port

IDS/IPS throughput 5 Gbps*

*Measured with iPerf3.

Power method (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz

(1) USP-RPS DC input,12V DC, 4.6A

Power supply AC/DC, internal, 100W

Supported voltage range 100—240V AC

Max. power consumption 60W

ESD/EMP protection Air: ± 15kV, contact: ± 8kV

LCM display (1) 1.3" touchscreen

Button Factory reset

Ambient operating temperature -10° to 40° C (14° to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC



Gateway Features

Performance  Redundant WAN with failover and load balancing

WiFi QoS with UniFi APs

Application, domain, and country-based QoS

Application and device type identification

Additional internet failover with LTE Backup

Internet quality and outage reporting

Next-generation security Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, and ad filtering

VLAN/subnet-based traffic segmentation

Full stateful firewall

Advanced networking License-free SD-WAN

WireGuard, L2TP and OpenVPN server

OpenVPN client

OpenVPN and IPsec site-to-site VPN

One-click Teleport and Identity VPN

Policy-based WAN and VPN routing

DHCP relay

Customizable DHCP server

IGMP proxy

IPv6 ISP support



LEDs

Ethernet Green: link/activity

SFP+ Green: link/activity

HDD White: disk activity

Amber: disk error

RPS Blue: ready
