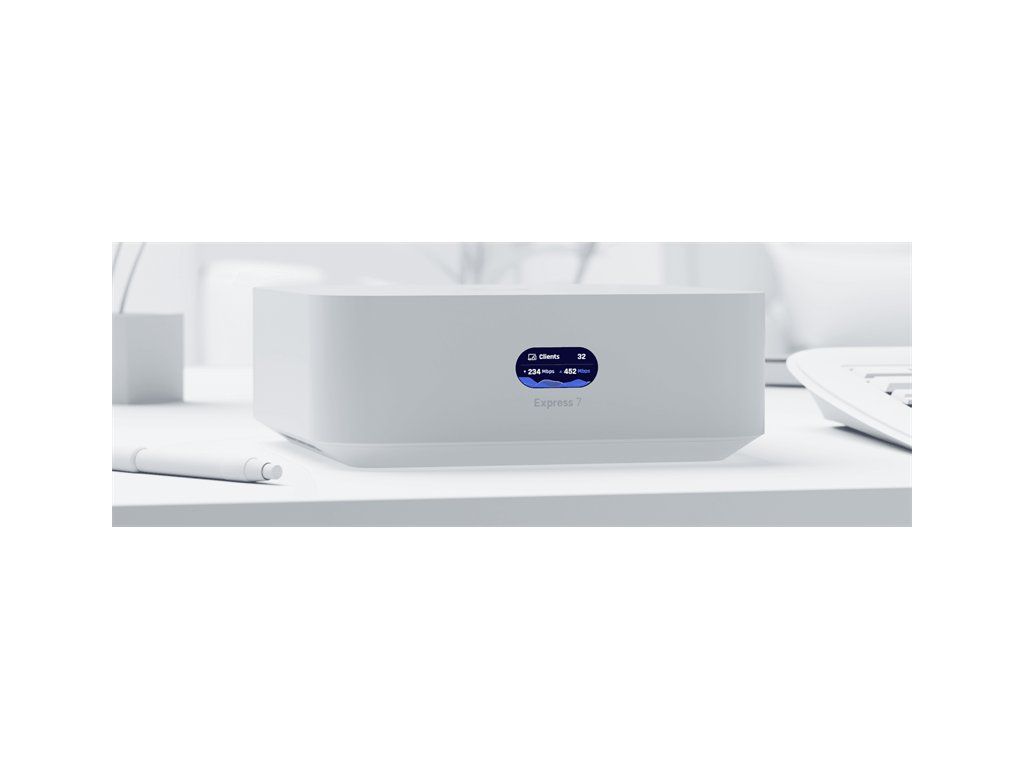

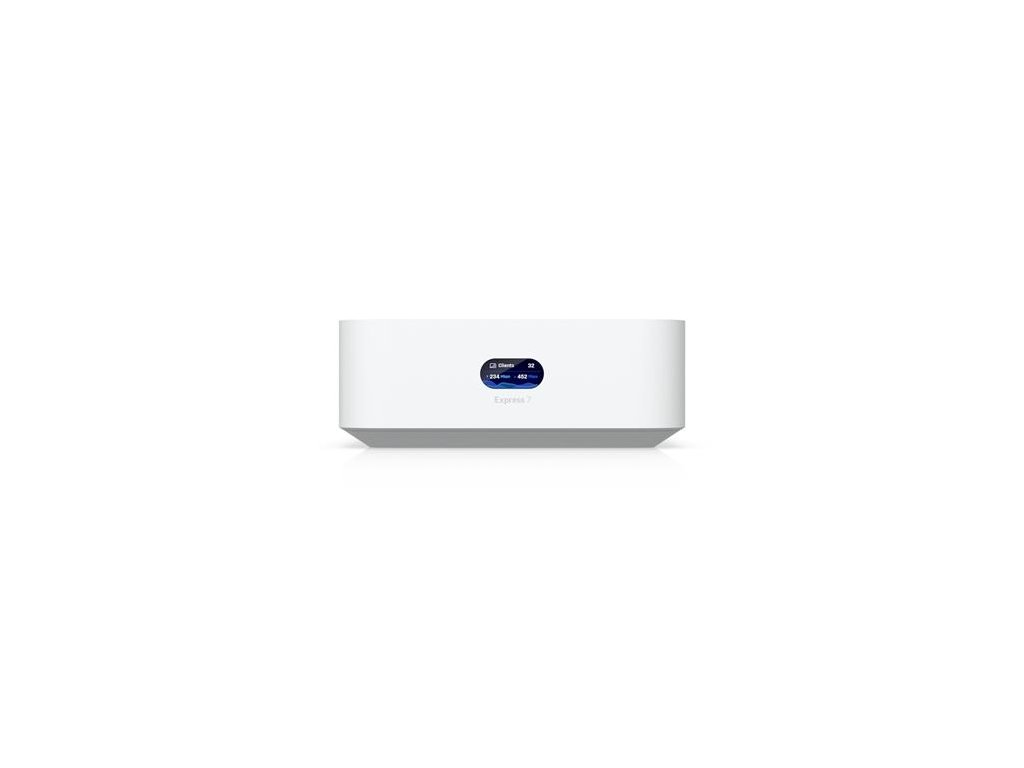

Ubiquiti UniFi Express 7 (UniFi gateway + AP WIFI 7 + controller) UX7

Overview

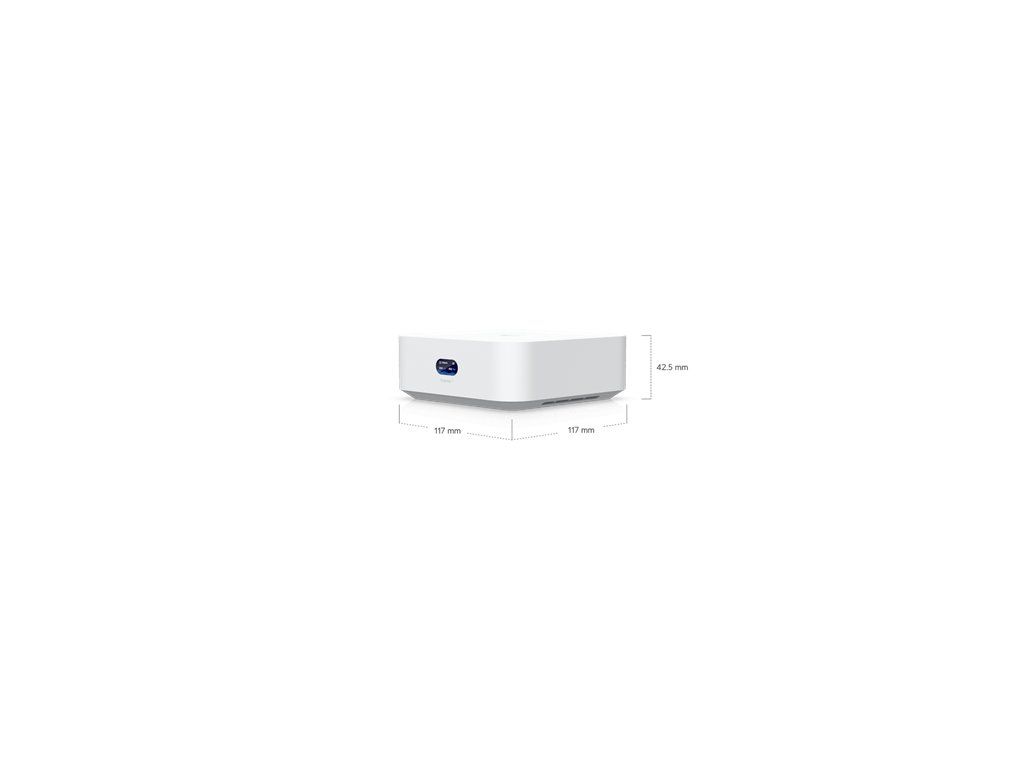

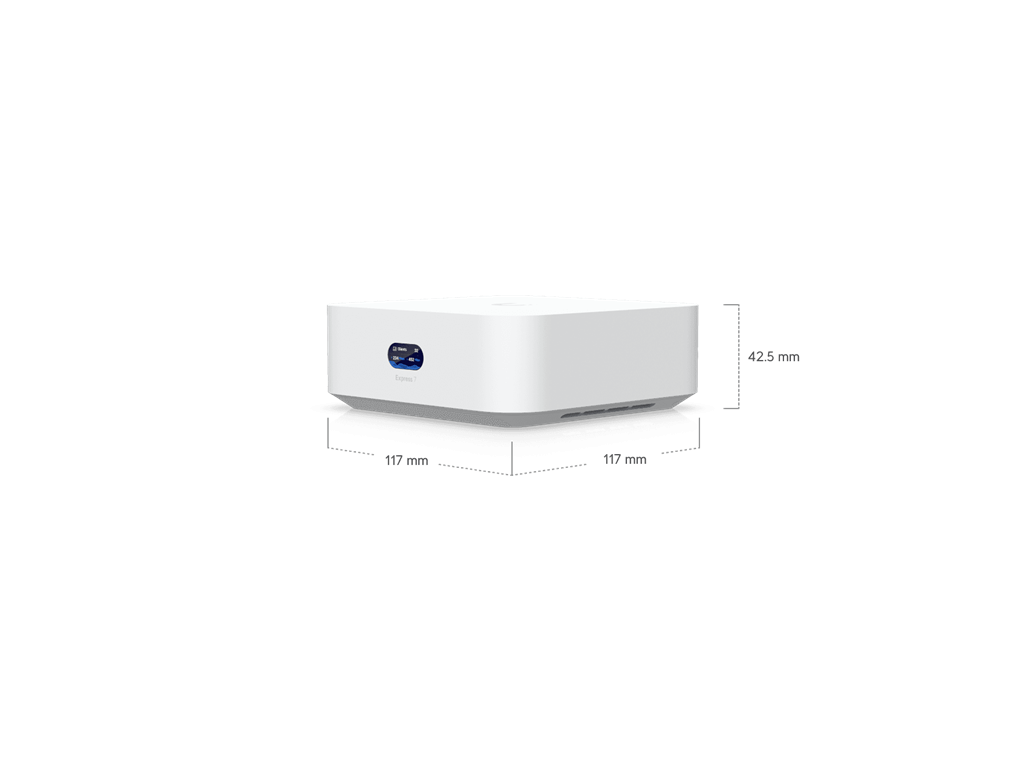

Dimensions 117 x 117 x 42.5 mm

UniFi Application Suite

Network Yes

Managed UniFi Devices 30

Simultaneous Users Connected 300

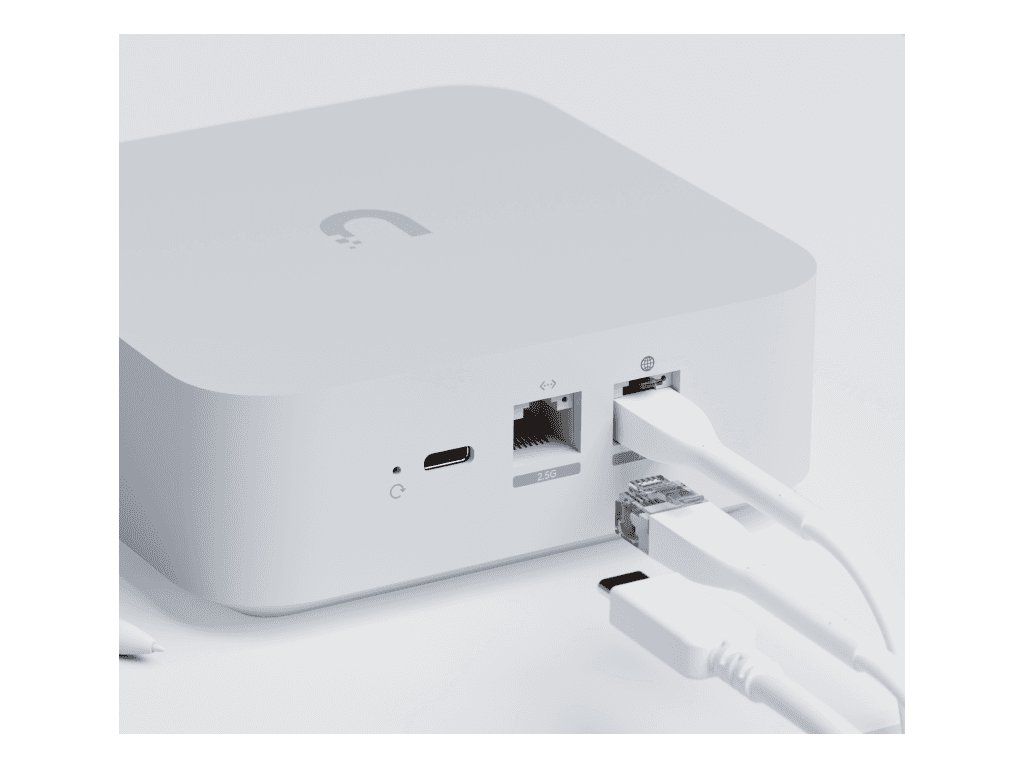

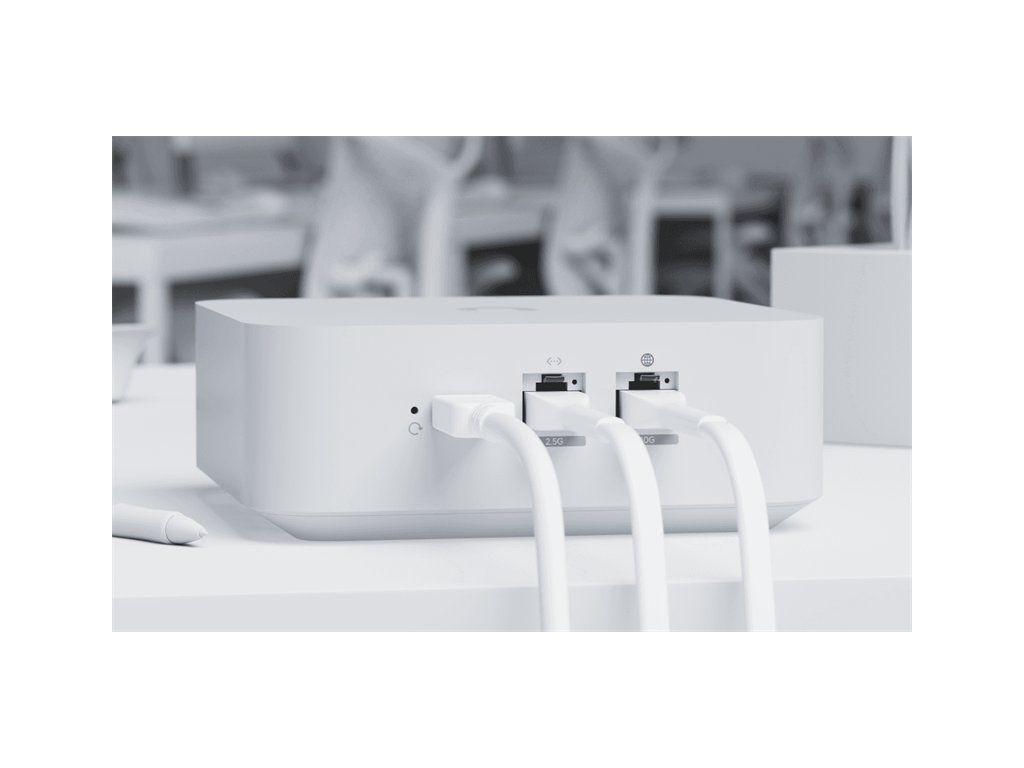

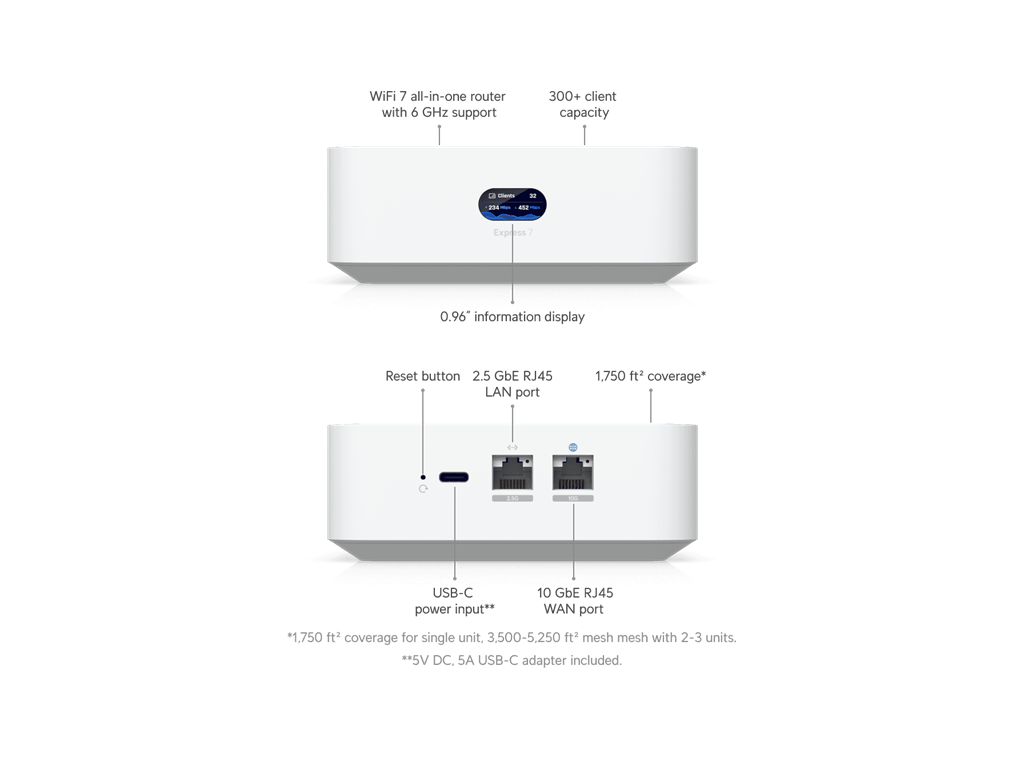

Default WAN Ports (1) 10 GbE RJ45

LAN Ports (1) 2.5 GbE RJ45

IDS/IPS Throughput 2.3 Gbps

Form Factor Compact desktop

Coverage Area 160 m²

Security

Stateful Firewall Yes

Application-Aware Layer 7 Firewall Yes

DPI & Traffic Identification Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes

Content Filtering Yes

Intrusion Prevention (IPS/IDS) Yes

Ad Blocking Yes

IDS/IPS Signatures 20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation Yes

VPN & SD-WAN License-Free SD-WAN Yes

Site-to-Site VPN

Site Magic Yes

IPsec Yes

OpenVPN Yes

VPN Server

Identity Endpoint One-Click VPN Yes

Teleport Zero-Configuration VPN Yes

WireGuard Yes

OpenVPN Yes

L2TP Yes

VPN Client

OpenVPN Yes

WireGuard Yes

Networking

Dynamic Routing OSPF Yes

Advanced QoS Yes

Multicast DNS (mDNS) Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes

Integrated RADIUS Server Yes

RADIUS over TLS (RadSec) Yes

Additional Internet Failover with UniFi LTE Backup Yes

Internet Quality and Outage Reporting Yes

Policy-based WAN and VPN Routing Yes

Customizable DHCP Server Yes

IPv6 ISP Support Yes

IGMP Proxy Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz 5.7 Gbps

5 GHz 4.3 Gbps

2.4 GHz 688 Mbps

MIMO

6 GHz 2 x 2 (DL/UL MU-MIMO)

5 GHz 2 x 2 (DL/UL MU-MIMO)

2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz 6 dBi

5 GHz 7 dBi

2.4 GHz 4 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs 4 per Radio (Gateway Mode) 4 per Radio (AP Mode)

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

Max. Power Consumption 22W

Power Method USB type C (5V DC/5A)

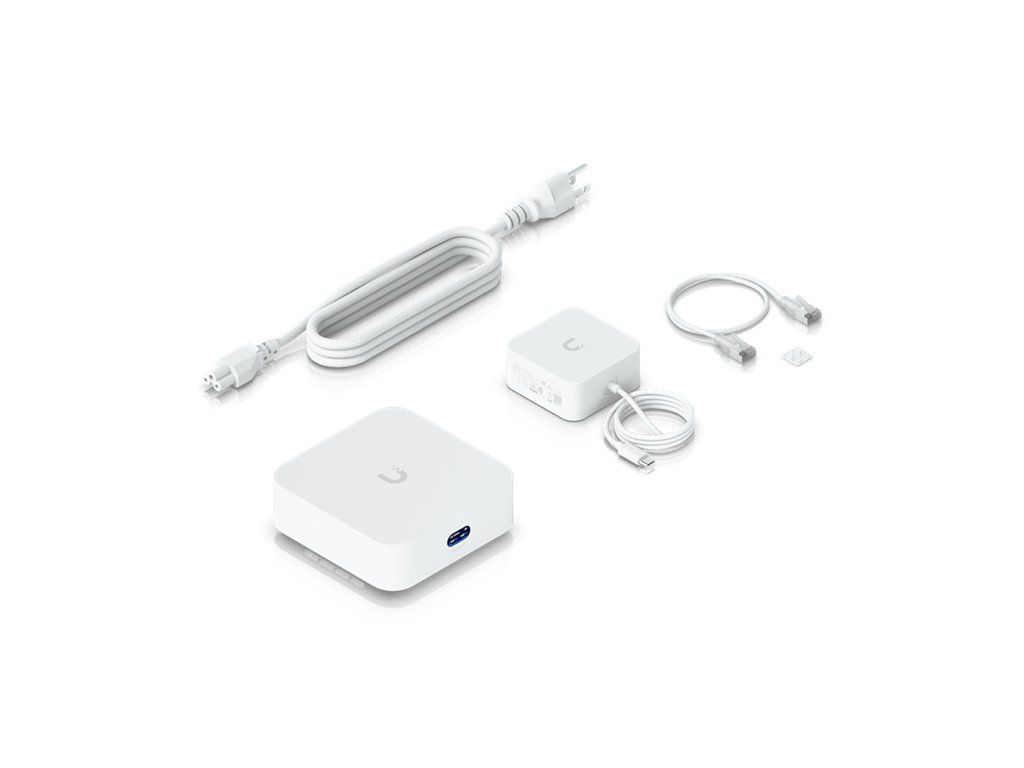

Power Supply USB type C (5V DC/5A) (Adapter included)

Max. TX Power

6 GHz 24 dBm

5 GHz 26 dBm

2.4 GHz 23 dBm

Supported Voltage Range 100-240V AC

Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory 3 GB

Weight 422 g (14.9 oz)

Enclosure Material Polycarbonate

LCM Display 0.96" status display

Management Ethernet Bluetooth

LEDs Ethernet Yes

ESD/EMP Protection Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature -10 to 40° C (14 to 104° F)

Ambient Operating Humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Button (1) Factory-reset

Software

VLAN 802.1Q

Guest Traffic Isolation Yes

Application Requirements UniFi Network Version 9.0.108 and later
