Ubiquiti UniFi U6 Mesh Pro, U6-Mesh-Pro

Popis produktu

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

WiFi 6

4 spatial streams

185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna

350+ connected devices

Powered using PoE

GbE uplink with (1) GbE passthrough port

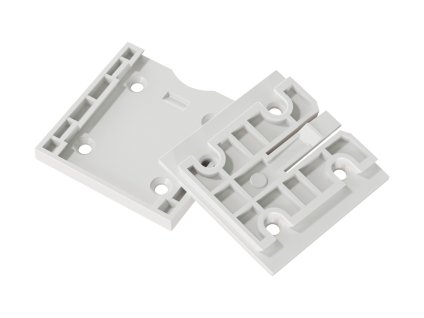

Versatile wall and pole mounting

Weatherproof (outdoor exposed)

Technical Specifications

Mechanical

Dimensions

343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")

Weight

819 g (1.8 lb)

Enclosure material

UV-stabilized polycarbonate

Mount material

Aluminum alloy, steel

Pole mount diameter

1~2.5" on pipe outer diameter

Weatherproofing

IPX6

Hardware

Networking interface (2) GbE RJ45 ports

Management interface Ethernet

WiFi

Power method PoE

Power supply UniFi PoE switch

48V, 0.5A PoE adapter (Included)

Supported voltage range 42.5—57V DC

Max. power consumption 9W

Max. TX power

2.4 GHz 22 dBm

5 GHz 27 dBm

6 GHz –

MIMO

2.4 GHz 2 x 2 (DL/UL MU MIMO)

5 GHz 2 x 2 (DL/UL MU MIMO)

6 GHz –

Throughput rate

2.4 GHz 573.5 Mbps

5 GHz 2.4 Gbps

6 GHz –

Antenna gain

2.4 GHz 8 dBi

5 GHz 8 dBi

6 GHz -

LEDs White/blue

Button Factory reset

Mounting Wall, pole (Included)

Ambient operating temperature -30 to 60° C (-22 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards 802.11a/b/g/n/ac/ax

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 350+

Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)

802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Application Requirements

UniFi Network

Version 8.1.127 and later
