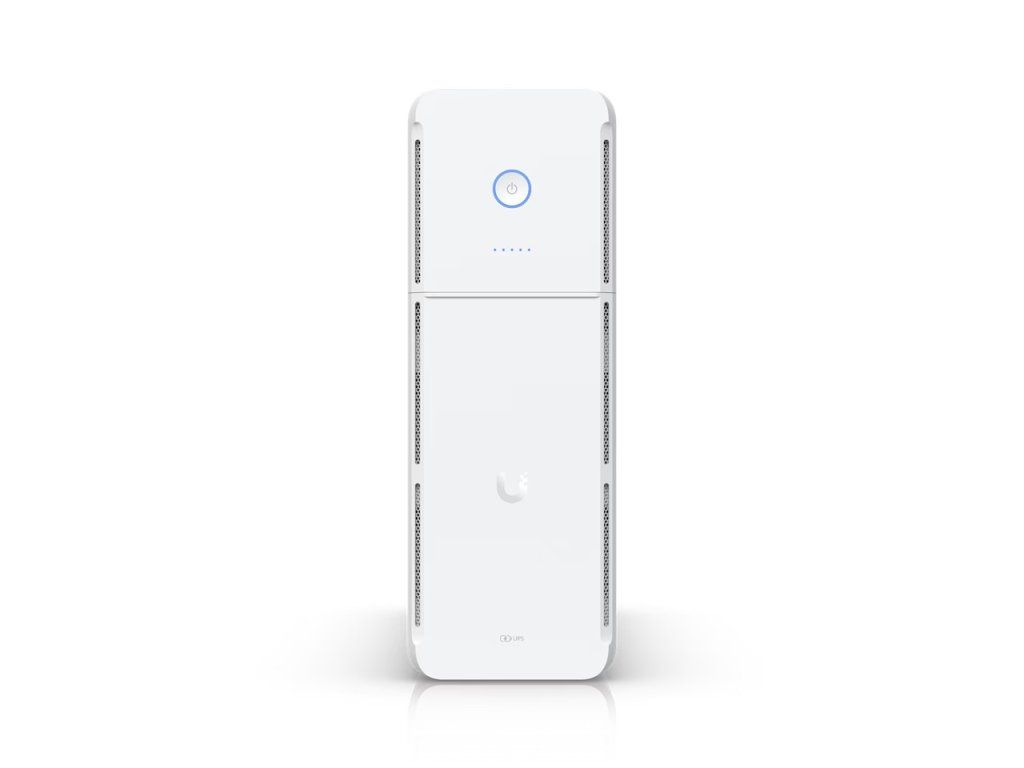

Ubiquiti UniFi UPS-TOWER záložní zdroj 1000VA/600W 10xIEC tower

Záložní zdroj napájení UniFi 1kVA s 5 záložními zásuvkami, 5 přepěťovými zásuvkami a baterií vyměnitelnou za provozu, 108 Wh, doba provozu 7 minut při poloviční zátěži (300 W).

Podporuje plynulé vypnutí pro UNVR a UNAS a zahrnuje kompatibilitu s NUT pro zařízení třetích stran.



Poznámka: Pro funkci plynulého vypnutí je vyžadován UniFi OS verze 4.4.3 nebo vyšší.

Dimensions   288 x 99 x 280.5 mm

Weight   7.85 kg

Enclosure Material   Polycarbonate and acrylonitrile butadiene styrene blend

Form Factor   Desktop

Weatherproofing   IP20



Management   Ethernet

Networking Interface   (1) 100/10 MbE port for network connection  + (2) GbE ports for surge in/out

Power

(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord

(5) Battery backup/surge protection: C13

(5) Surge protection: C13



Capacity   1,000VA/600W

Type   Line interactive

Input Voltage Range   170—280V AC

Power Method   (1) TN system, 220—240V AC, 6A Max., 50/60 Hz

Nominal Input Voltage   230V AC

Output Voltage  220—240V AC

Nominal Output Voltage   230V AC

Frequency Range   AC mode: 50/60 Hz ±5 Hz (Auto sensing)

Battery mode: 50 Hz ±1 Hz AC Voltage Regulation  ±10% (Battery mode)

Transfer Time   6 ms typical; 10 ms max. (Battery mode)

Wave Form   Simulated sine wave (Battery mode)

Battery Type   (1) Lead Acid 12V, 9Ah

Runtime   Full load: 2 min / Half load: 7 min

Battery Charging Time   6-8 hours recovery to 90% capacity

Overload at On-Line Mode   110% 5 min go to fault / 120% go to fault immediately

Overload at Battery Mode   110% shutdown in 5 sec  /  120% shutdown immediately

Short Circuit Protection at On-Line Mode   Breaker, 250V AC, 10A

Output Short-Circuit Current   Ipeak 401.9A  /  Irms 160.7A

Buttons   (1) Power / (1) Factory reset



LEDs

Status

Off: device not turned on

Flashing white: initializing / factory default

Steady white: waiting for adoption

Steady blue: device adoption and working

Flashing blue: battery mode

Alternating white/blue: firmware upgrading

Rapid flashing blue: locate

Steady red: warning

Flashing red: low battery

Battery Indicator

All off: 0%

(1) Steady blue: battery 1—19%

(2) Steady blue: battery 20—39%

(3) Steady blue: battery 40—59%

(4) Steady blue: battery 60—79%

(5) Steady blue: battery 80—100%

Operating Altitude

3,000 m (1.9 mi)

Operating Environment

Pollution Degree 2

Ambient Storage Temperature

-20 to 50° C (-4 to 122° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

0 to 95% noncondensing

Certifications

CE, IEC 62040-1
