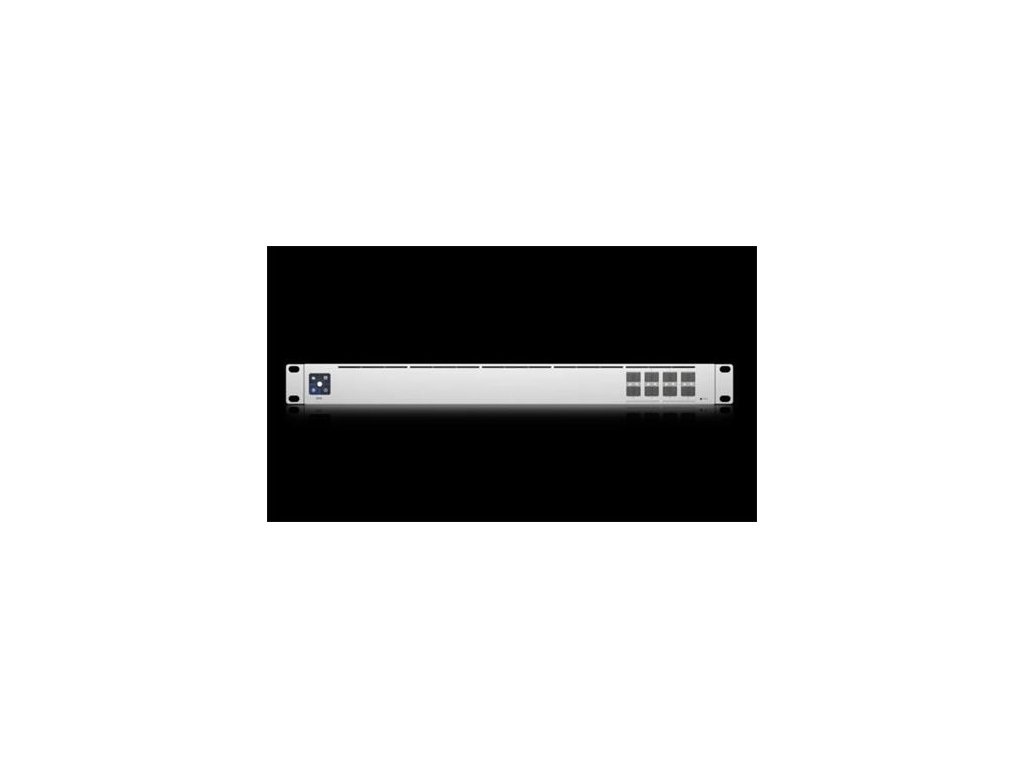

Ubiquiti USW-Aggregation - UniFi Switch Aggregation

Popis produktu

Technical Specifications



Mechanical

Dimensions 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")

Weight Without mounting brackets: 2.6 kg (5.8 lb)

With mounting brackets: 2.7 kg (6 lb)

Enclosure material SGCC steel



Hardware

Management interface  Ethernet In-Band

Networking interface  (8) 10G SFP+ ports

Total non-blocking throughput 80 Gbps

Switching capacity  160 Gbps

Forwarding rate  119.04 Mpps

Power method  Universal input, 100—240V AC, 50/60 Hz

Power supply  AC/DC, internal, 36W

Supported voltage range 100—240V AC

Max. power consumption  30W

ESD/EMP protection  Air: ± 16kV, contact: ± 12kV

Max. number of supported SFP+ modules  UACC-OM-MM-10G: 8

UACC-OM-SM-10G: 8

UACC-CM-RJ45-10G: 4

UACC-CM-RJ45-MG: 4

Services SMB Layer 2 GbE switch

LCM display (1) 1.3" LCM color touchscreen

Button Factory reset

Ambient operating temperature  -5 to 40° C (23 to 104° F)

Ambient operating humidity  10 to 90% noncondensing

Certifications  CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs



LEDs

System Status

SFP+ Link/activity



Application Requirements

UniFi Network  Version 5.14.12 and later
