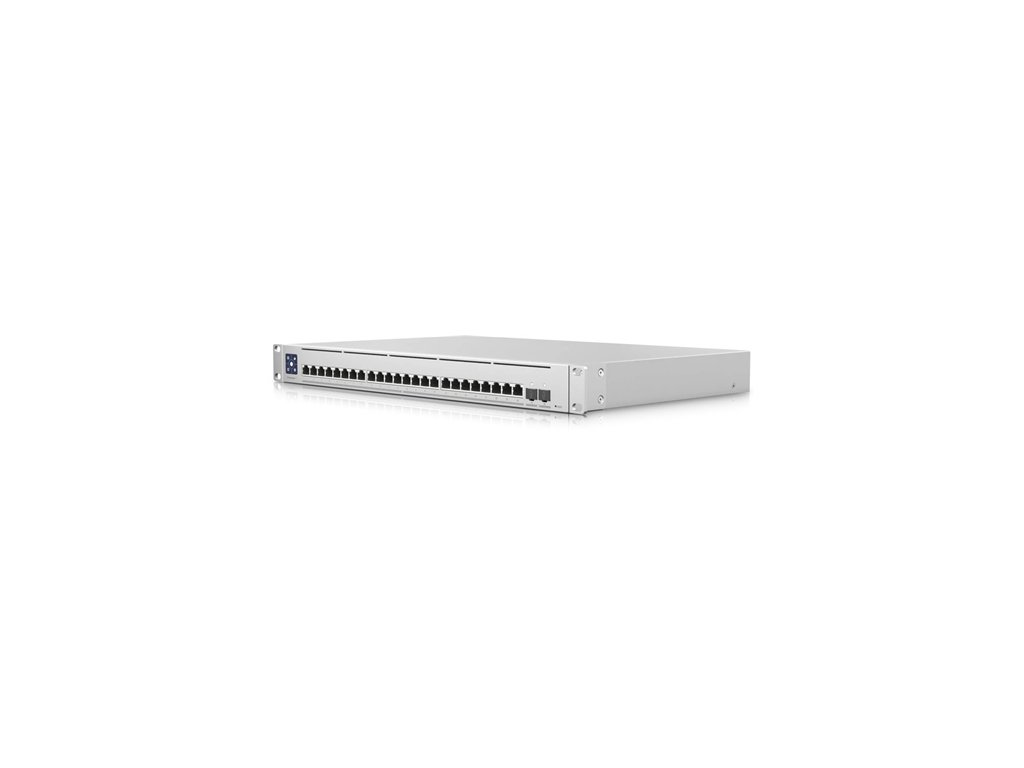

Ubiquiti USW-EnterpriseXG-24 - UniFi Switch Enterprise XG 24

Technical Specifications



Mechanical

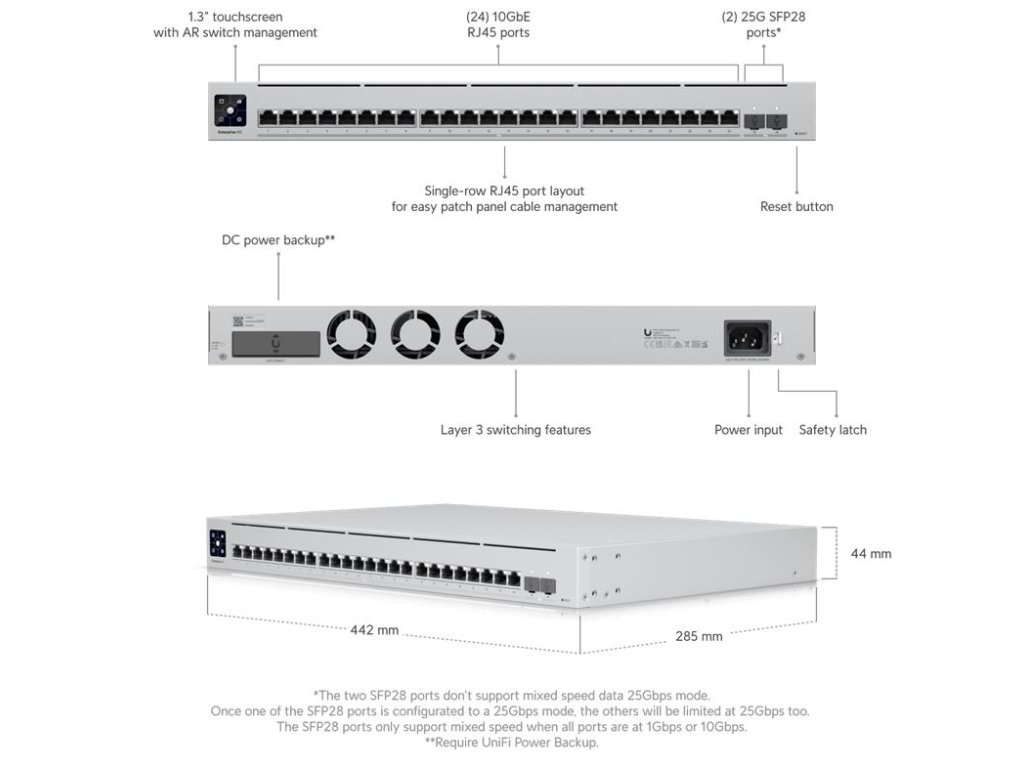

Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

Weight Without mounting brackets: 4.5 kg (9.9 lb)

With mounting brackets: 4.6 kg (11 lb)

Enclosure material SGCC steel



Hardware

Management interface Ethernet In-Band

Networking interface (24) 1/2.5/5/10 GbE ports

(2) 25G SFP28 ports*

*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.

Total non-blocking throughput 290 Gbps

Switching capacity 580 Gbps

Forwarding rate 431.52 Mpps

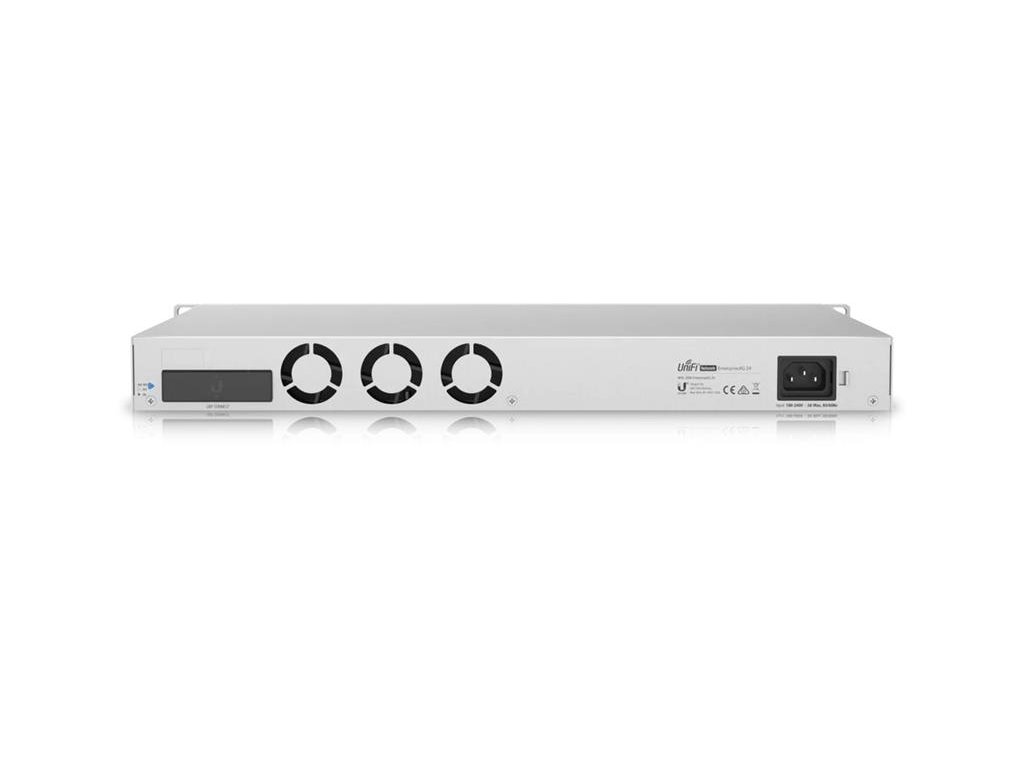

Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz

(1) USP-RPS DC input, 11.5V DC, 8.7A

Power supply AC/DC, internal, 100W

Supported voltage range 100—240V AC

Max. power consumption 100W

Services SMB Layer 3 GbE switch

ESD/EMP protection Air: ± 16kV, contact: ± 12kV

LCM display (1) 1.3" color touchscreen

Button Factory reset

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 95% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs



LEDs

System Status

Ethernet Link/activity

Application Requirements

UniFi Network  Version 6.1.67 and later
