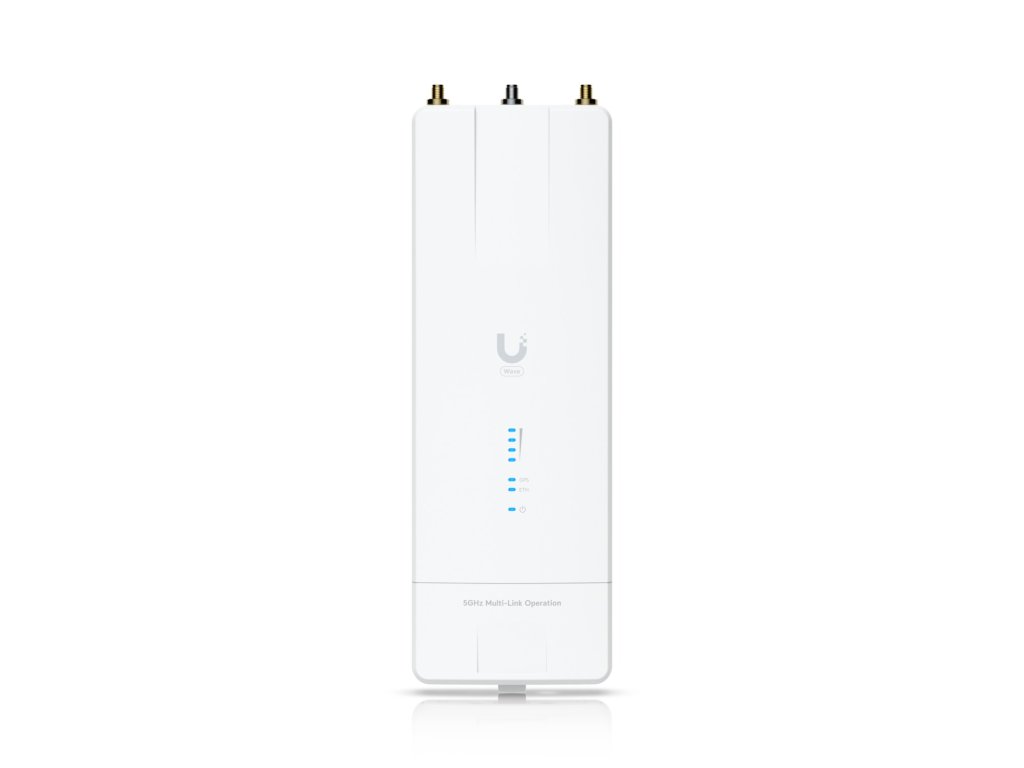

Ubiquiti WAVE-MLO5 WiFi7 5GHz max. 5Gbps outdoor

Mechanical

Dimensions

249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")

Weight

575 g (1.3 lb)

Enclosure material

Aluminum alloy, UV-resistant polycarbonate

Mount material

Strap: stainless metal

Universal bracket: UV-resistant polycarbonate

Pole mount diameter

25.4 to 50.8 mm (1 to 2") on pipe outer diameter

Weatherproofing

IPX6

Hardware

Processor

Quad-core IPQ5322 at 1.5 GHz

Memory

DDR4 1 GB

Networking interface

(1) 10 GbE RJ45 port

(1) 10G SFP+ port

RF connectors

(2) RP-SMA (Waterproof)

(1) GPS (Waterproof)

Max. power consumption

20W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply

54V DC, 0.56A, 10 GbE PoE adapter (Included)

Supported voltage range

44–54V DC 22–27V DC

Max. TX power*

5 GHz

24 dBm

*Depends on regulatory region.

MIMO

5 GHz

(2) 2 x 2

GPS

Yes

Button

(1) Factory reset

LEDs

(1) Power, (1) Ethernet, (1) GPS, (4) signal

Ambient operating temperature

-40 to 60° C (-40 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE

Software

Operating mode

PtP

Services

UISP, ping watchdog, NTP client

Tools

Alignment, speed test, ping, traceroute, discovery, site survey

Network

Bridge mode

Total throughput

5+ Gbps

Max. range*

100 km

*Throughput and range values may vary depending on the environmental conditions.

Encryption

WPA3-PSK (AES)

RF

Operating frequency*

5180 – 5320, 5500 – 5700, 5745 – 5825 MHz *Depends on regulatory region.

Channel bandwidth

Radio 1: 20, 40, 80, 160 MHz

Radio 2: 20, 40, 80, 160, 240 MHz

Modulation

BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (?), 64QAM (¾), 64QAM (?), 256QAM (¾), 256QAM (?), 1024QAM (¾), 1024QAM (?), 4096QAM (¾), 4096QAM (?)
