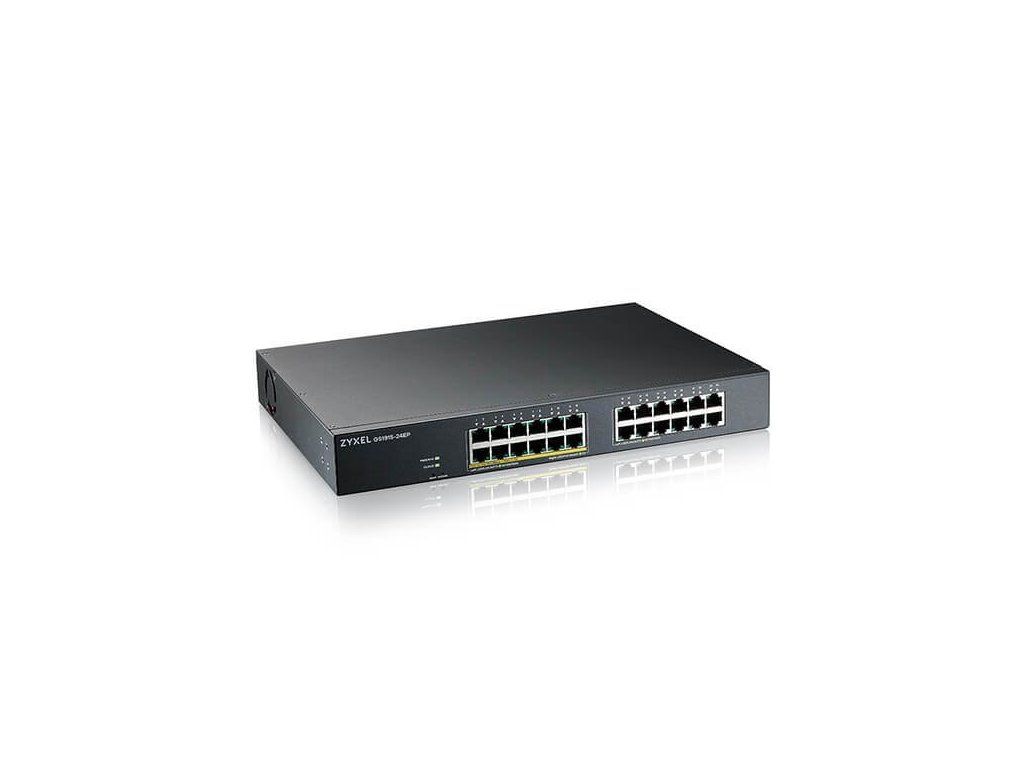

ZYXEL GS1915-24EP 24GbE Smart hybrid mode Switch GS1915-24EP-EU0101F ZyXEL

Switch obsahuje štyri 24-portové prepínače s možnosťou PoE alebo bez nej. PoE uľahčujú širokú škálu sieťových nastavení s flexibilným rozpočtom 130 W (24EP) so všetkými portami PoE podporujúcimi IEEE 802.3at PoE+. Tento rad prepínačov prichádza s užitočnými funkciami a vynikajúcim výkonom s plug-n-play.

Séria GS1915 podporuje bezplatnú správu cloudu Nebula. Nebula poskytuje intuitívne webové rozhranie a mobilnú aplikáciu, aby vám poskytla zjednodušený zážitok z inštalácie a správy vašej siete bez dodatočných nákladov na softvérový alebo hardvérový ovládač.

Mobilná aplikácia Nebula umožnuje:

Jednoduché pripojenie zariadenia: skenovanie QR kódu

Pohľad na stav siete

Diaľkové ovládanie vašej siete

Reštartujte prístupový bod, kameru po zapnutí napájania PoE

Blokujte klientov s nezvyčajnou návštevnosťou



Zyxel GS1915-24EP, 24-port GbE, 12 port PoE, 130 Watt 802.3at, rackmount, fanless, Smart hybrid mode Switch, standalone or NebulaFlex Cloud



Features

Standard Compliance

IEEE 802.3 10BASE-T Ethernet*

IEEE 802.3u 100BASE-TX Ethernet*

IEEE 802.3ab 1000BASE-T Ethernet*

IEEE 802.3x flow control

IEEE 802.3af PoE*

IEEE 802.3at PoE+*

IEEE 802.3az EEE support/Green Ethernet

IEEE 802.1p CoS support*

* Cloud and standalone modes supported features

Resilience and Availability

IEEE 802.1D Spanning Tree Protocol (STP)*

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*

IEEE 802.3ad LACP* (max # trunks/links per trunk):

8/8EP: 4 groups/8 links per group

24E/24EP: 8 groups/8 links per group

Loop guard*

Dual configuration files

Dual images*

* Cloud and standalone modes supported features

Traffic Control

802.1Q Static VLANs: 256*

Port-based VLAN

Voice VLAN*

MAC-based VLAN

Vendor ID based VLAN*

VLAN Trunking*

LACP algorithm of source/destination IP

* Cloud and standalone modes supported features

Security

Layer 2 MAC filtering

Static MAC forwarding

SSH v2

SSL

Port isolation*

Port security

MAC freeze

CPU protection

SHA2 HTTPS Certification

Login authentication by RADIUS

RADIUS accounting

Authorization on RADIUS

Multiple RADIUS servers

DHCP Snooping

* Cloud and standalone modes supported features

Quality of Service (QoS)

802.1p queuing methods: SPQ, WRR, WFQ

Storm control: broadcast, multicast, unknown unicast (DLF)*

Port-based rate limiting (ingress/ egress)*

802.3x flow control

802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)

DiffServ (DSCP)

* Cloud and standalone modes supported features

Layer 2 Multicast

L2 Multicast*

Static L2 Multicast Forwarding

IGMP snooping (v1, v2, v3)*

* Cloud and standalone modes supported features

Manageability

SNMP v1*, v2c*, v3

SNMP trap group

RMON (1, 2, 3, 9)

ICMP echo/echo reply

Syslog*

Display port utilization*

IEEE 802.1AB LLDP

IEEE 802.1AB LLDP-MED

Custom default

Support NebulaFlex for Cloud Management

* Cloud and standalone modes supported features

IPv6 Management

IPv6 over Ethernet (RFC 2464)

IPv6 addressing architecture (RFC 4291)

Dual stack (RFC4213)

ICMPv6 (RFC4884)

Path MTU (RFC 1981)

Minimum Path MTU size of 1280 (RFC 5905)

Encapsulation for maximum PMTU size of 1500

Neighbor Discovery (RFC4861)

Device Management

Standalone management by Web interface

Cloud management by Nebula Control Center*

Setup Wizard

Management through Web, SNMP

Remote firmware upgrade by FTP/Web

Configuration saving and retrieving

DHCP client*

DHCP relay per VLAN

Daylight saving*

NTP (IPv4/IPv6)

Port mirroring*

Schedule PoE*

PoE default consumption mode*

* Cloud and standalone modes supported features

MIB

Zyxel private common MIB

RFC 1066 TCP/IP-based MIB

RFC 1213, 1157 SNMPv2c/v3 MIB

RFC 1493 bridge MIB

RFC 1643 Ethernet MIB

RFC 1757 RMON group 1, 2, 3, 9

RFC 2011, 2012, 2013 SNMPv2 MIB

RFC 2233 SMIv2 MIB

RFC 2358 Ethernet-like MIB

RFC 2674 bridge MIB extension

RFC 2819, 2925 Remote Management MIB

RFC 3621 Power Ethernet MIB

RFC 4293 Management Information Base (MIB) for IP

RFC 4292 IP forwarding table MIB

RFC 4022 management information base for transmission control protocol

RFC 4113 management information base for user datagram protocol

Zyxel One Network

ZON Utility*



Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device factory reset

Device reboot

Device locating

Web GUI access

Password configuration

One-click quick association with Zyxel AP Configurator (ZAC)

Automatic detection of the latest firmware

Displays device serial number and hardware version

Cloud mode on/off option for Hybrid series devices

* Cloud and standalone modes supported features

Smart Connect



Discover neighboring devices

One-click remote management access to the neighboring Zyxel devices

Reset neighboring devices remotely to factory defaults

Power cycle neighboring powered devices (PoE switches only)

Certifications

EMC

CE, FCC, RCM, Class A

BSMI CNS 13438

Safety

LVD EN 62368-1

BSMI CNS 14336-1

RoHS
