ZYXEL NWA50AX,Standalone/NebulaFlex WIFI AP, singl pack NWA50AX-EU0102F ZyXEL

Zyxel NWA50AX je skutočný prístupový bod WiFi 6, ktorý prichádza so sadou funkcií, ktoré sú vhodné pre malé podniky a používateľov SoHo, ktorí chcú prejsť na 11ax (WiFi 6) Prístupový bod, ktorý podporuje frekvencie 2,4 GHz aj 5 GHz, je zameraný na to, aby vám umožnil vychutnať si všetko to najlepšie, čo WiFi 6 ponúka, ako sú vyššie rýchlosti, aj keď je preťažený alebo v prostredí s vysokou hustotou, rozšírený dosah vo vašej bezdrôtovej sieti, zvýšená kapacita pre nasadenie internetu .



Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point

Wireless

Standard IEEE 802.11 ax/ac/n/g/b/a

MIMO MU-MIMO

Wireless speed 2.4GHz: 575 Mbps

5GHz: 1200 Mbps

Frequency band 2.4 GHz

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth 20-, 40-, 80-MHz

Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm

EU (2.4GHz/5GHz): 20/25 dBm

RF Design

Antenna type 2x2 + 2x2 MIMO embedded antenna

Antenna gain 2.4GHz: 3 dBi

5GHz: 4 dBi

Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm

WLAN feature

Band Steering Yes

WDS/Mesh Yes

Fast roaming Yes

DCS Yes

Load balancing No

Security

Encryption

WPA Personal

WPA2 Personal

WPA3 Personal

Authentication No

Access management

MAC filtering

Rogue AP detection

Networking

IPv6 Yes

VLANs Yes

WMM Yes

U-APSD Yes

Management

Operating mode

Nebula Cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations

IP configuration

IP renew

Device factory reset

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Zyxel Wireless Optimizer WiFi AP planning

Web UI/CLI Yes

SNMP NO

Physical Specifications

Item Dimensions (WxDxH)(mm/in.)

140 x 140 x 37.5/5.51 x 5.51 x 1.48

Weight (g/lb.)

290/0.64

Packing Dimensions (WxDxH)(mm/in.)

240 x 155 x 60/9.45 x 6.10 x 2.36

Weight (g/lb.)

600/1.32

Included accessories

Power adapter

Mount plate

Mounting screws

MTBF (hr) 1,010,980

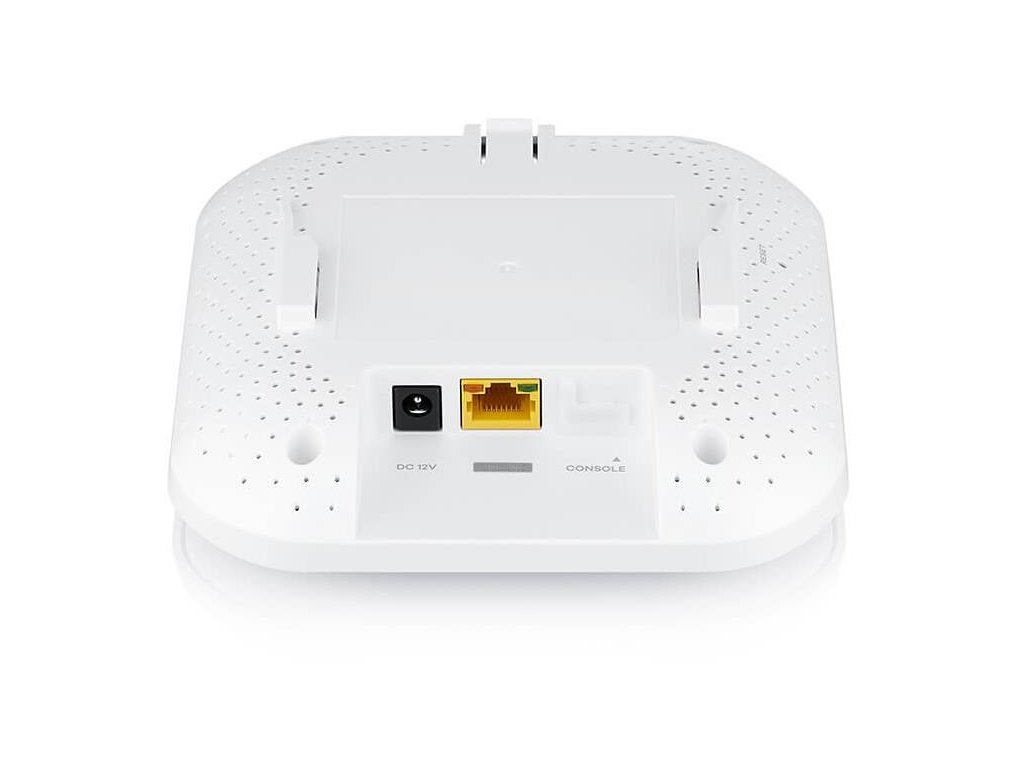

Physical Interfaces

Ethernet port 1 x 10/100/1000M LAN

Power

Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A

PoE (802.3at): power draw 16 W

Environmental Specifications

Operating Temperature

0°C to 50°C/32°F to 122°F

Humidity

10% to 90% (non-condensing)

Storage Temperature

-40°C to 70°C/-40°F to 158°F

Humidity

10% to 90% (non-condensing)

Certifications

Radio

FCC Part 15C

FCC Part 15E

ETSI EN 300 328

EN 301 893; LP0002

EN 60601-1-2

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55022

EN55024

EN61000-3-2/-3

BSMI CNS13438

Safety

EN 60950-1

IEC 60950-1

BSMI

CNS14336-1
