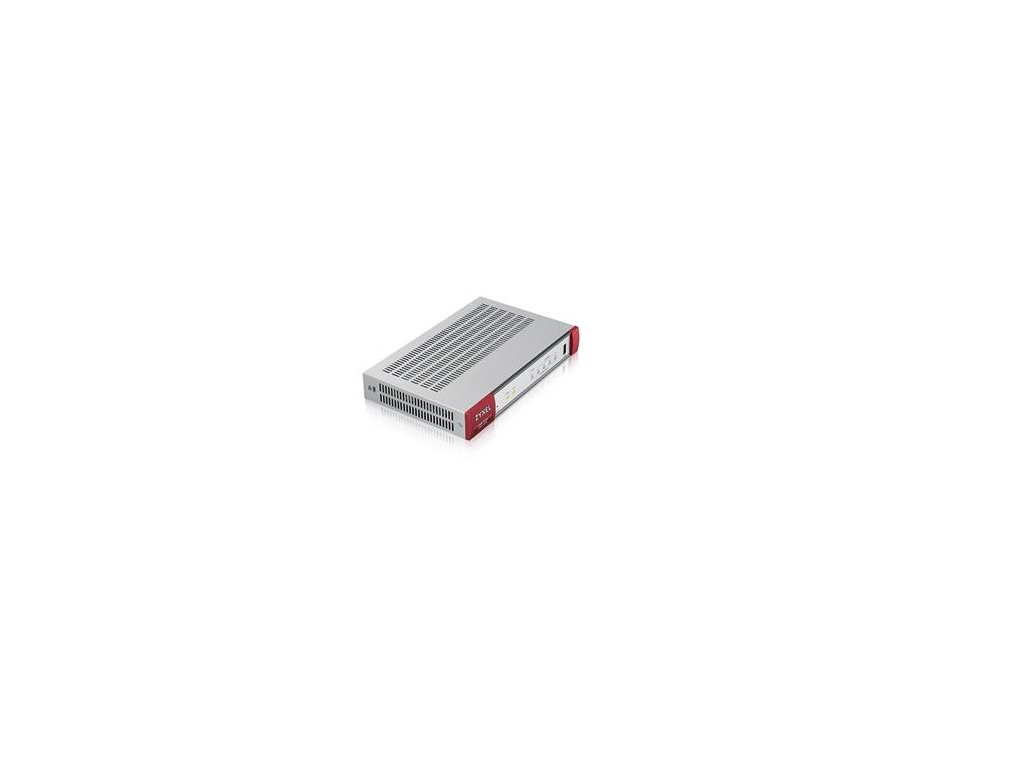

Zyxel USG FLEX 50 H, 5 Gigabit user-definable ports, 1*USB with 1 YR Entry Defense Pack USGFLEX50H-EU0101F ZyXEL

Zyxel USG FLEX 50 H, 5 Gigabit user-definable ports, 1*USB with 1 YR Entry Defense Pack

USG FLEX H series provides secure, fast protection with ground-breaking high performance for Virtual Private Networks (VPN) and Unified Threat Management (UTM), a multi-layered approach to protecting the Firewall, the network infrastructure and connected users by leveraging Zyxel’s high-performance hardware and state-of-the-art AI Security Cloud architecture.

Ultra High Performance
Ultra-high Performance powered by our next-generation multi-core hardware and Fastpath technology to create ultra-high efficiency. The USG FLEX H series can boost performance by up to 3x, optimizing utilization of its processors and allowing Zyxel to deliver superior performance to satisfy the needs required by demanding and high-speed networks.

Port Flexibility, Multi-G and PoE+
With 2.5 Gbps and 10 Gbps Port Speed options, The USG FLEX H also features software-defined ports, allowing you true flexibility in the configuration and tailoring of each USG FLEX H as required (WAN or LAN).


Network interfaces
100M/1G Ethernet (RJ-45)
5

100M/1G/2.5G Ethernet (RJ-45)
-

1G/2.5G/5G/10G Ethernet (RJ-45)
-

1G SFP/10G SFP+
-

IEEE 802.3at (PoE+) Port
-


USB 3.0 Type-A
1

Console port
Yes (RJ-45)

Rack-mountable
-

Fanless
Yes

System Capacity & Performance*1
SPI firewall throughput (Mbps)*2
2,000

VPN throughput (Mbps)*3
500

IPS throughput (Mbps)*4
1,000

Anti-Malware throughput (Mbps)*4
600

UTM throughput (Anti-malware & IPS, Mbps)*4
600

Max. TCP concurrent sessions*5
100,000

Max. concurrent IPsec VPN tunnels*6
20

Recommended gateway-to-gateway IPsec VPN tunnels
5

Concurrent SSL VPN users
15

VLAN interface
8

Key Features
Security Service*7
Anti-Malware
Yes

IPS
Yes

Application Patrol
Yes

Web filtering
Yes

Reputation Filter
Yes

SecuReporter
Yes

Sandboxing
Yes

Security Profile Sync
Yes

Device Insight
Yes

Secure WiFi*8
Yes

SSL (HTTPS) inspection
Yes

Two-Factor Authentication
Yes

VPN, Management & Connectivity
VPN
IKEv2/IPSec, SSL

Nebula Centralized Management
Yes

Device HA
-

Power Requirements
Power input
50H: 12V DC, 2A

Max. power consumption (Watt Max.)
50H: 8.86

Heat dissipation (BTU/hr)
50H: 32.42

Physical Specifications
Item
Dimensions (WxDxH)(mm/in.):
216 x 143 x 33/8.50 x 5.63 x 1.30


Weight (kg/lb.):
50H: 1.02/ 2.26

50HP: 1.04/ 2.31

Packing

Dimensions (WxDxH)(mm/in.):

278 x 189 x 99/10.94 x 7.44 x 3.89


Weight (kg/lb.):
50H: 1.27/ 2.80

Included accessories

Power adapter
-

RJ-45 to RS-232 cable for console connection
Environmental Specifications

Operating
Temperature: 0°C to 40°C / 32°F to 104°F
Humidity: 10% to 90% (non-condensing)

Storage
Temperature: -30°C to 70°C / -22°F to 158°F
Humidity: 10% to 90%(non-condensing)

MTBF (hr)
50H:

40°C/ 596100.85308 hr
25°C/ 945046.81927 hr


Acoustic noise
-

Certifications
EMC
FCC Part 15 (Class B)
CE EMC (Class B)
RCM (Class B)
BSMI

Safety
LVD (EN62368-1)
BSMI
