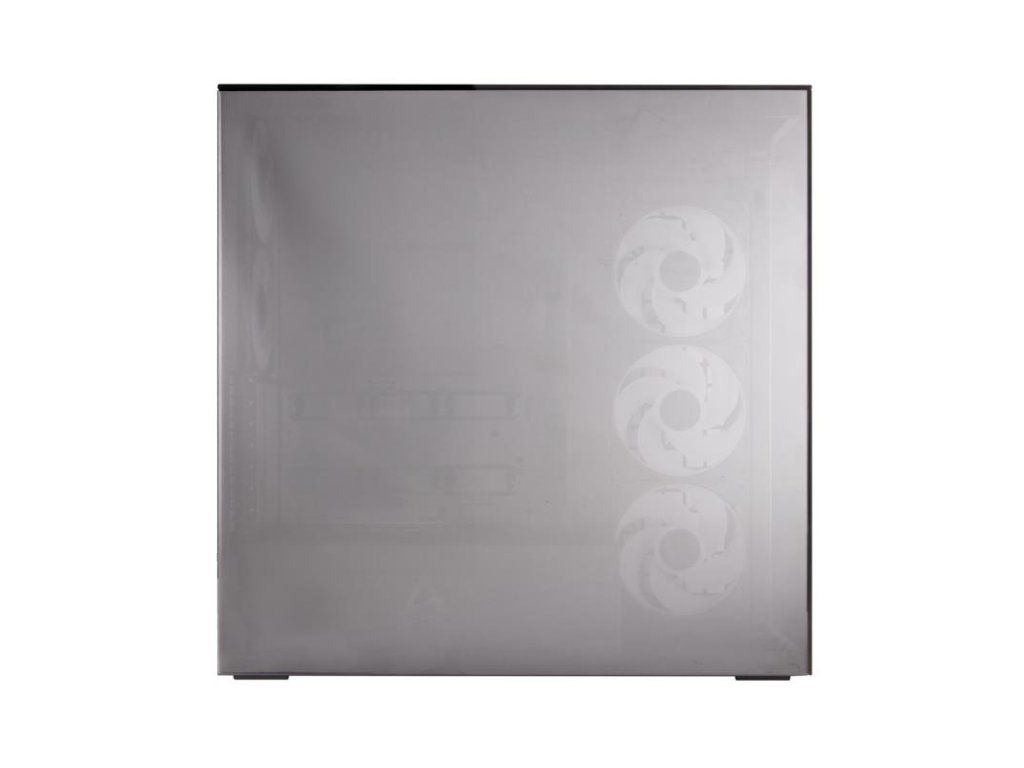

ARCTIC Xtender (Mirror Black) Mirror black window ACPCC00019A Arctic Cooling

Xtender VG Black (Mirror Glass)

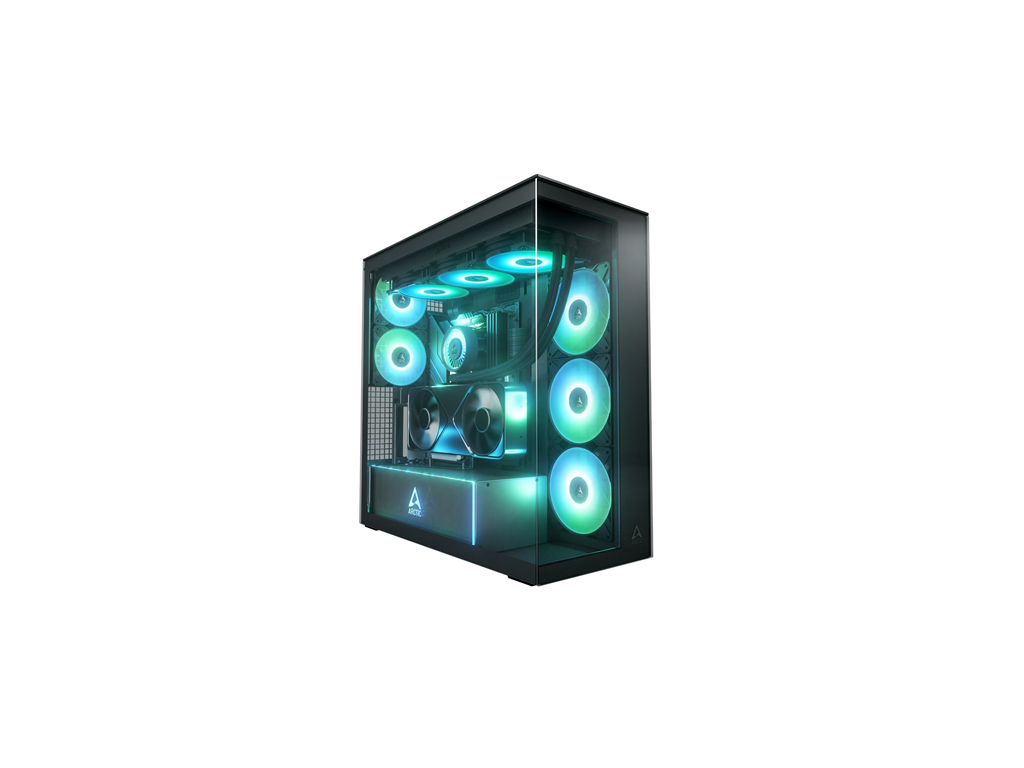

Premium E-ATX PC Case with Vertical GPU Mounting



Motherboard Support
up to E-ATX (285 mm wide)
Fan Support
Top:
3x 120 mm | 3x 140 mm
Side:
3x 120 mm | 3x 140 mm (included)
Rear:
2x 120 mm (included)
Radiator Support
Top:
240 / 280 / 360 / 420 mm
Side:
240 / 280 / 360 / 420 mm
CPU Cooler
up to 171 mm
PSU
ATX up to 318 mm (200 mm with HDD Cage)
GPU
up to 482 mm (337 mm with Side Radiator)
Front I/O
USB-C (USB 3.2 Gen2x1 - 10 Gbps)
2x USB-A (USB 3.2 Gen1x1 - 5 Gbps)
3.5 mm Jack (Line-In/Out)
Power Button
Warranty
6 Years
Operating Ambient Temperature
0–40 °C
Net Weight
15.4 kg
Volume
64 l
Dimensions
529 (L) x 231 (W) x 529 (H) mm
Drive Bays
Behind the Mainboard Tray: 3× 2,5"
HDD Cage: 2x 3,5" or 2,5" + 1x 2,5"
PCI Slots
7
Cable Management Space
35 mm
Dust Filters
Top, Right Side
PSU RGB Stripe Specifications

LEDs
24 × A-RGB Gen 2 LEDs
Current | Voltage
0.89 A | 5 V DC
Connector
3-Pin A-RGB Plug + Socket
Fan Specification

2x P12 Pro A-RGB (pre-installed at rear)

Speed
600–3000 rpm
Air Flow
77 cfm | 131 mł/h
Static Pressure
6.9 mmH2O
Bearing
Fluid Dynamic Bearing
Current | Voltage
0.33 A | 12 V DC
Connector
4-Pin Fan Plug + Socket
RGB Specifications

LEDs
12x A-RGB Gen 2 LEDs
Current | Voltage
0.40 A | 5 V DC
Connector
3-Pin A-RGB Plug + Socket
3x P14 Pro Reverse A-RGB (pre-installed at side)

Speed
400–2650 rpm
Airflow
98 cfm | 166.5 mł/h
Static Pressure
5.1 mmH2O
Bearing
Fluid Dynamic Bearing
Current | Voltage
0.40 A | 12 V DC
Connector
4-Pin Fan Plug + Socket
RGB Specifications

LEDs
12 x A-RGB Gen 2 LED
Current | Voltage
0.40 A | 5 V DC
Connector
3-Pin A-RGB Plug + Socket

Only VG versions

Vertical GPU Mounting Kit Specification
Dimensions
196 (L) x 153 (W) x 140 (H) mm
Supported Graphics Cards
Up to 482 mm Length and 3-Slot Mounting
Compatibility
PCIe 4.0 and Backward Compatible
Riser Cable
160 mm, PCIe 4.0 x16
PCI Slots Required
7
