GIGABYTE AORUS ELITE P1000W ICE/1000W/ATX 3.1/80PLUS Platinum/Modular/Retail GP-AE1000PM PG5 ICE Gigabyte

Popis produktu

KEY FEATURE

ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
80 PLUS Platinum certified
100% Japanese capacitors
120mm smart Fluid Dynamic Bearing (FDB) fan
Compact design
Fully modular design
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
10 years warranty (Adjusted according to different regions)


Model
GP-AE1000PM PG5
Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1000W
Dimension
150 x 140 x 86mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS
Platinum
Efficiency
92% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black

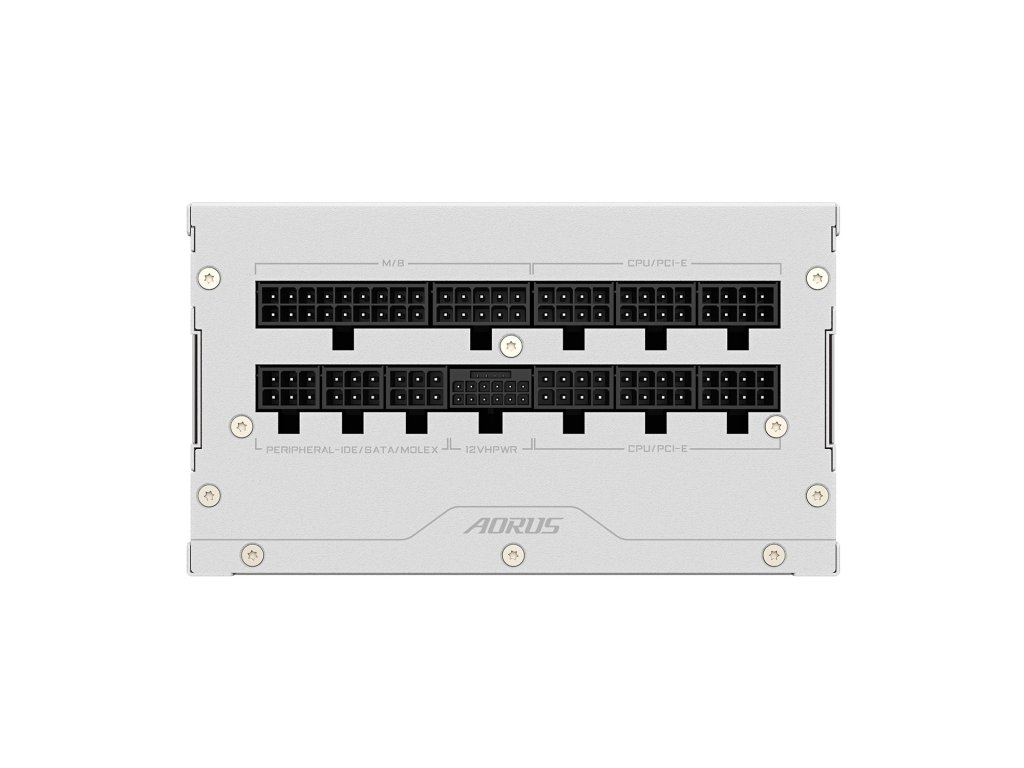

Connectors
ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
