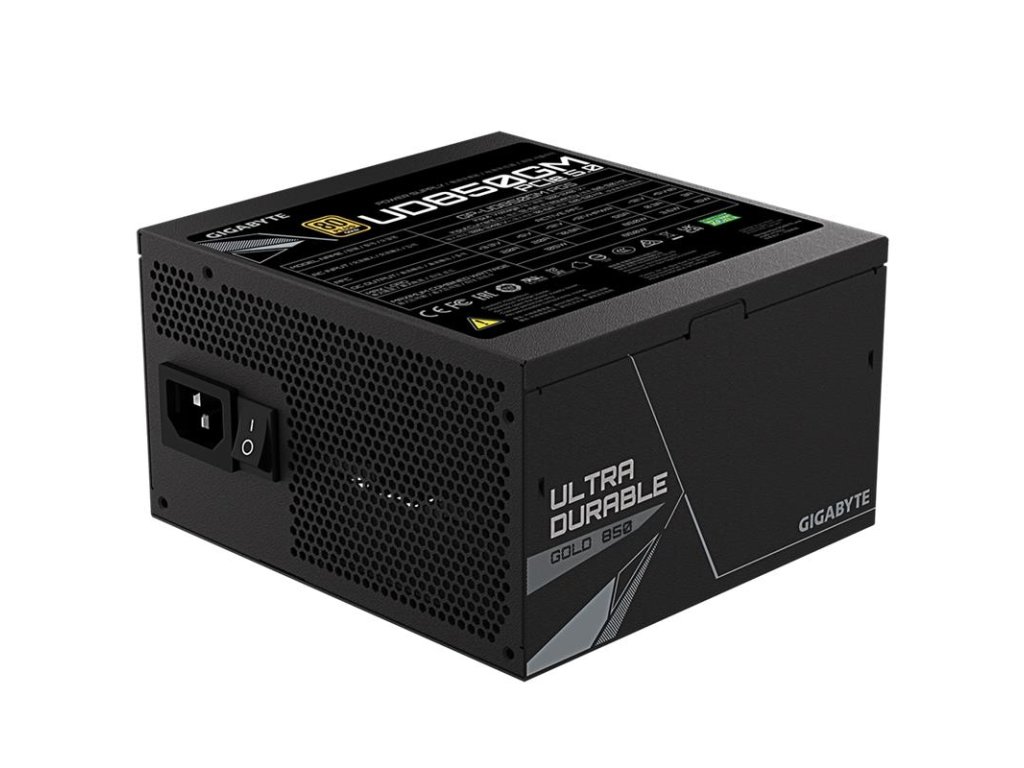

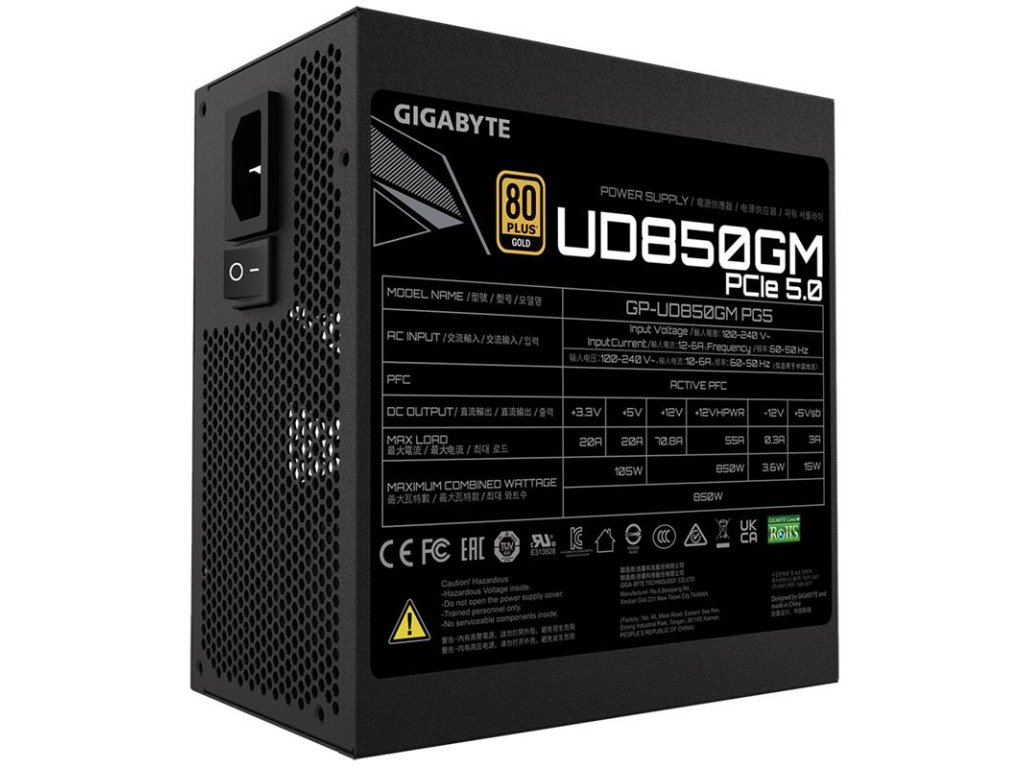

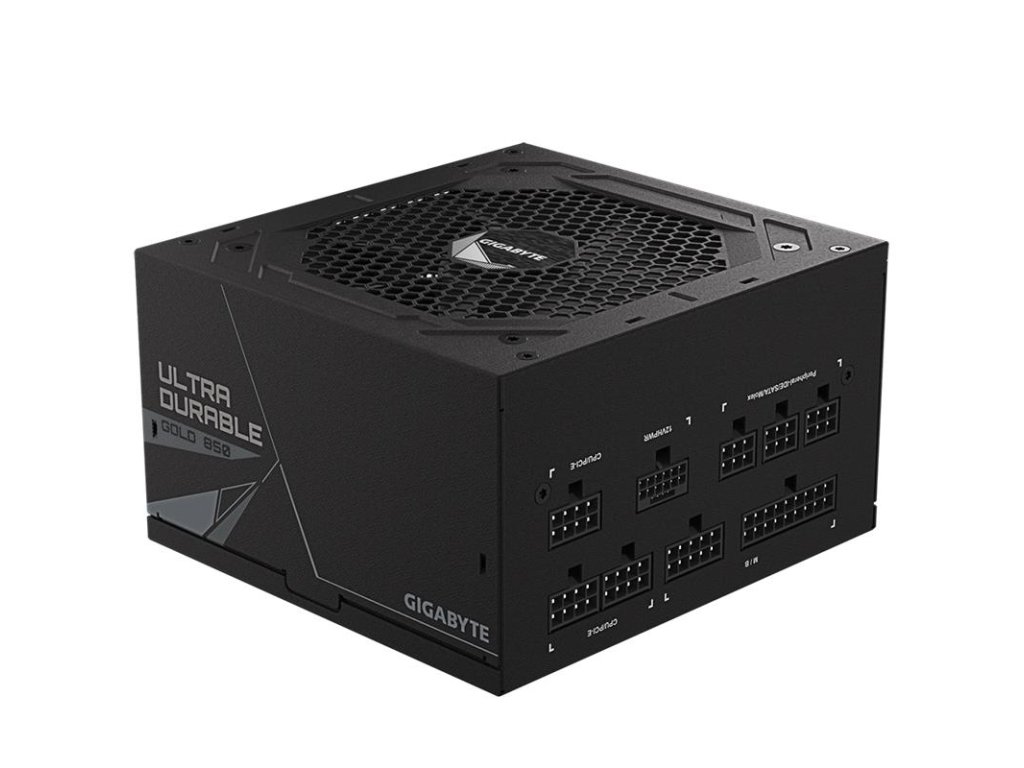

GIGABYTE zdroj UD850GM, 850W, 80plus gold, modular, 120 mm fan GP-UD850GM PG5 Gigabyte
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
High-quality native 16-pin cable supports 600W output
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)
Model
GP-UD850GM PG5
Type
Intel Form Factor ATX 12V
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
850W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black

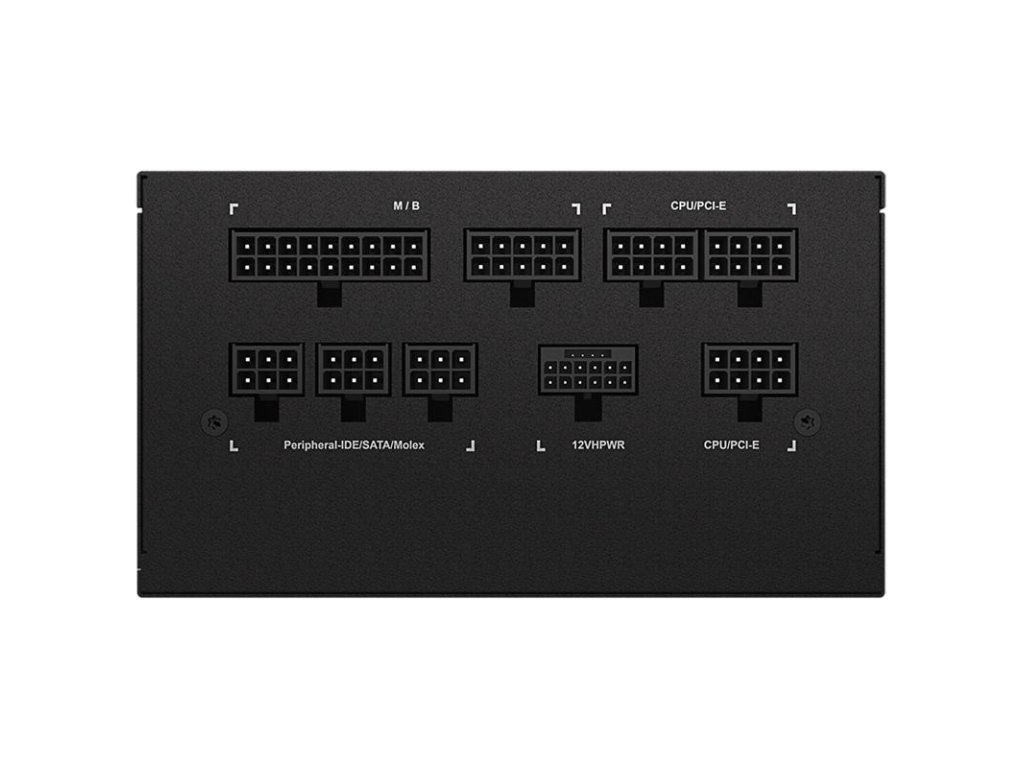

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
High-quality native 16-pin cable supports 600W output
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)
Model
GP-UD850GM PG5
Type
Intel Form Factor ATX 12V
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
850W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Dodatočné parametre
| Kategória: | Zdroje |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 2.66 kg |
| EAN: | 0810075655469 |
