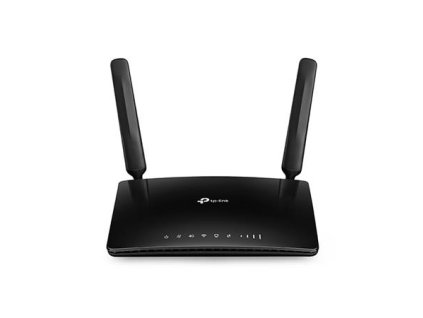

TP-Link Archer MR600 4G LTE Cat6 AC1200 Gb Router TP-link

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Archer MR600

TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*

Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB

Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas

Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network



HARDWARE FEATURES

Interface 1 × 10/100/1000 Mbps LAN/WAN Port

3 × 10/100/1000 Mbps LAN Ports

1 × Micro SIM Card Slot

Button WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button

External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A

Output parameter 12VDC 1.5A

Dimensions ( W x D x H ) 9.0×6.3×1.5 in ( 229×160×37 mm)

Antenna 2 × Detachable 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency 2.4 GHz and 5 GHz

Signal Rate 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity 5 GHz: 11a 54M: -74 dBm

11ac HT20: -66 dBm

11ac HT40: -63 dBm

11ac HT80 : -59 dBm

11n HT20: -73 dBm

11n HT40: -70 dBm

2.4 GHz: 11g 54M: -74 dBm

11n HT20: -72 dBm

11n HT40: -69 dBm

Transmit Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service Bandwidth Control

Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management TP-Link Cloud, Local Management, Remote Management

DHCP Server, DHCP Client List, Address Reservation

Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS TP-Link, DynDns, NO-IP

VPN PPTP VPN, IPSec VPN , OpenVPN

Access Control Parental Control, Local Management Control

Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,

IP and MAC Address Binding

Protocols IPv4, IPv6

Guest Network 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

OTHERS

Certification CE, RoHS

Package Contents 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Micro SIM Card

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
