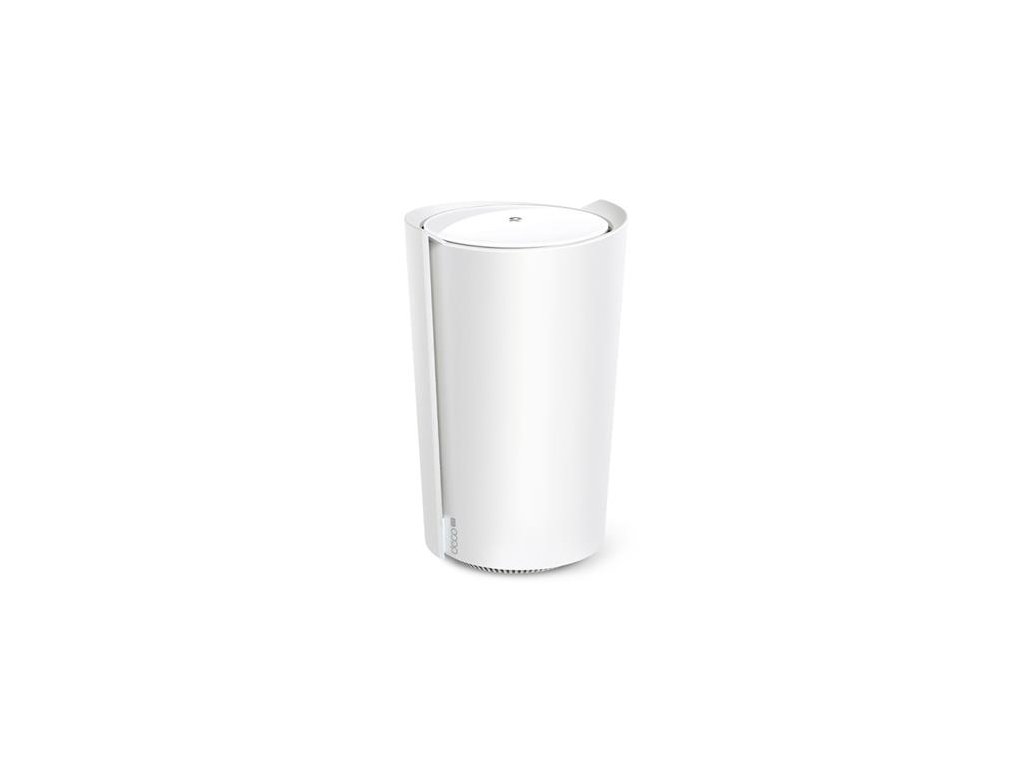

TP-Link AX3000 Smart Mesh WiFi Deco X50-5G(1-pack) TP-link

WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX3000

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 1-3 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage



4× LTE/5G internal antennas + 2× Wi-Fi internal antennas

+ 2× external antenna interface

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity High

Dual-Band

Distribute devices to different bands for optimal performance



MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



OFDMA

Simultaneously communicates with multiple WiFi 6 clients



4 Streams

More than enough bandwidth for connected devices

Working Modes 5G/4G Router, Router, Access Point

SECURITY

Network Security SPI Firewall

Access Control



HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption WPA-Personal

WPA2-Personal

WPA3-Personal

HARDWARE

Ports and Connections 1× 2.5 Gigabit port + 2× 1 Gigabit ports

(WAN/LAN auto-sensing)



Compatibility

5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78

4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28

4G TDD-LTE: B38/B40/B41/B42/B43

3G: B1/B5/B8

SOFTWARE

Protocols IPv4

IPv6

Service Kit HomeShield

Learn More>

WAN Types Dynamic IP

Static IP

PPPoE

L2TP

PPTP

Quality of Service HomeShield QoS

QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

Management Deco App

TEST DATA

WiFi Transmission Power CE:

?20 dBm (2.4 GHz),

?23 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H) 8.3 × 5.1 × 4.8 in

(210.5 × 130 × 123mm)

OTHERS

Certification RoHS, CE, RCM

Package Contents 1-pack

1 Deco X50-5G unit

1 RJ45 Ethernet Cable

1 Power Adapter

Quick Installation Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90%RH

Storage Humidity: 5%~90%RH
