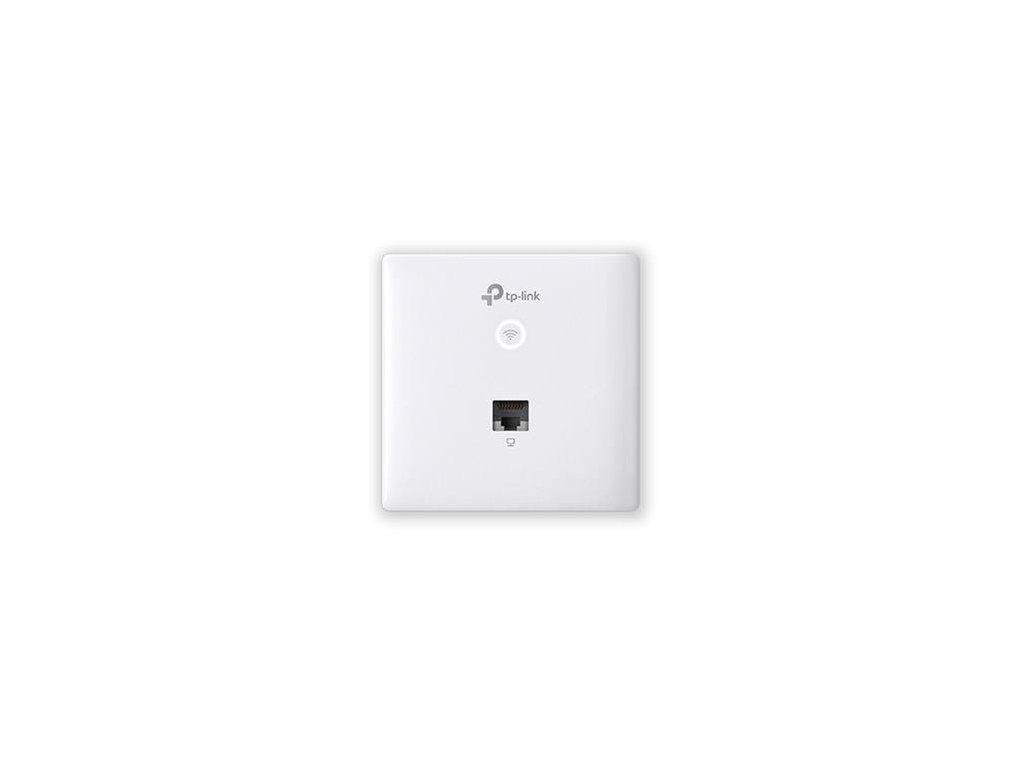

TP-Link EAP230-Wall AC1200 wall-plate AP Omada SDN TP-link

HARDWARE FEATURES

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Physical Security Lock No

Button LED/Wi-Fi Button, RESET

Power Supply 802.3af/802.3at PoE

Power Consumption 7 W

Dimensions 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna 2 Dual-Band Antennas

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 3.6 dBi

Mounting Wall Plate Mounting

Hardware Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11n/g/b/ac

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 867 Mbps

• 2.4 GHz: Up to 300 Mbps

Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Load Balance

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

• MU-MIMO

• Band Steering

• Beamforming

Wireless Security • Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Local LAN port based VLAN

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power CE:

• ?20 dBm (2.4 GHz, EIRP)

• ?23 dBm (5 GHz, EIRP)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

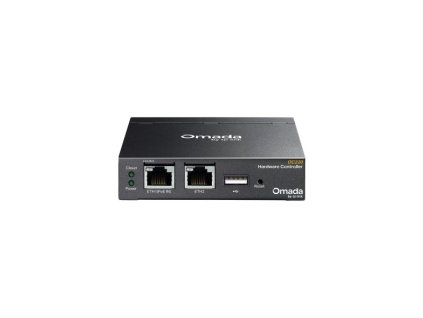

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE, RoHS

Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall

• Installation Guide

• Mounting Screw

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
