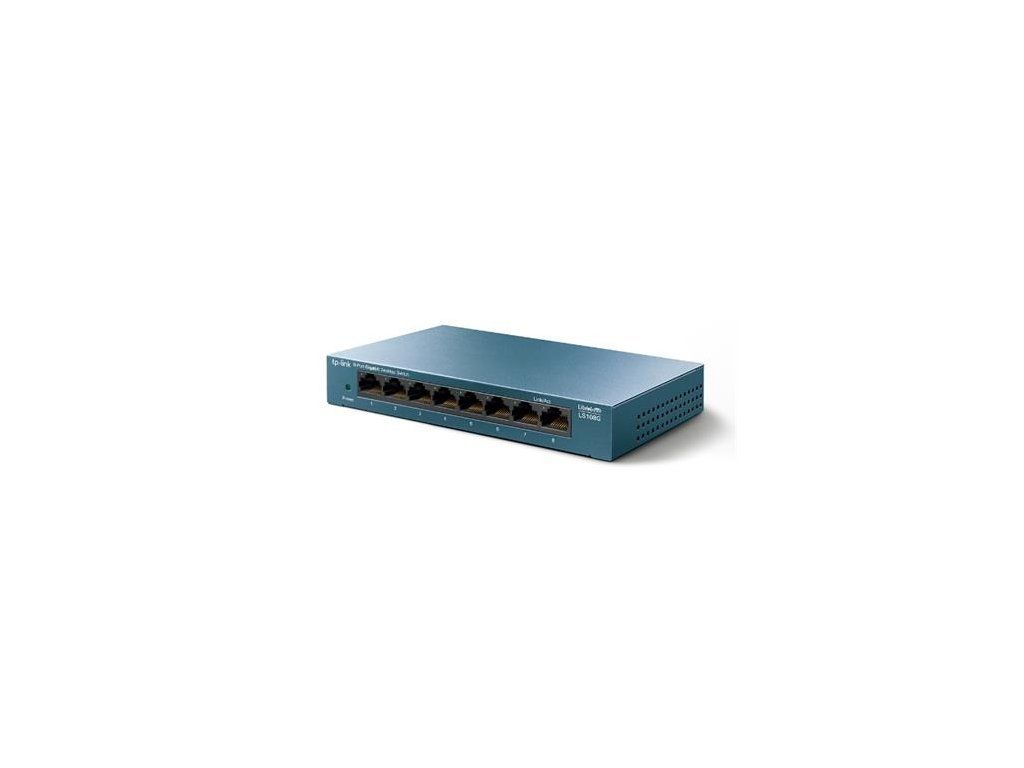

TP-Link LS108G 8xGigabit Desktop Switch Fanless TP-link

Popis produktu

RJ45 s automatickou adaptací 10/100/1000Mb/s podporující Auto-MDI/MDIX
Technologie Green Ethernet šetří spotřebu energie
Řízení toku IEEE 802.3x zajišťuje spolehlivý přenos dat

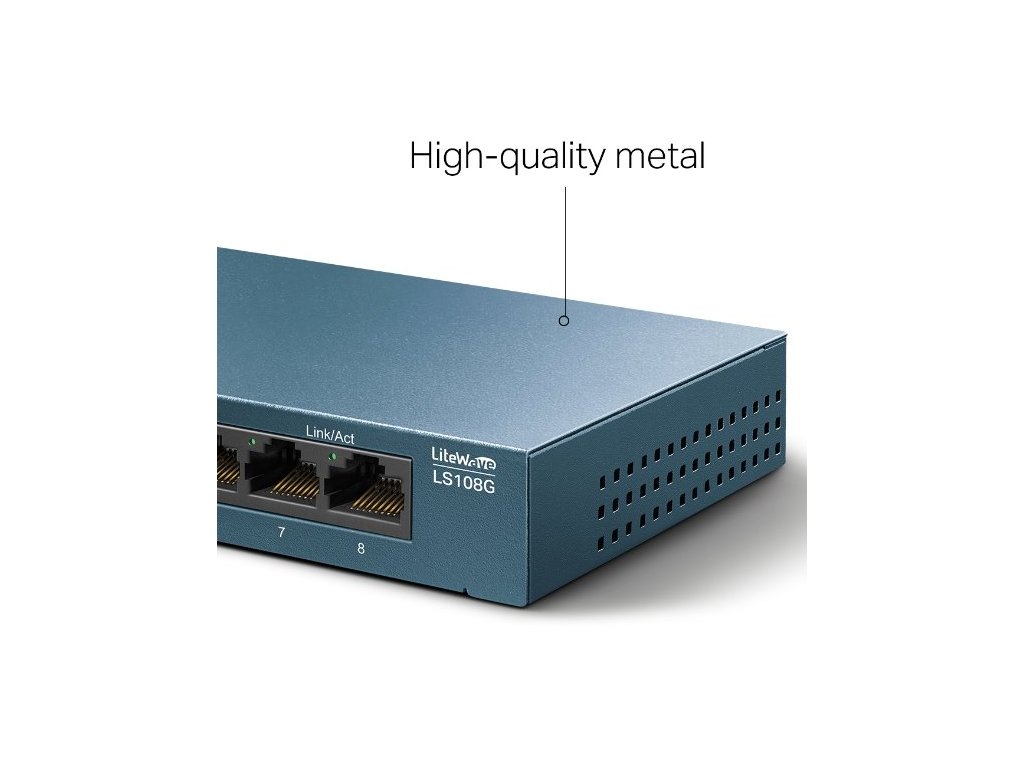

Ocelové pouzdro, desktopová konstrukce nebo konstrukce s upevněním na stěnu
Podpora 802.1p / DSCP QoS
Plug and play, bez nutnosti konfigurace

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface
8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
Max Power Consumption
3.7W(220V/50Hz)
Max Heat Dissipation
12.617 Btu/hr
PERFORMANCE
Packet Forwarding Rate
11.9 Mpps
MAC Address Table
4K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
