TP-Link SG2005P-PD 5xGb smart switch 1xPOE++4xPOE+ TP-link

Popis produktu

SG2005P-PD

5portový gigabitový inteligentný switch Omada s 1 vstupným gigabitovým portom PoE++ a 4 výstupnými portami PoE+

Vzdialenosť prenosu napájania PoE až 200 m: Štandardná priechodná PoE zdvojnásobuje dĺžku prenosovej vzdialenosti medzi zdrojom napájania PoE a zariadeniami zo 100 m na 200 m bez toho, aby dochádzalo k strate gigabitových rýchlostí, a preto je skvelou voľbou pre dohľadové kamery a prístupové body vzdialenosť.

1 vstupný gigabitový port PoE++ a 4 výstupné porty PoE+: Podporuje rozpočet výstupného napájania PoE až 64 W / 44 W / 19 W / 6 W pri napájaní 802.3bt Type 4 (90 W), respektíve 802.3bt Type 3 (60 W), 802. at a 802.3af PoE.**

Odolnosť proti poveternostným vplyvom: Puzdro s krytím IP55 – vodotesné, prachuvzdorné a odolné voči UV žiareniu. Prevádzkové teploty od -40 do 60 ° C a ochrana pred bleskom 4 kV zaisťujú stabilnú prevádzku aj za nepriaznivých vonkajších podmienkach.

Jednoduchá inštalácia: Pomocou dodaných montážnych sád zariadenie ľahko pripevníte na stenu alebo na stožiar tak, aby dané miesto vyhovovalo vašim potrebám.

Centralizovaná cloudová správa: Integrácia s platformou Omada SDN umožňuje cloudový prístup, vzdialenú správu a správu niekoľkých lokalít.

Funkcie s pridanou hodnotou uľahčujú používanie v miestach inštalácie: statické smerovanie, zoznam riadenia prístupu (ACL), QoS a VLAN.



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

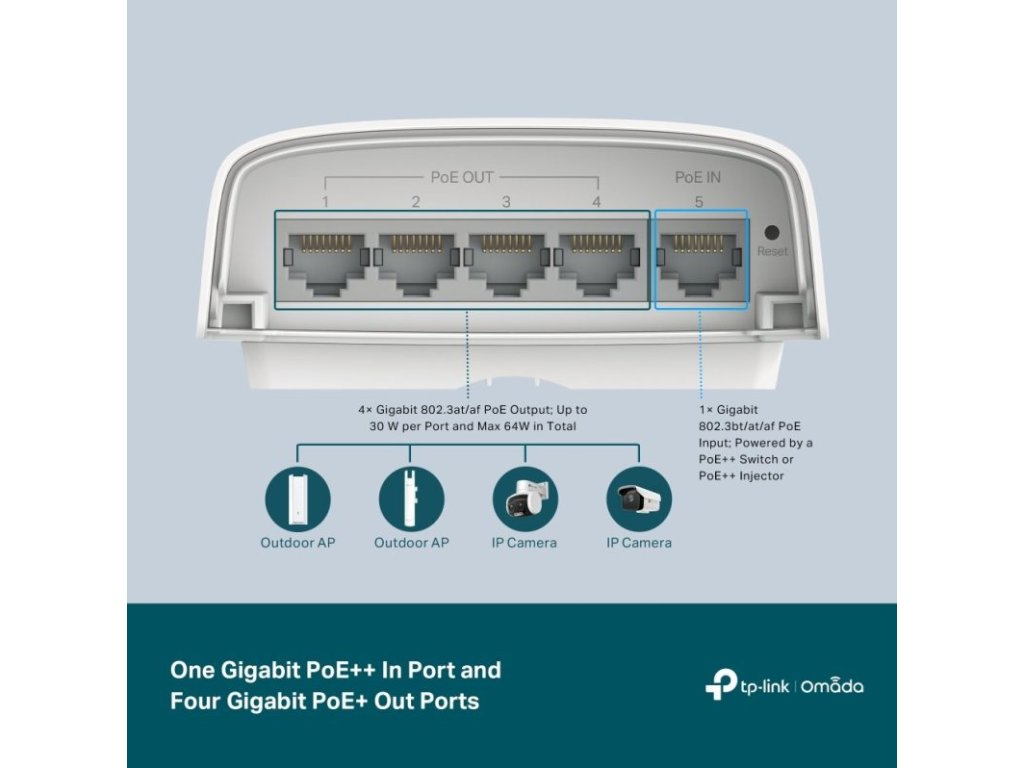

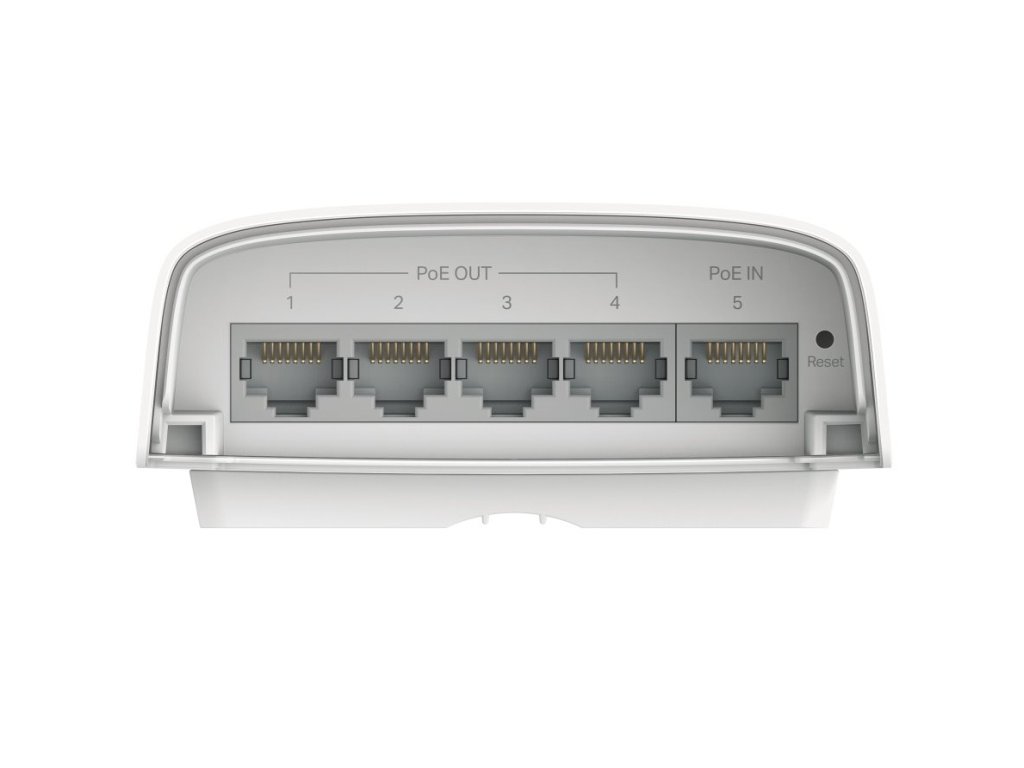

Interface • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)

• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Power Supply Obtain Power from 802.3af/at/bt PoE Source

PoE Ports (RJ45) • PoE In Port: Port 5, Compliance with 802.3af/at/bt

• PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE

• PoE Power Budget:

-64 W when powered by 802.3bt Type 4 (90 W)

-44 W when powered by 802.3bt Type 3 (60 W)

-19 W when powered by 802.3at

-6 W when powered by 802.3af

Dimensions ( W x D x H ) 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)

Max Power Consumption 71.5 W (when powered by 802.3bt Type 4 (90 W))

Max Heat Dissipation 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))

PERFORMANCE

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.44 Mpps

MAC Address Table 8k

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port/Flow-based Rating Limit

• Smoother Performance

• Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features • 32 IP Interfaces

- Support IPv4/IPv6 Interface

• Static Routing

- 32 IPv4/IPv6 Static Routes

• DHCP Server

• DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

• DHCP L2 Relay

• Static ARP

• Proxy ARP

• Gratuitous ARP

• Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports

per group

• Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Flow-Based

- Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)

• 802.1ab LLDP/ LLDP-MED

L2 Multicast • 511 IPv4, IPv6 shared multicast groups

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- Static Group Config

• Multicast VLAN Registration (MVR)

• Multicast Filtering

• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

• Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

IPv6 Support • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

VLAN • VLAN Group

- Max. 4K VLAN Groups

• 802.1Q tag VLAN

• MAC VLAN: 12 Entries

• Protocol VLAN

• GVRP

• Voice VLAN

Access Control List • Support up to 230 entries

• Time-Range

- Time Slice

- Week Time-Range

- Absolute Time-Range

- Holiday

• Time-based ACL

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

- Source IP

- Destination IP

- IP Protocol

- TCP Flag

- TCP/UDP Source Port

- TCP/UDP Destination Port

- DSCP/IP TOS

• IPv6 ACL

• Combined ACL

• Rule Operation

- Permit/Deny

• Policy Action

- Mirror

- Rate Limit

- Redirect

- QoS Remark

• ACL Rules Binding

- Port Binding

- VLAN Binding

• Actions for flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

Security • AAA

• 802.1X

- Port-based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Support Radius authentication and accountability

• IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

• IP Source Guard

- 253 Entries

- Source IP+Source MAC

• IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

• DoS Defend

• Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control

MIBs • MIB II (RFC1213)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIBs

• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App Yes, through

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes, through

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through telnet

• SNMPv1/v2c/v3

• SNMP Trap/Inform

• RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents • SG2005P-PD

• Mounting Kits

• Installation Guide

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: -40 to 60 °C (-40 to 140 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
