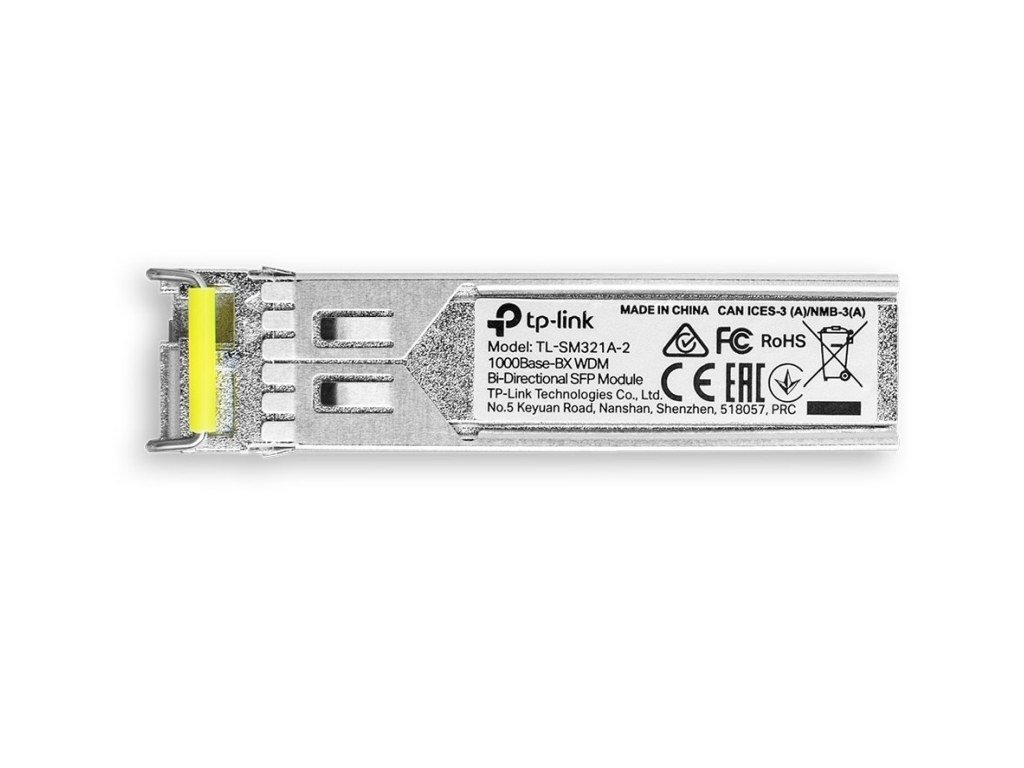

TP-Link TL-SM321A-2 1000Base-BX SM WDM Bi-Direct. SFP, 2km TP-link

Popis produktu

SM321A-2 (TL-SM321A-2)

Omada 1000Base-BX WDM obojsmerný modul SFP

Prijíma najnovší štandard 1000Base-BX

Prenosová vzdialenosť až 2 km v 9/125 µm SMF (Single-Mode Fiber)

Kompatibilné s Small Form Pluggable Multi-Source Agreement (SFP-MSA)

Podporuje digitálne diagnostické monitorovanie (DDM)

Podporuje Hot Swap



MEDIA CONVERTER & MODULE

Standards and Protocols IEEE 802.3z, TCP/IP

Wave Length • TX: 1550 nm

• RX: 1310 nm

Dimensions (W*D*H) 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)

Power Supply 3.3 V

Safety & Emission FCC, CE

Cabel Single-Mode Fiber

Fiber Type 9/125 µm Single-Mode

Max. Cable Length 2 KM

Data Rate 1.25 Gbps

Port Type LC Simplex

Hardware Features • DDM

• SFP-MSA

• Hot Swappable

Package Contents • SM321A-2

• Installation Guide

Environment • Operating Temperature: 0–70 °C (32–158 °F)

• Storage Temperature: -40–85 °C ( -40–185 °F)

• Operating Humidity: 10–90% RH, Non-Condensing

• Storage Humidity: 5–90% RH, Non-Condensing
