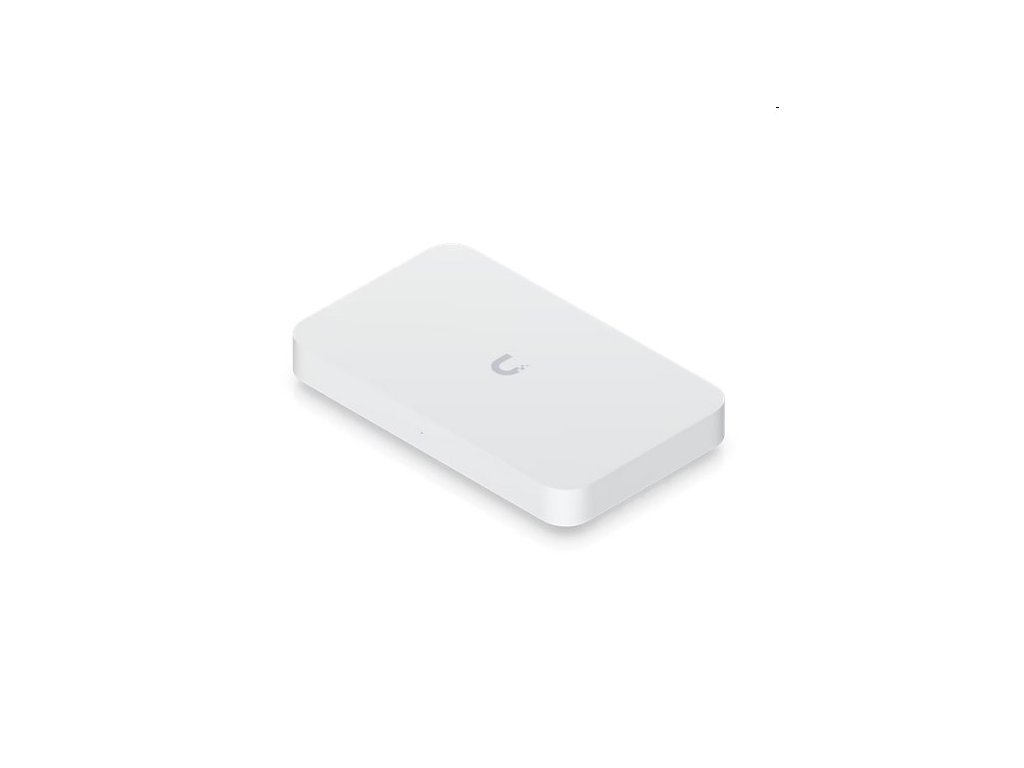

Ubiquiti Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch UXG-Fiber

Desktopový 10Gbps router s integronaným PoE switchem a 2,5Gbps porty

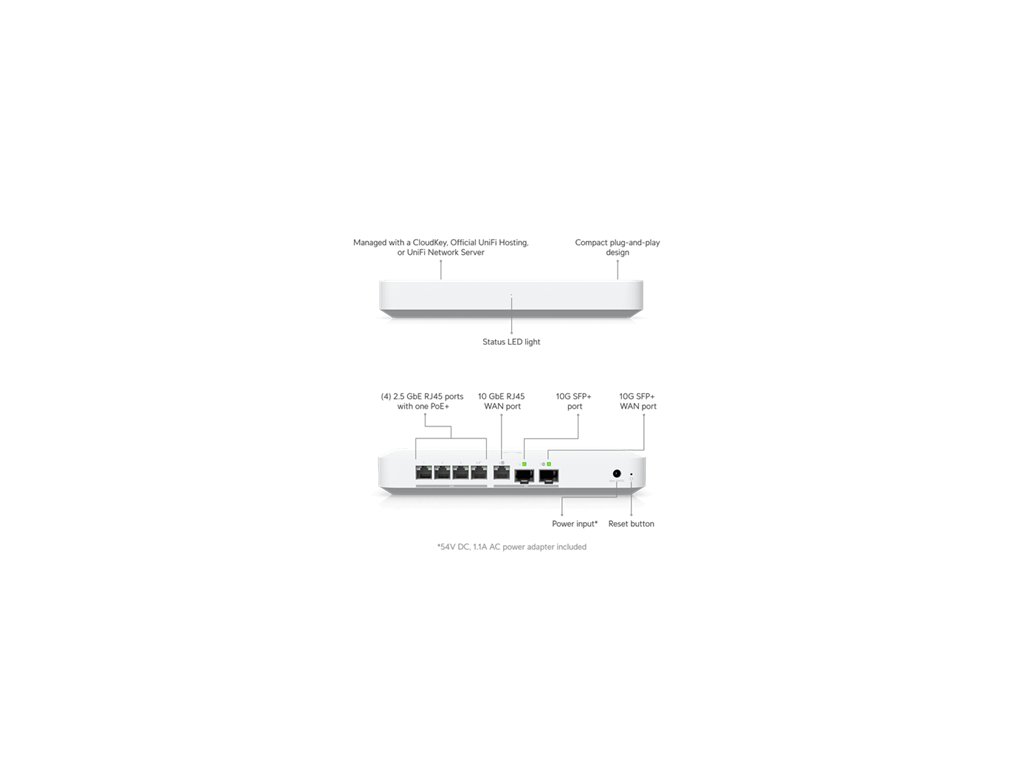

• 5 Gbps routing with IDS/IPS

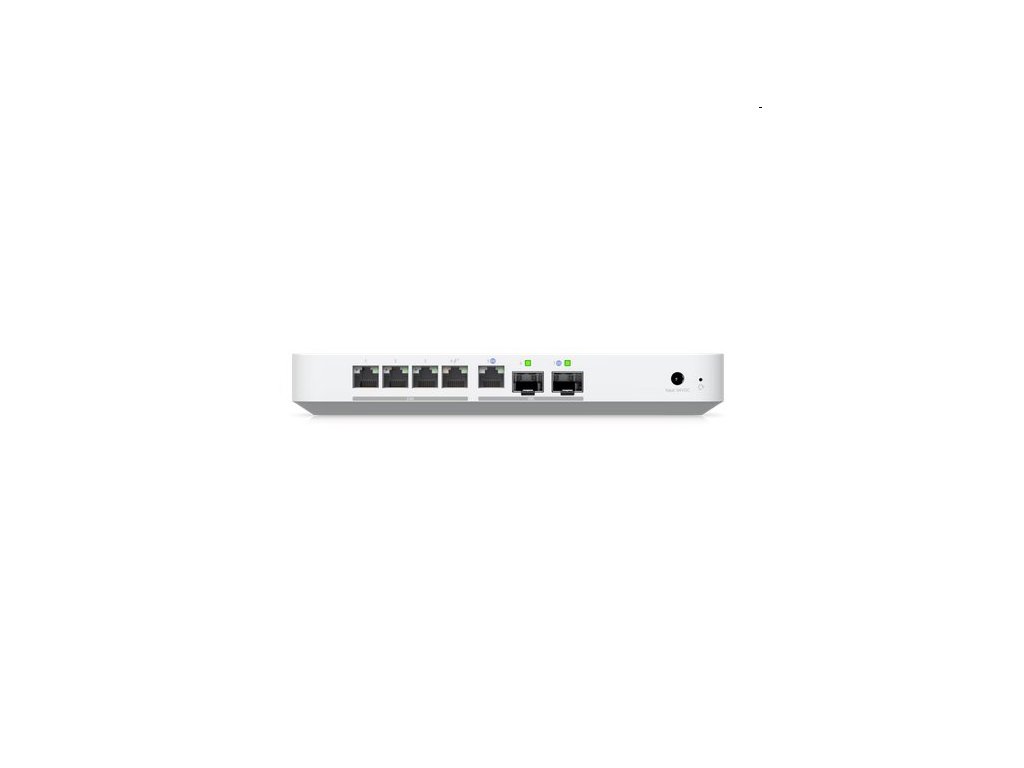

• (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port


• (1) 10G SFP+ LAN port


• Integrated 4-port switch with (1) PoE+ port


• Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server

Overview

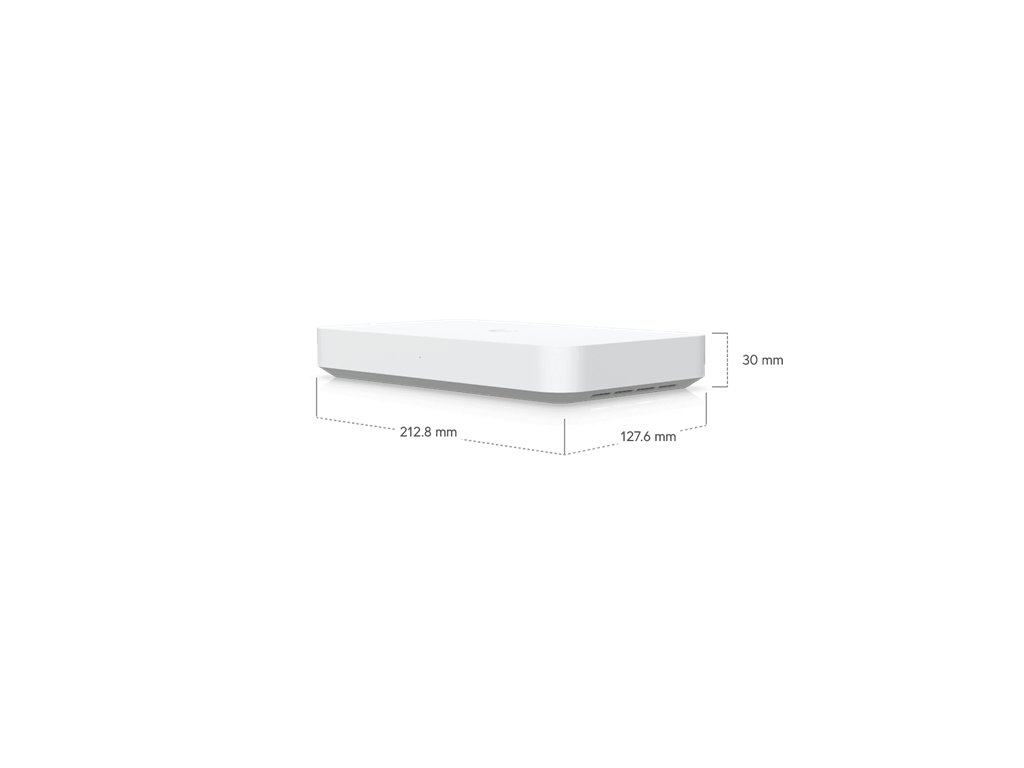

Dimensions 212.8 x 127.6 x 30 mm

Default WAN Ports (1) 10G SFP+ (1) 10 GbE RJ45

LAN Ports (1) 10G SFP+ (4) 2.5 GbE RJ45

IDS/IPS Throughput 5 Gbps

Form Factor Compact desktop

Security

Stateful Firewall Yes

Application-Aware Layer 7 Firewall Yes

DPI & Traffic Identification Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes

Content Filtering Yes

Intrusion Prevention (IPS/IDS) Yes

Ad Blocking Yes

IDS/IPS Signatures 55,000+ With CyberSecure

VPN & SD-WAN

License-Free SD-WAN Yes

Site-to-Site VPN

Site Magic Yes

IPsec Yes

OpenVPN Yes

VPN Server

Teleport Zero-Configuration VPN Yes

WireGuard Yes

OpenVPN Yes

L2TP Yes

VPN Client

OpenVPN Yes

WireGuard Yes

Networking

Multi-WAN Load Balancing Yes

Dynamic Routing OSPF Yes

Advanced QoS Yes

Multicast DNS (mDNS) Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes

Integrated RADIUS Server Yes

RADIUS over TLS (RadSec) Yes

Additional Internet Failover with UniFi LTE Backup Yes

Internet Quality and Outage Reporting Yes

MAC Address Table Size 4,000

Hardware

PoE Budget 30W

Max. PoE Wattage per Port by PSE PoE+ 30W

Voltage Range PoE Mode 50—57V

Max. Power Consumption 25W (Excluding PoE output)

Power Method DC jack (54V DC/1.1A)

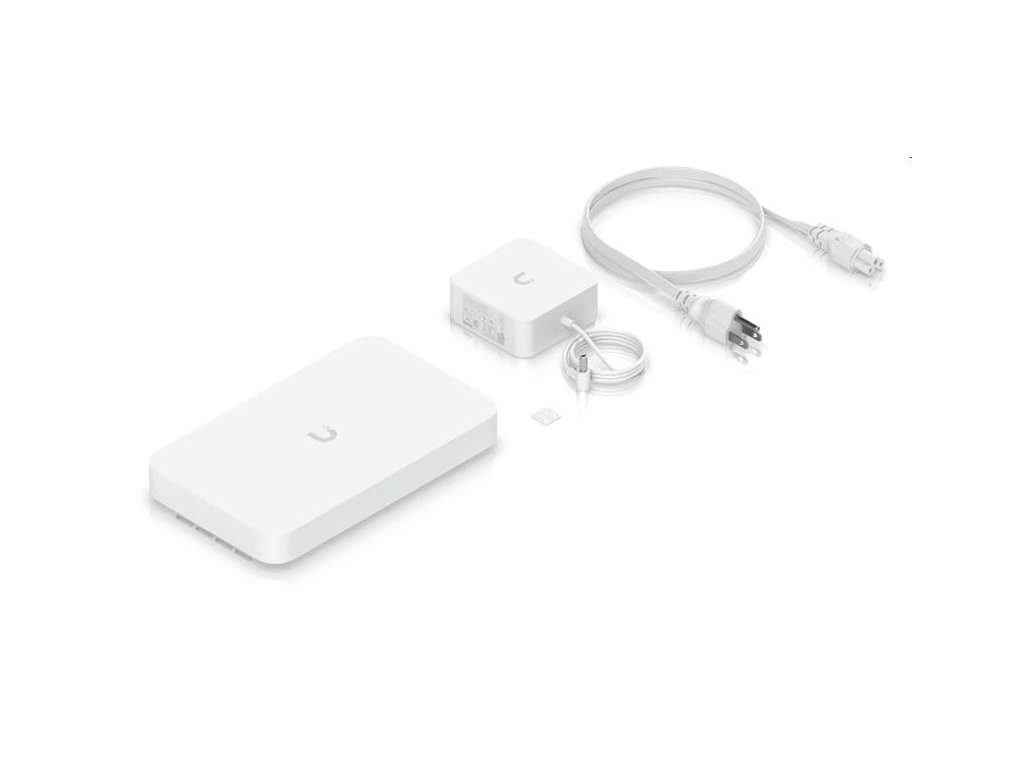

Power Supply 54V DC/1.1A (Adapter included)

Supported Voltage Range 100—240V AC

Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz

System Memory 2 GB

Weight 605 g (1.3 lb)

Enclosure Material Polycarbonate

Management Ethernet + Bluetooth

LEDs

Ethernet Yes

SFP+ Yes

Systém Yes

ESD/EMP Protection Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature 0 to 40° C (32 to 104° F)

Ambient Operating Humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Button (1) Factory-reset
