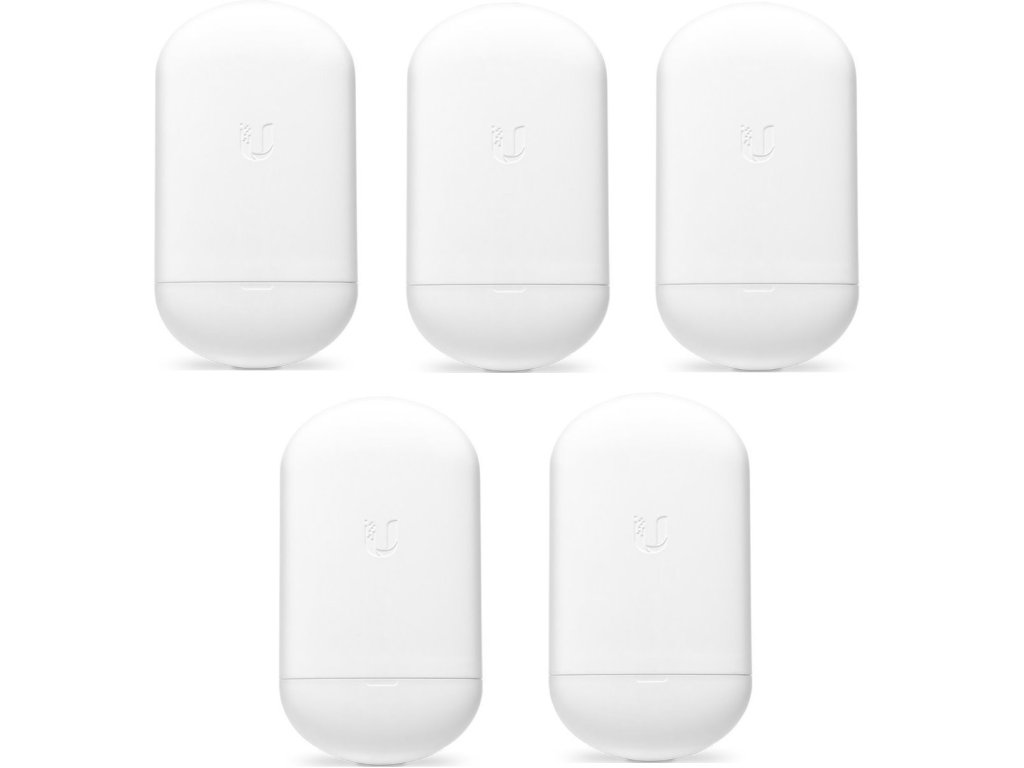

Ubiquiti NanoStation 5AC Loco, NS-5ACL-5, Loco5AC, 5-pack Loco5AC-5

Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.

5 GHz, 10+ km link range

450+ Mbps throughput

Dedicated spectral analysis radio

Technical Specifications

Mechanical

Dimensions 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3")

Weight 180 g (6.4 oz)

Enclosure material UV-stabilized plastic

Mounting Pole mounting kit (Included)

Hardware

Networking interface (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.3A gigabit PoE supply (Not included)

Supported voltage range 22–27V DC

Max. power consumption 7W

LEDs Power, Ethernet, (4) signal strength

Ambient operating temperature -40 to 70° C (-40 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

System

Gain 13 dBi

Channel bandwidths 10/20/30/40/50/60/80 MHz

Cross-pol isolation 20 dB min.

Max. VSWR 1.8:1

Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

Polarization Dual linear

Operating Frequency (MHz)

Worldwide 5150-5875 MHz

USA

U-NII-1 5150-5250 MHz

U-NII-2A 5250-5350 MHz

U-NII-2C 5240-5725 MHz

U-NII-3 5725-5850 MHz



Management Radio (MHz)

Worldwide 2412 - 2472 MHz

US/CA 2412 - 2462 MHz
