Ubiquiti UBB-XG - Building-to-Building Bridge XG

60 GHz beztrátový point-to-point bridge s porty 10G SFP+ uplink pro maximální propustnost



- 500 m maximum dosah

- 60 GHz & 5 GHz dual-radio s redundancí (záložním kmitočtem 5GHz)

- (1) 10G SFP+ a (1) GbE PoE++ port

- napájení přes PoE++*

- jednoduché zaměření pomocí integrovaných LED

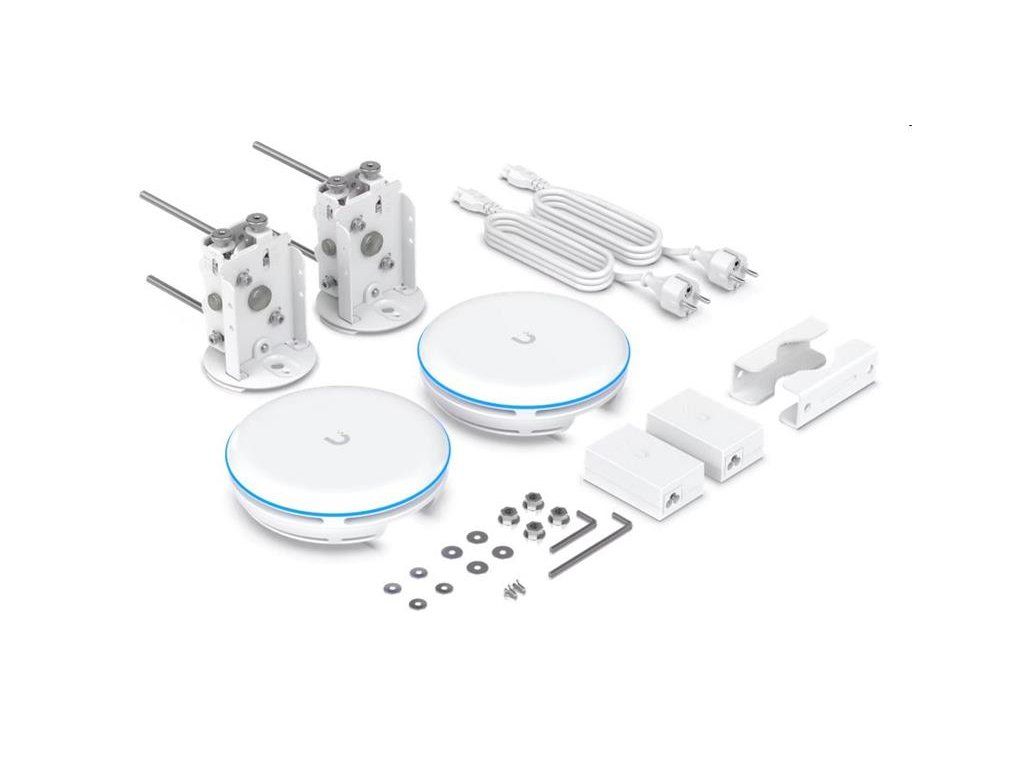

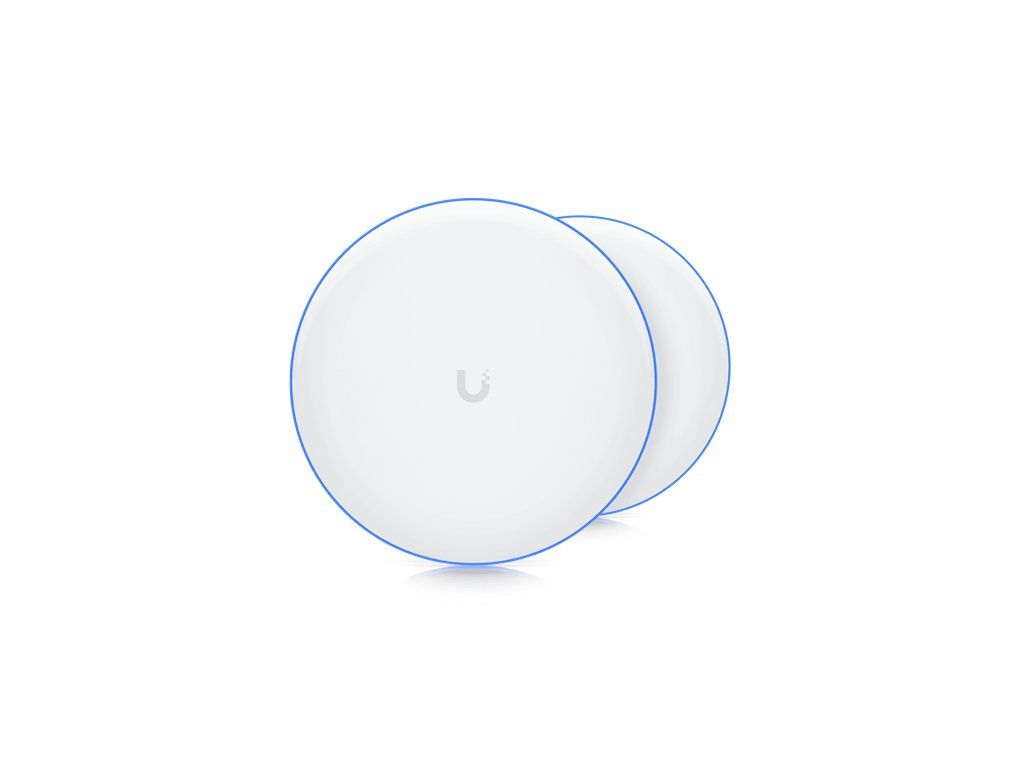

- balení obsahuje 2 zařízení - kompletní spoj

pozn: nelze nastavit samostatně a provozovat bez příslušného UniFi controlleru

*POE++ adaptér je součástí balení

Technical Specifications

Mechanical

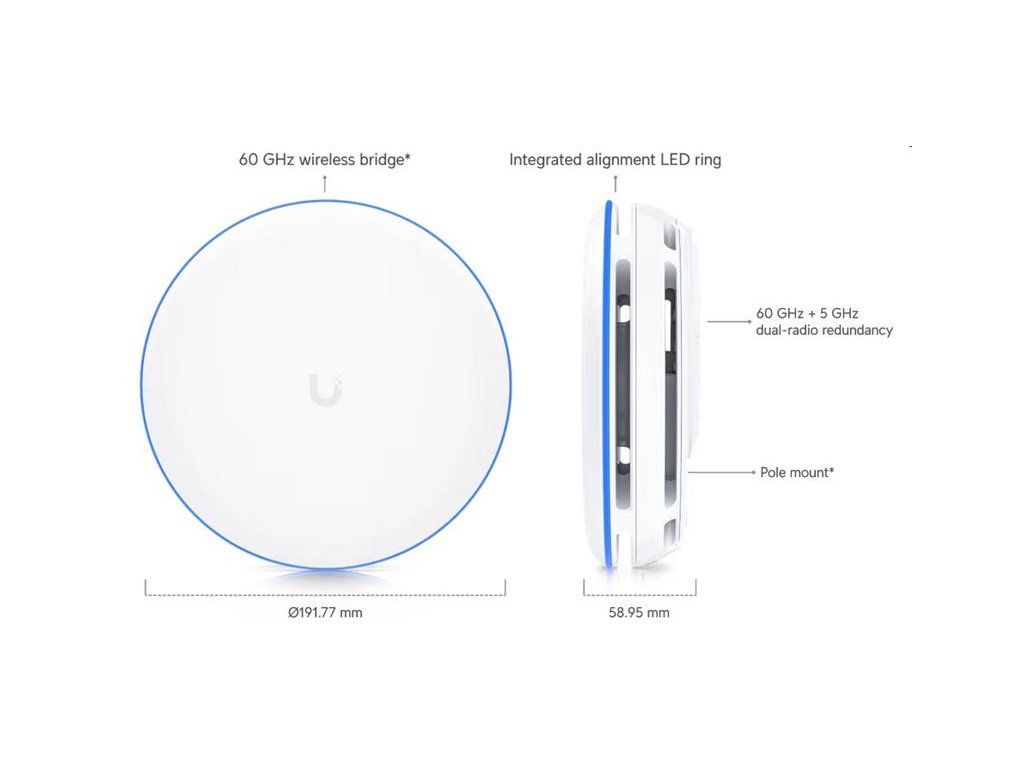

Dimensions O191.8 x 59 mm (O7.6 x 2.3")

Weight Without mount: 1.7 kg (3.8 lb)

With mount: 2.9 kg (6.3 lb)

Enclosure material Aluminum alloy, UV-resistant polycarbonate

Mount material Stainless steel

Pole mount diameter 1-2.5" on pipe outer diameter

Weatherproofing IPX6



Hardware

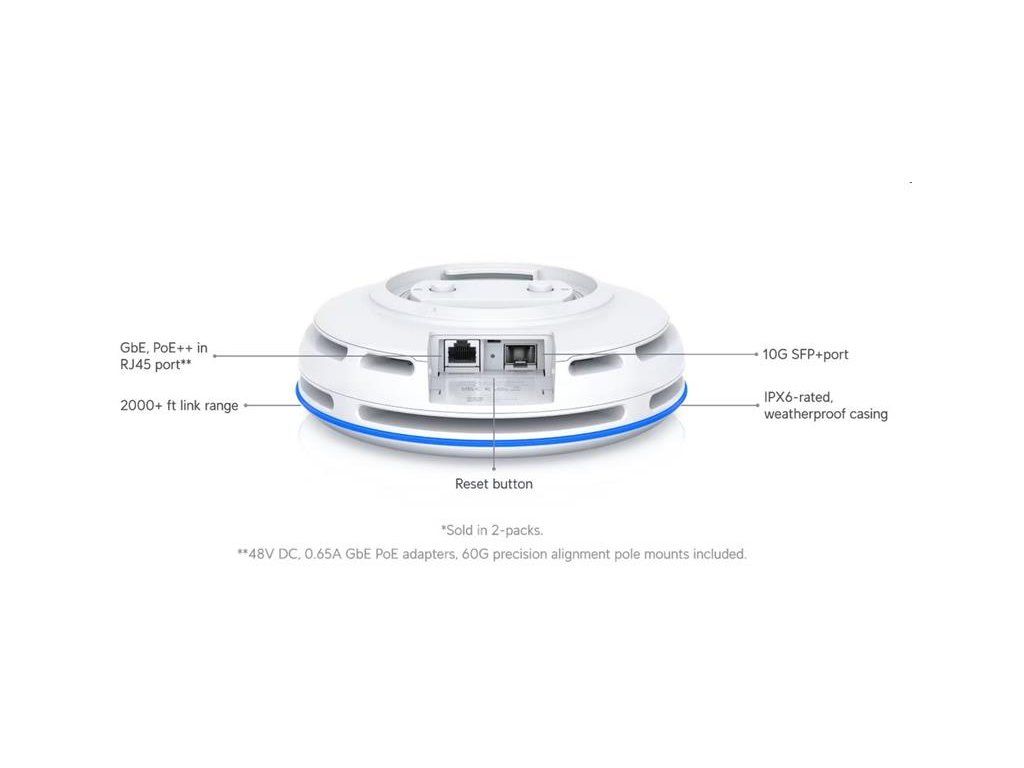

Networking interface (1) GbE RJ45 port

(1) 1/10G SFP+ port

Management interface Ethernet

Bluetooth

Power method PoE++

                      Passive PoE:

                      4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

                      2-pairs (4, 5+; 7, 8-)

Power supply UniFi PoE switch

                     48V, 0.65A Gigabit PoE adapter (included)

Supported voltage range 48V DC ± 10%

Max. power consumption 31.2W

Max. TX power

2.4 GHz  ---

5 GHz  23 dBm

6 GHz  ---

60GHz  16dBm



MIMO

2.4 GHz  ---

5 GHz    2x2

6 GHz   ---



Max. data rate

2.4 GHz   ---

5 GHz   866.6 Mbps (BW80)

6 GHz  ---

60GHz   6 Gbps (60 GHz)



Antenna gain

2.4 GHz   ---

5 GHz   14 dBi

6 GHz  ---

60GHz   21dBi



Maximum range 500 m (1,640 ft)

LEDs R/G/B

Button Factory-reset

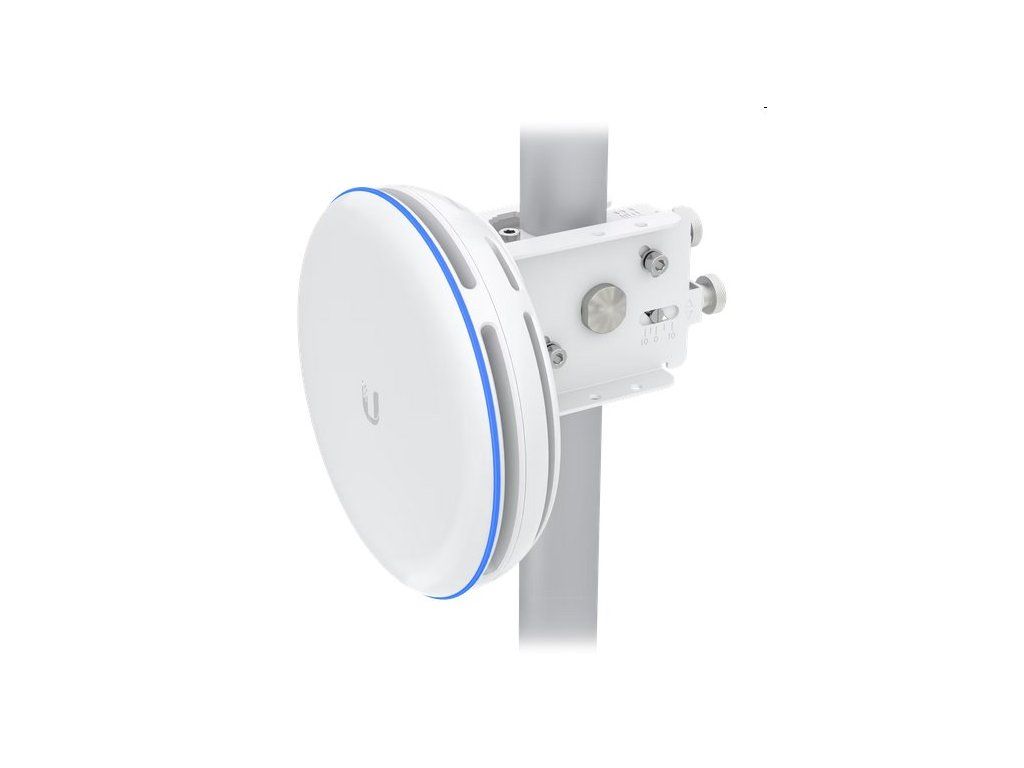

Mounting 60G precision alignment pole mount (Included)

Ambient operating temperature -40 to 55° C (-40 to 131° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE, terragraph



Software

WiFi standards 802.11a/b/g/n/ac

Wireless security WPA2 AES (Always On)

Operating modes PtP

VLAN Management VLAN only

RF

Operating frequency* 57 to 66 GHz

*Dependent on regional regulations.

Channel bandwidth 2,160/4,320 MHz (Channel Bonding Enabled)

Operating channels* 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz

*Dependent on regional regulations.

Backup RF

Operating frequency*

US/CA

U-NII-1: 5,150 - 5,250 MHz

U-NII-2A: 5,250 - 5,350 MHz

U-NII-2C: 5,470 - 5,725 MHz

U-NII-3: 5,725 - 5,850 MHz

Worldwide

5,150 - 5,725 MHz

*Dependent on regional regulations.

Channel bandwidth 20/40/80 MHz



Supported Data Rates (Mbps)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40))

802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
