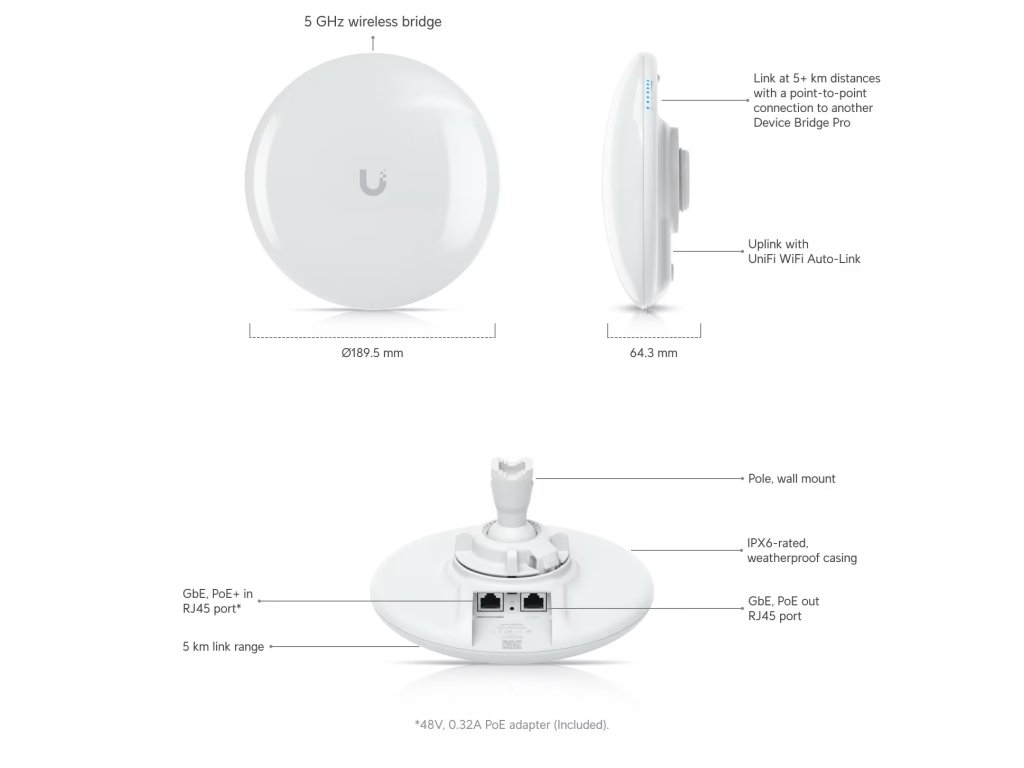

Ubiquiti UDB-Pro - Device Bridge Pro

Bezdrátová bridge - kleint s POE napájením pro připojení zařízení do sítě UniFi WiFi, s větší anténou a dosahem až 5km.

- např. IP kamera či UniFi access reader

- dosah až 5km

Overview

Dimensions   O189.5 x 64.3 mm

WiFi Standard   WiFi 5

Spatial Streams   2

Coverage Area   5 km (3.1 mi)

Mounting Locations   Wall, pole

Weatherproofing   IPX6

Power Method   PoE

                        PoE+ (Required for PoE output)

Performance

MIMO  5 GHz   2 x 2

Max. Data Rate   5 GHz   867 Mbps (BW80)

Antenna Gain   5 GHz   19 dBi

Max. TX Power   5 GHz   25 dBm

Max. Conducted TX Power   25 dBm (Combined)

Supported Data Rates

802.11a   6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n   6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)   6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Wireless Security   WPA2 AES (Always On)

Hardware   Max. Power Consumption   9W

Supported Voltage Range   42.5—57V DC

Networking Interface   (2) GbE RJ45 ports

Antennas   Internal

Management   (1) PoE in (PoE output not used)

                      (1) Passive PoE output

Wind Loading   69 N at 200 km/h (15.5 lbf at 125 mph)

Weight   Device: 431 g (0.95 lb)

With mount: 515 g (1.1 lb)

Mount Material    UV-stabilized polycarbonate, stainless steel

Enclosure Material   UV-resistant polycarbonate

Pole Mount Diameter    0.8–2.1" (20–53.1 mm)

Button   (1) Factory-reset

LEDs   System   Power, Ethernet, (4) signal strength

Channel Bandwidth   20/40/80 (MHz)

Certifications   CE, FCC, IC

Operating Frequency   US/CA:

                                  U-NII-1 5150 - 5250 MHz

                                  U-NII-2A 5250 - 5350 MHz

                                  U-NII-2C 5470 - 5725 MHz

                                  U-NII-3 5725 - 5850 MHz

Worldwide:  5150 - 5875 MHz

Ambient Operating Temperature   -40 to 60° C (-40 to 140° F)

Ambient Operating Humidity   5 to 95% noncondensing
