Ubiquiti UniFi Cloud Gateway Ultra (UniFi gateways podporou IPS/IDS + controller) UCG-ULTRA

Kompaktní, výkonná a multi-WAN UniFi Cloud brána s kompletní sadou bezpečnostních služeb IDS/IPS a pokročilými funkcemi směrování a zabepečení datového provozu.

Provoz na síti UniFi Network pro komplexní správu sítě.

WAN port 1x 2,5Gbps

LAN port 4x 1Gbps

integrovaný UniFi controller s aplikací UniFi Networks (až 30zařízení a až 300 klientů)

Technical Specifications



Mechanical

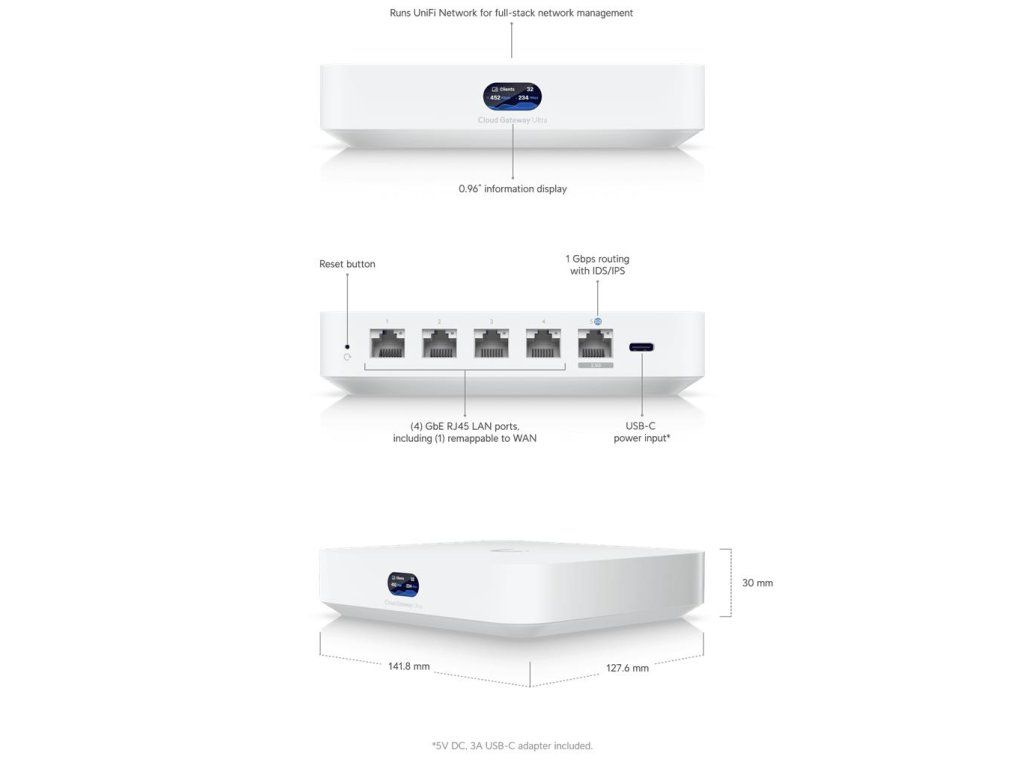

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight 520 g (1.1 lb)

Enclosure material Polycarbonate



Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory 3 GB DDR4

On-board storage 16 GB eMMC

Management interface Ethernet

Bluetooth

Networking interface LAN:

(4) GbE RJ45 ports

WAN:

(1) 1/2.5 GbE RJ45 port

IDS/IPS throughput 1 Gbps

Power method USB type C (5V DC/3A)

Supported voltage range 100–240V AC

Max. power consumption 6.2W

LCM display 0.96" status display

Button Factory reset

Ambient operating temperature -10 to 40° C (14 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC



Gateway Features

Performance

Redundant WAN with failover and load balancing

WiFi QoS with UniFi APs

Application, domain, and country-based QoS

Application and device type identification

Additional internet failover with LTE Backup

Internet quality and outage reporting

Next-generation security

Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, and ad filtering

VLAN/subnet-based traffic segmentation

Full stateful firewall

Advanced networking

License-free SD-WAN

WireGuard, L2TP and OpenVPN server

OpenVPN client

OpenVPN and IPsec site-to-site VPN

One-click Teleport and Identity VPN

Policy-based WAN and VPN routing

DHCP relay

Customizable DHCP server

IGMP proxy

IPv6 ISP support



LEDs

Ethernet White: link/activity



Application Requirements

Mobile app UniFi iOS™: Version 10.12.0 and later

UniFi Android™: Version 10.11.2 and later
