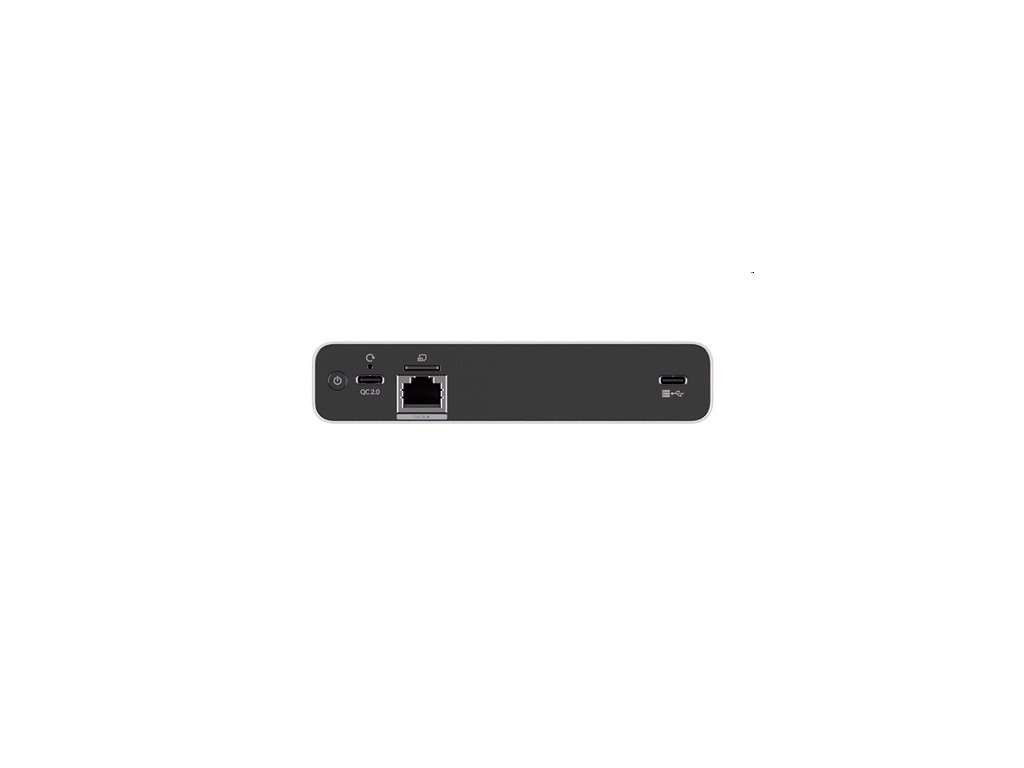

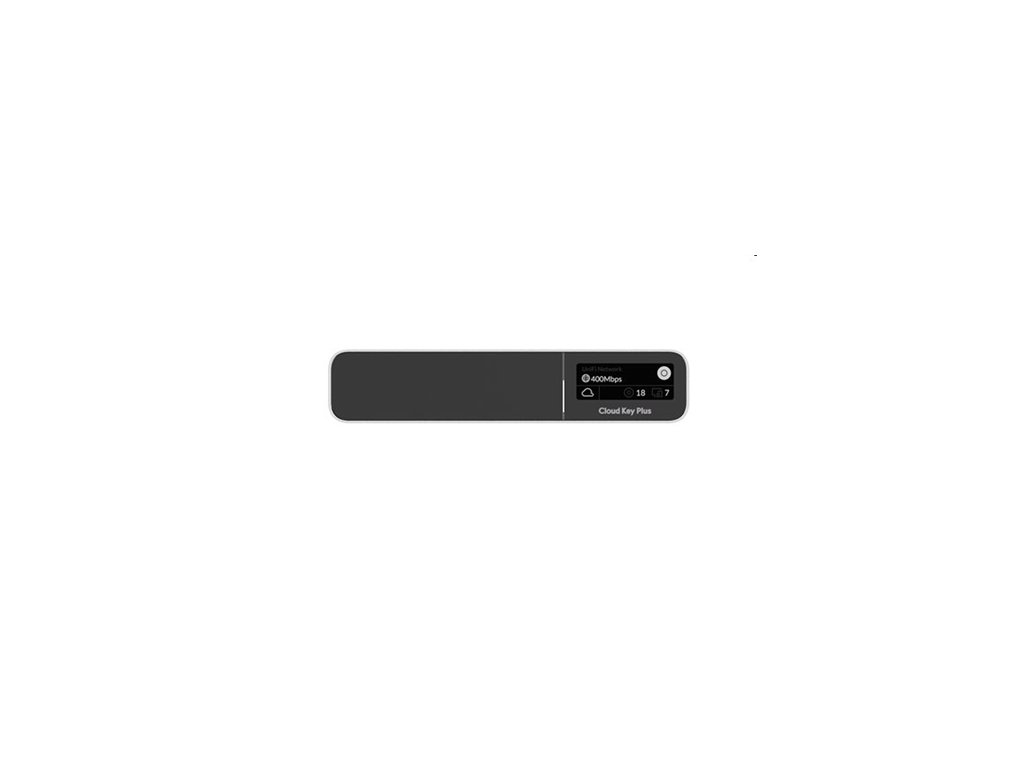

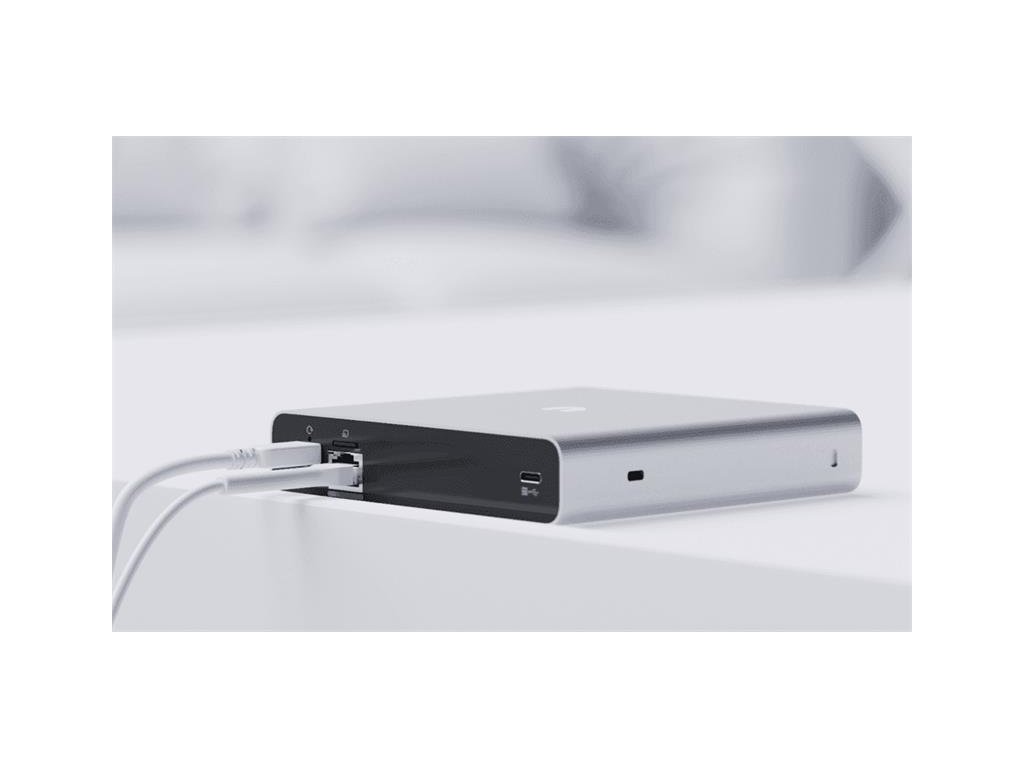

Ubiquiti UniFi CloudKey+ UCK-G2-SSD

Compact UniFi Console that connects directly to the Site Manager at https://unifi.ui.com/ for powerful, multi-application site management.

• Includes full UniFi application suite for device management


• Pre-installed 1TB SSD


• Connect and power using PoE


• Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only


• Bluetooth for instant setup

Mechanical

Dimensions 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3")

Weight 560 g (1.2 lb)

Enclosure material Anodized aluminum



Hardware

Processor Octa-core Arm® Cortex®-A53 based chip

Management interface Ethernet

Bluetooth

Networking interface (1) GbE RJ45 port

Memory 32 GB eMMC

3 GB RAM

SSD capacity 1 TB 2.5" SATA SSD (user-upgradeable*)

*CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported.

Power method PoE

Quick charge 2.0/3.0 power adapter, 9V DC, 2A

Max. power consumption 9.6W

Display 1.42" gray-scale OLED

LEDs (1) Power: white/blue

Buttons (1) Power

(1) Factory reset

Ambient operating temperature 0 to 35° C (32 to 104° F)

Ambient operating humidity 20 to 80% noncondensing

Certifications FCC, CE, IC



Capacity

HD cameras 24

2K cameras  14

4K cameras 8



Assumes the UCK-G2-SSD is dedicated to UniFi Protect only. If it’s also running UniFi Network, your maximum camera limit will be lower.
