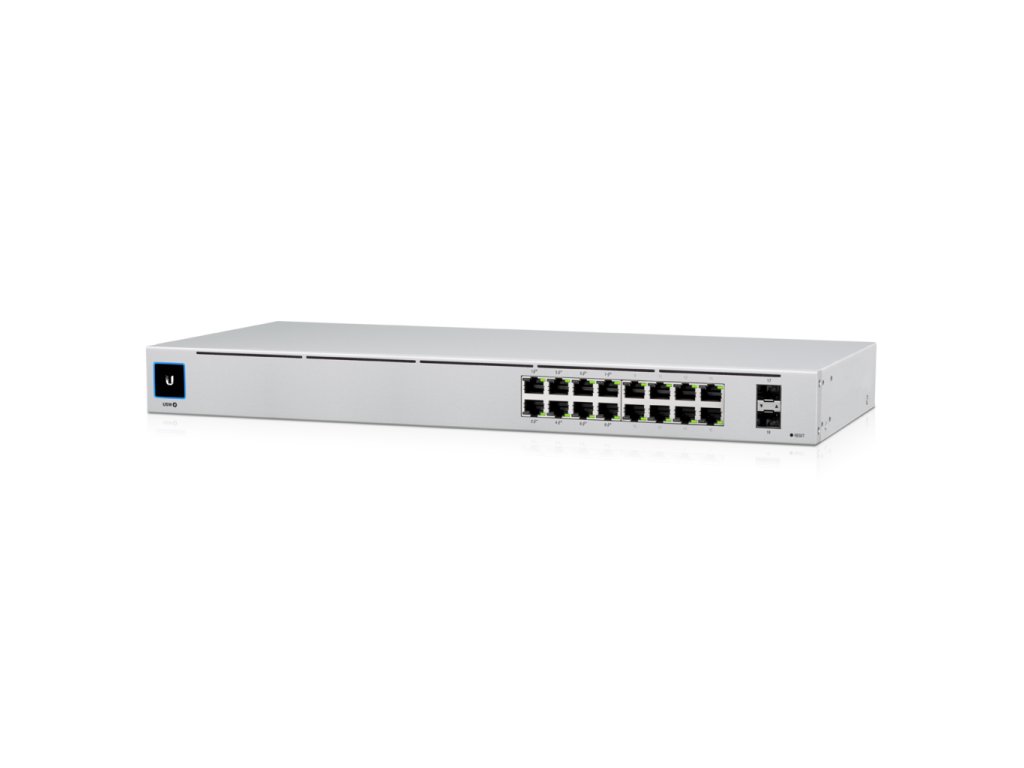

Ubiquiti UniFi Switch USW-16-POE Gen2

Technical Specifications

Mechanical

Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

Weight Without mounting brackets: 2.8 kg (6.2 lb)

With mounting brackets: 2.9 kg (6.4 lb)

Enclosure material SGCC steel



Hardware

Management interface Ethernet In-Band

Networking interface (16) GbE RJ45 ports

(2) 1G SFP ports

PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput 18 Gbps

Switching capacity 36 Gbps

Forwarding rate 26.78 Mpps

Power method Universal input, 100—240V AC, 50/60 Hz

Power supply AC/DC, internal, 60W

Supported voltage range 100—240V AC

Max. power consumption 18W (Excluding PoE output)

Total available PoE 42W

Max. PoE wattage per port by PSE  PoE+: 32W

Voltage range PoE mode  PoE: 44—57V

PoE+: 50—57V

ESD/EMP protection Air: ± 16kV, contact: ± 12kV

LCM display  (1) 1.3" touchscreen

Button Factory reset

Shock and vibration ETSI300-019-1.4 Standard

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs



LEDs

System Status

Ethernet PoE

Speed/link/activity

SFP Link/activity



Application Requirements

UniFi Network  Version 7.2.94 and later
