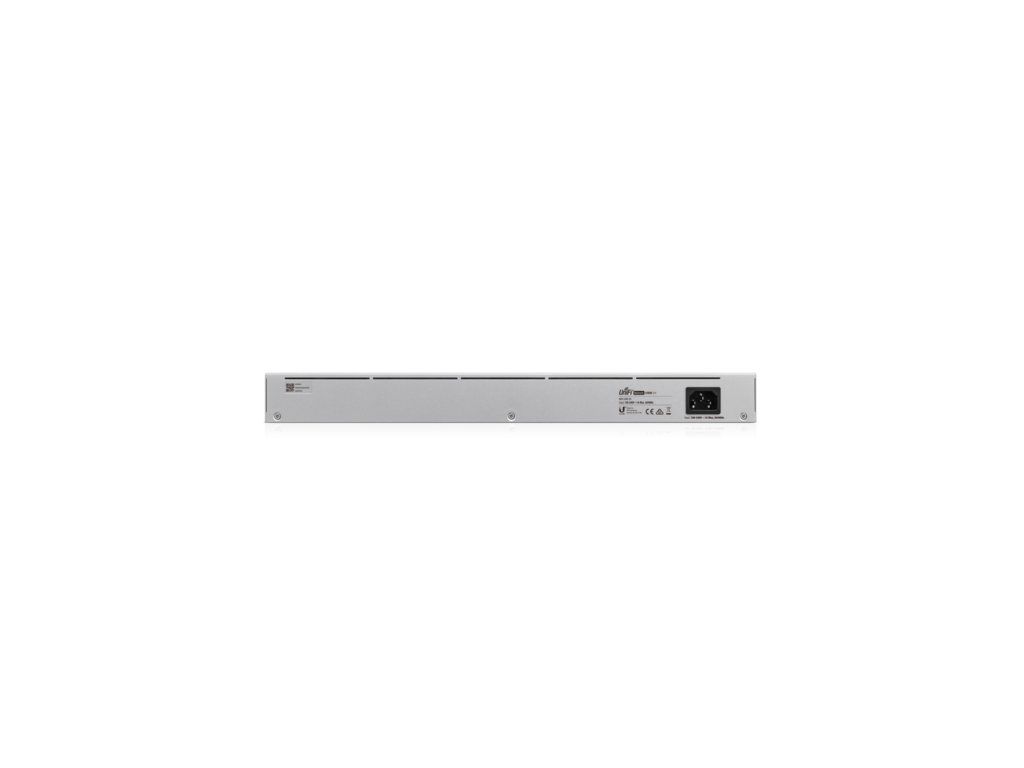

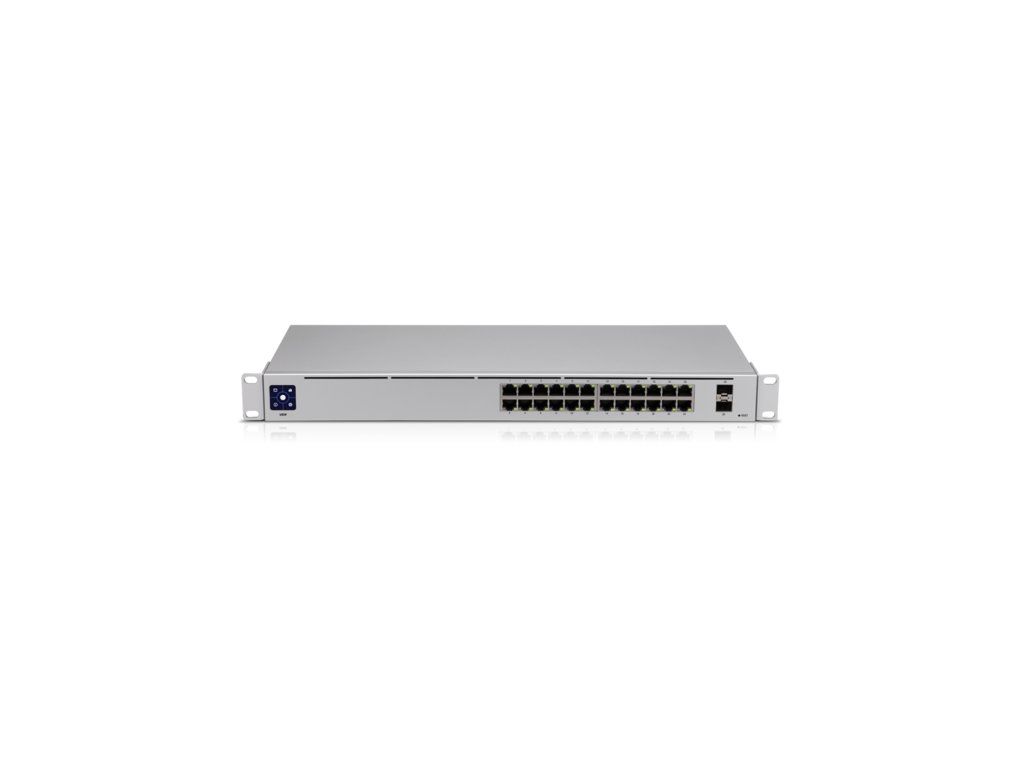

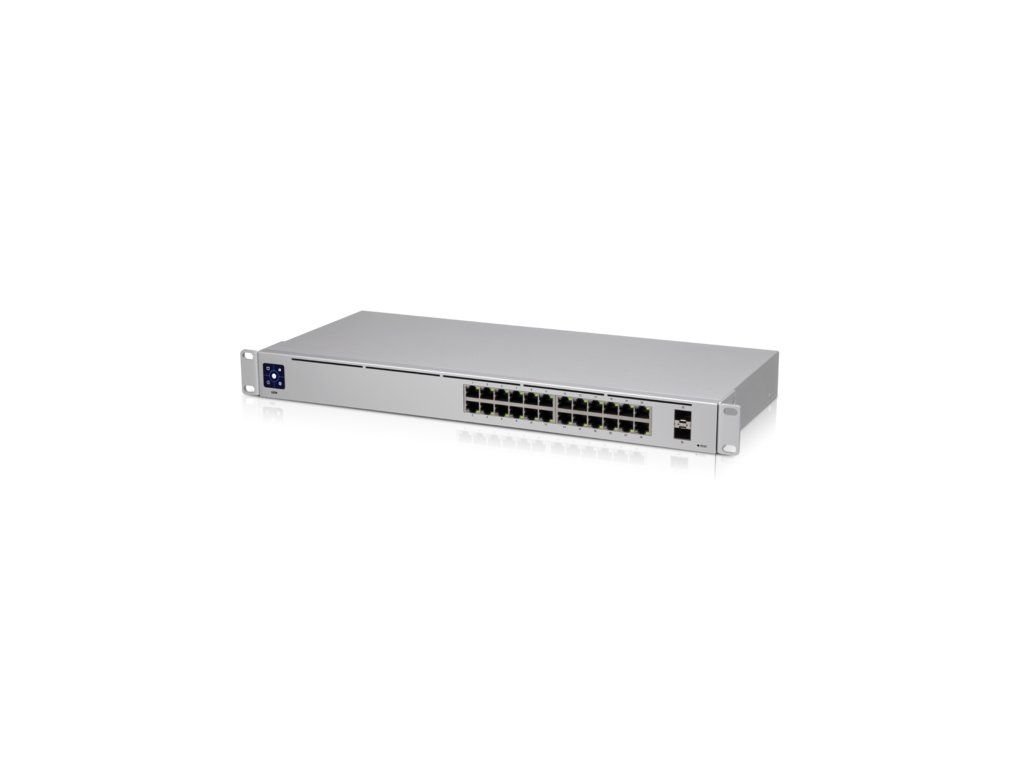

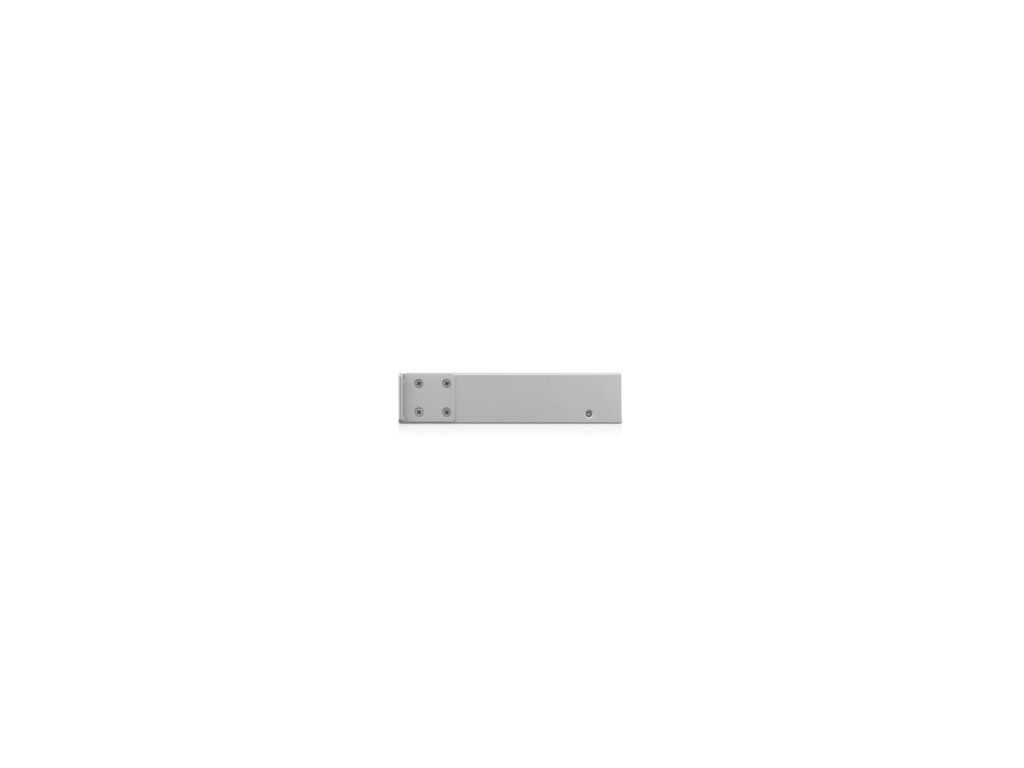

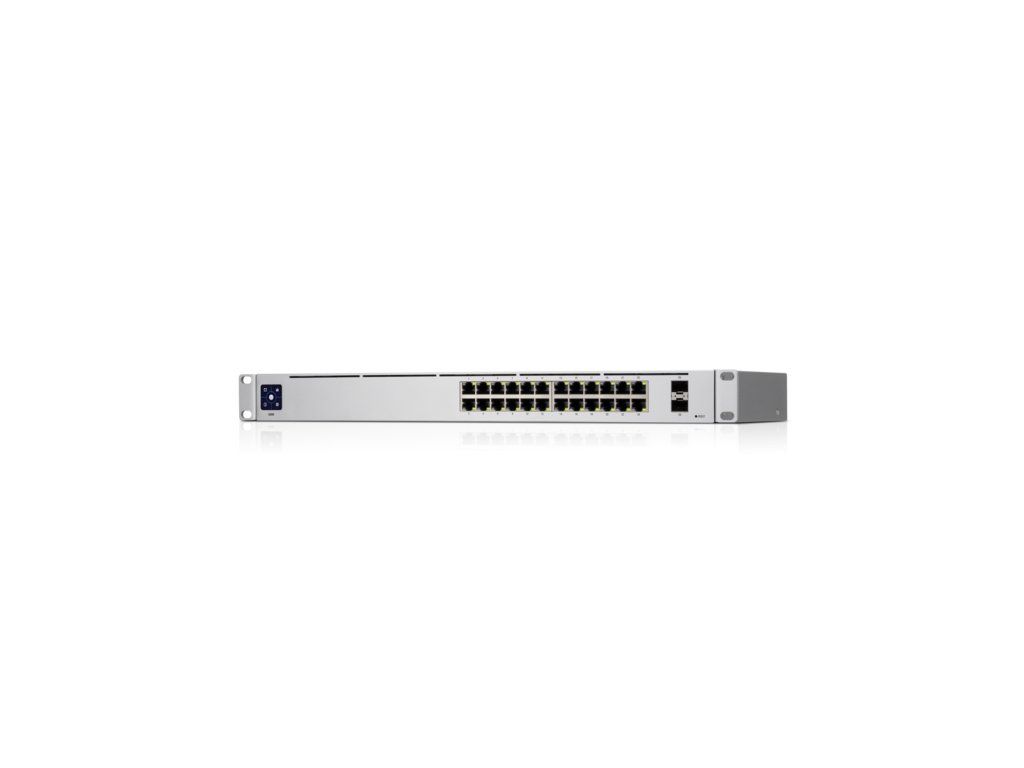

Ubiquiti USW-24 UniFi Switch 24

Technical Specifications

Mechanical

Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

Weight Without mounting brackets: 2.7 kg (6 lb)

With mounting brackets: 2.8 kg (6.2 lb)

Enclosure material SGCC steel



Hardware

Management interface Ethernet In-Band

Networking interface (24) GbE RJ45 ports

(2) 1G SFP ports

Total non-blocking throughput 26 Gbps

Switching capacity 52 Gbps

Forwarding rate 38.69 Mpps

Power method Universal input, 100—240V AC, 50/60 Hz

Power supply AC/DC, internal, 36W

Supported voltage range 100—240V AC

Max. power consumption 25W

ESD/EMP protection Air: ± 16kV, contact: ± 12kV

LCM display (1) 1.3" touchscreen

Button Factory reset

Ambient operating temperature -5 to 45° C (23 to 113° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs



LEDs

System Status

Ethernet Speed/link/activity

SFP Link/activity



Application Requirements

UniFi Network  Version 7.2.94 and later
