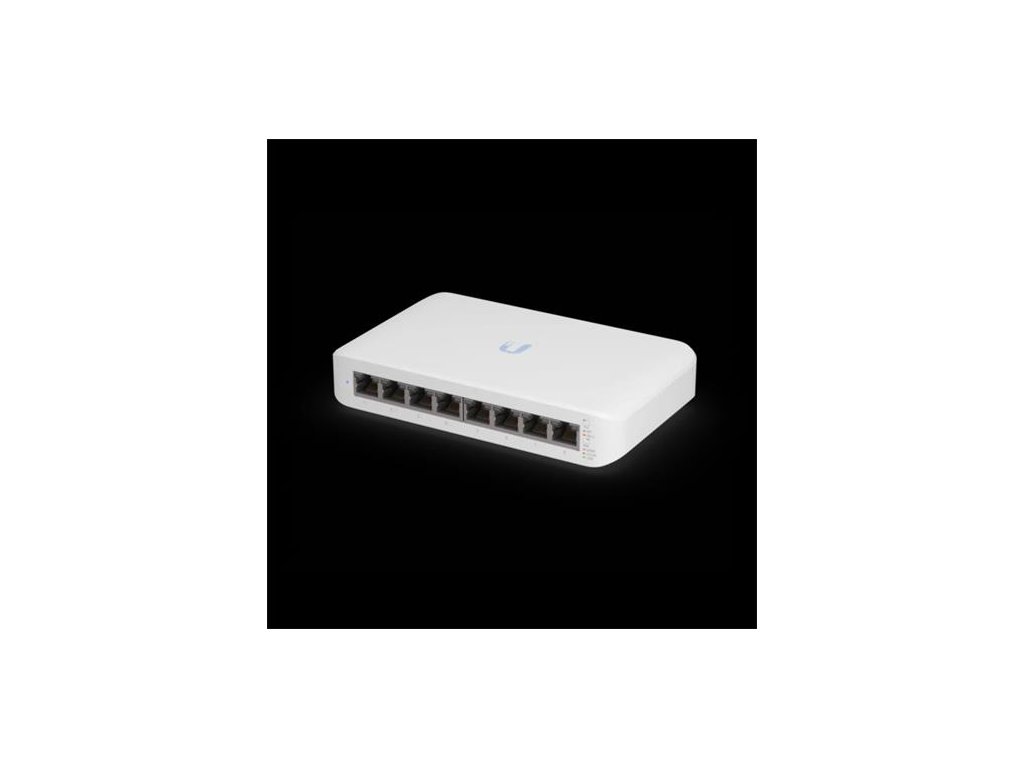

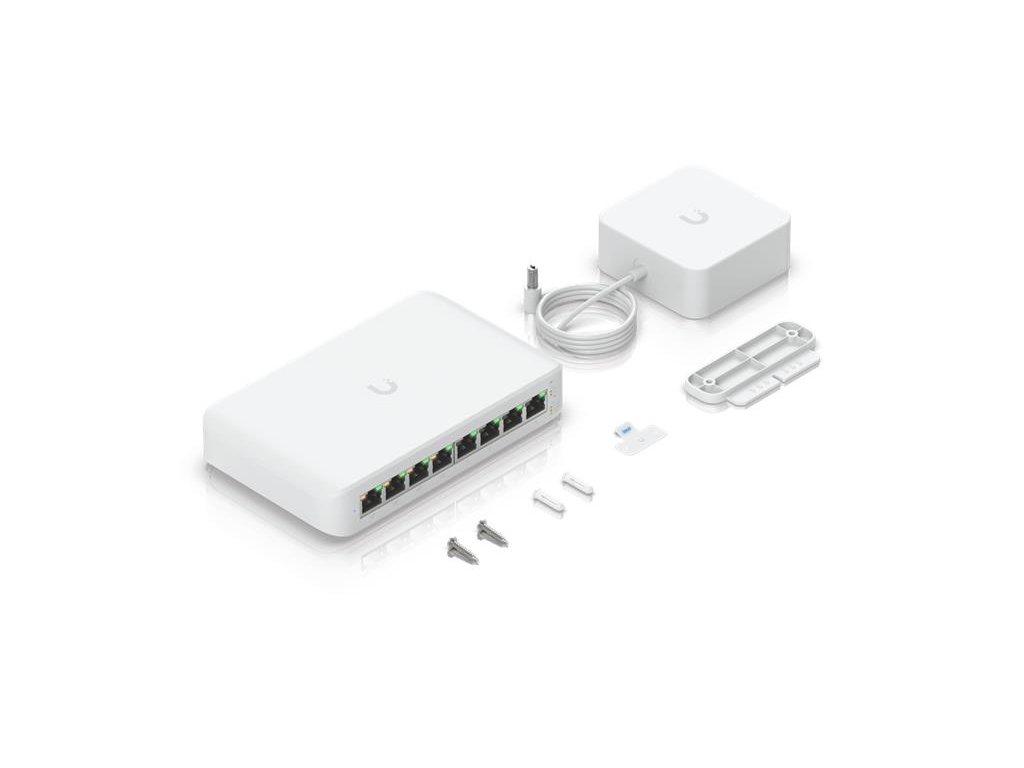

Ubiquiti USW-Lite-8-PoE

Technical Specifications



Mechanical

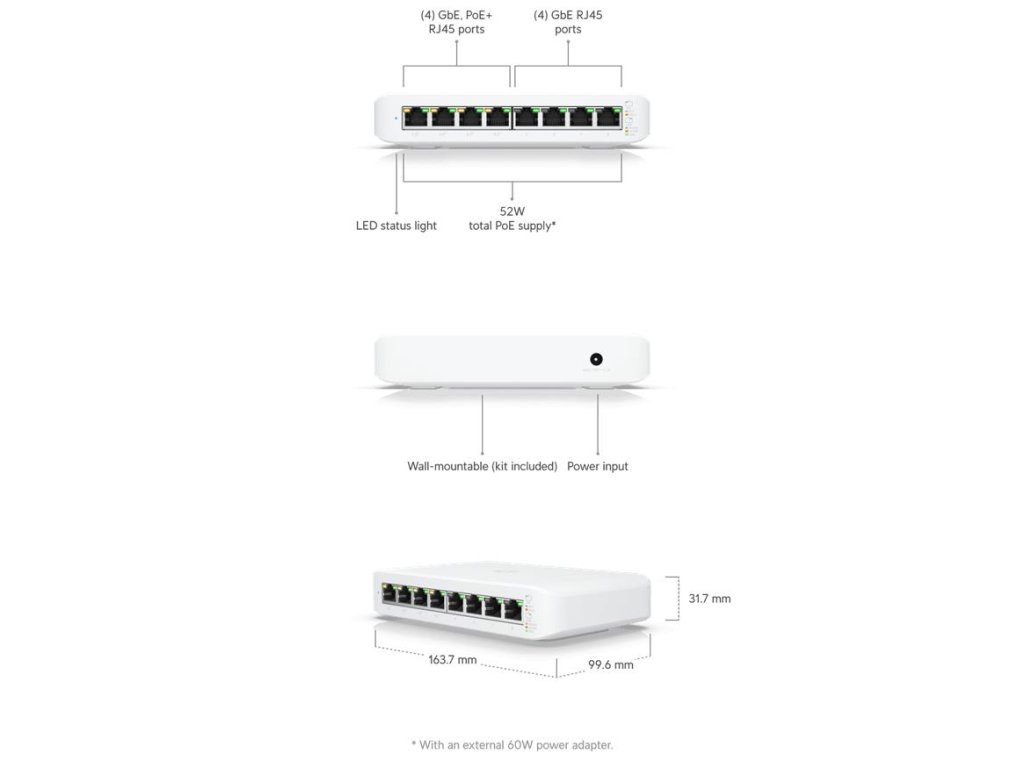

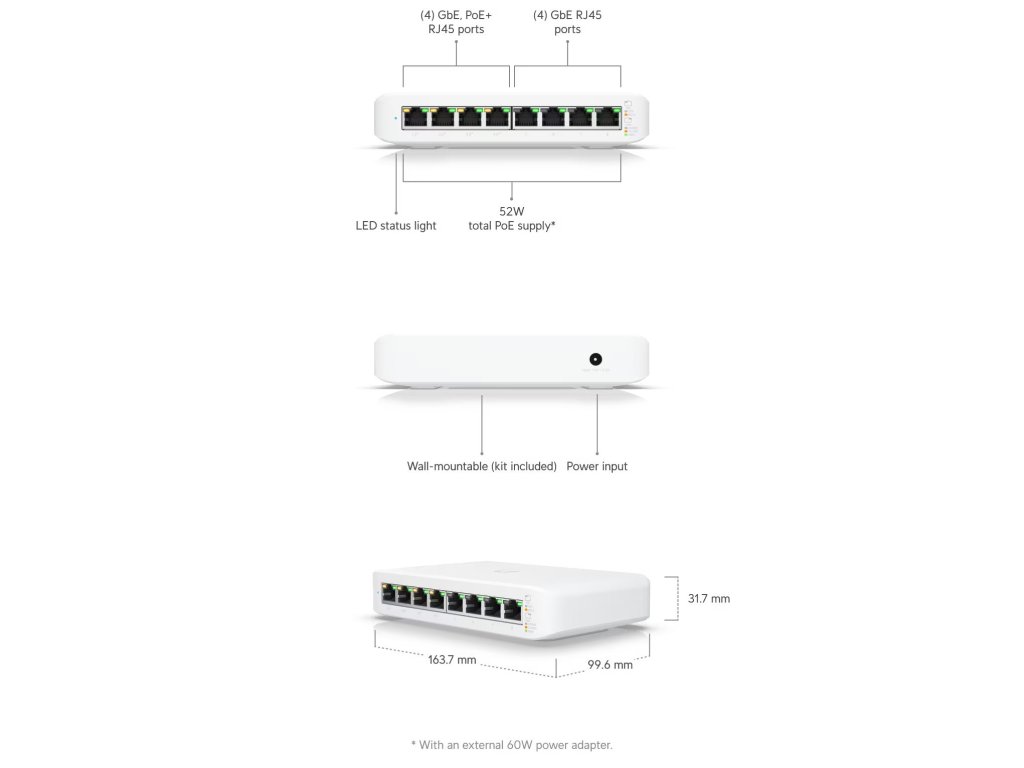

Dimensions 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")

Weight 295 g (10.4 oz)

Enclosure material Polycarbonate



Hardware

Management interface Ethernet In-Band

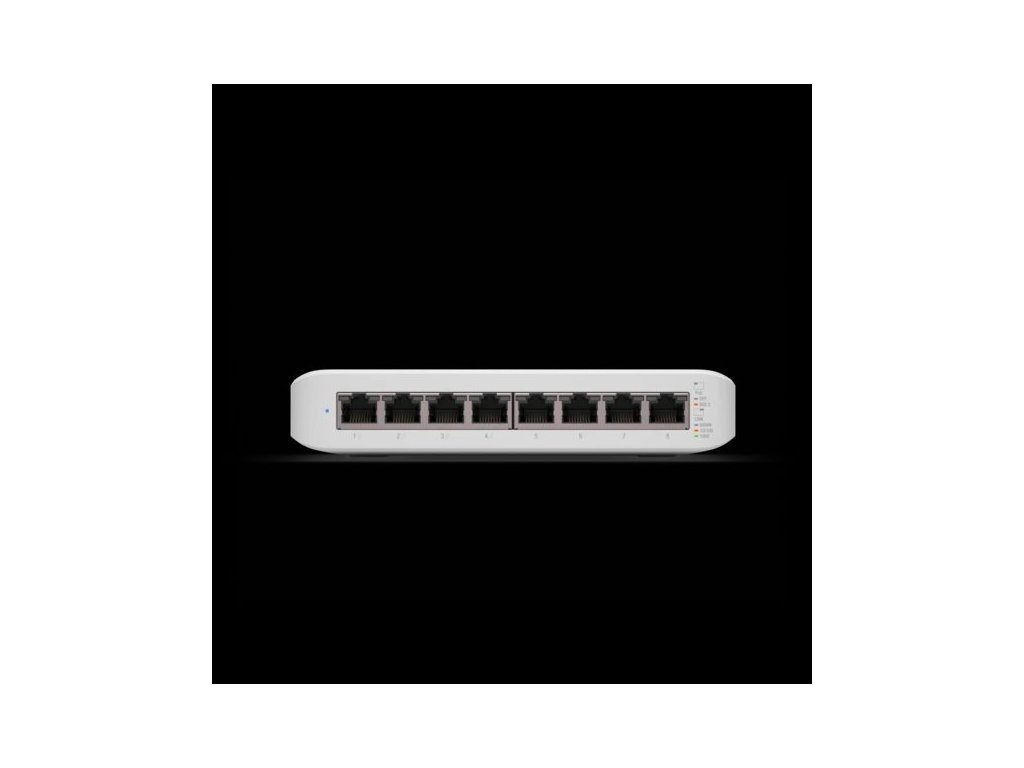

Networking interface (8) GbE RJ45 ports

PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput 8 Gbps

Switching capacity 16 Gbps

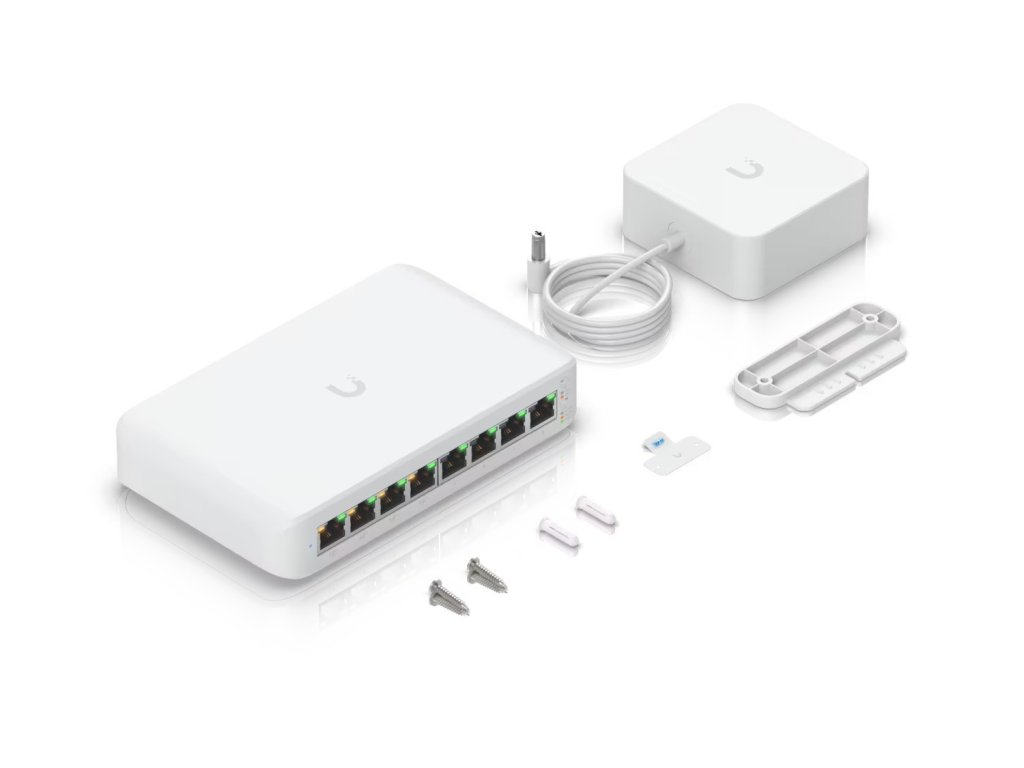

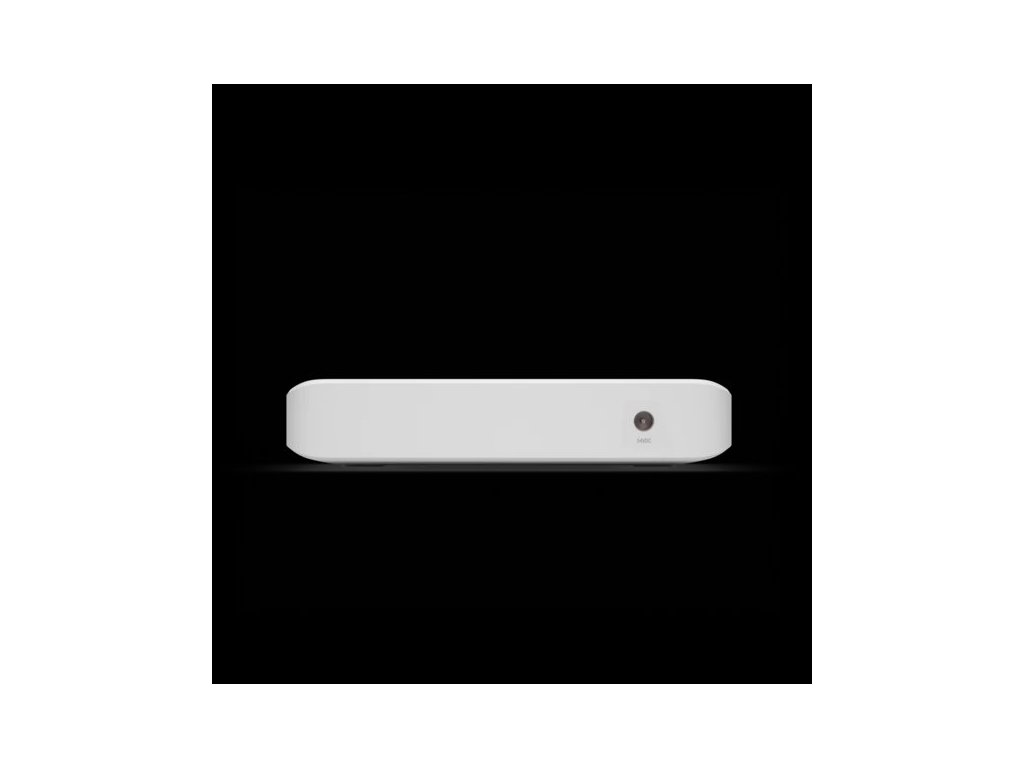

Power method 54V DC, 1.1A power adapter

Power supply 54V, external, 60W

Supported voltage range 50—57V DC

Max. power consumption 8W (Excluding PoE output)

Total available PoE 52W*

*With an external 60W power adapter.

Max. PoE wattage per port by PSE  PoE+: 30W

Button Factory reset

Ambient operating temperature -15 to 40° C (5 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs



LEDs

System Status

Ethernet PoE

Speed/link/activity

PoE Link/activity



Application Requirements

UniFi Network  Version 7.2.94 and later
