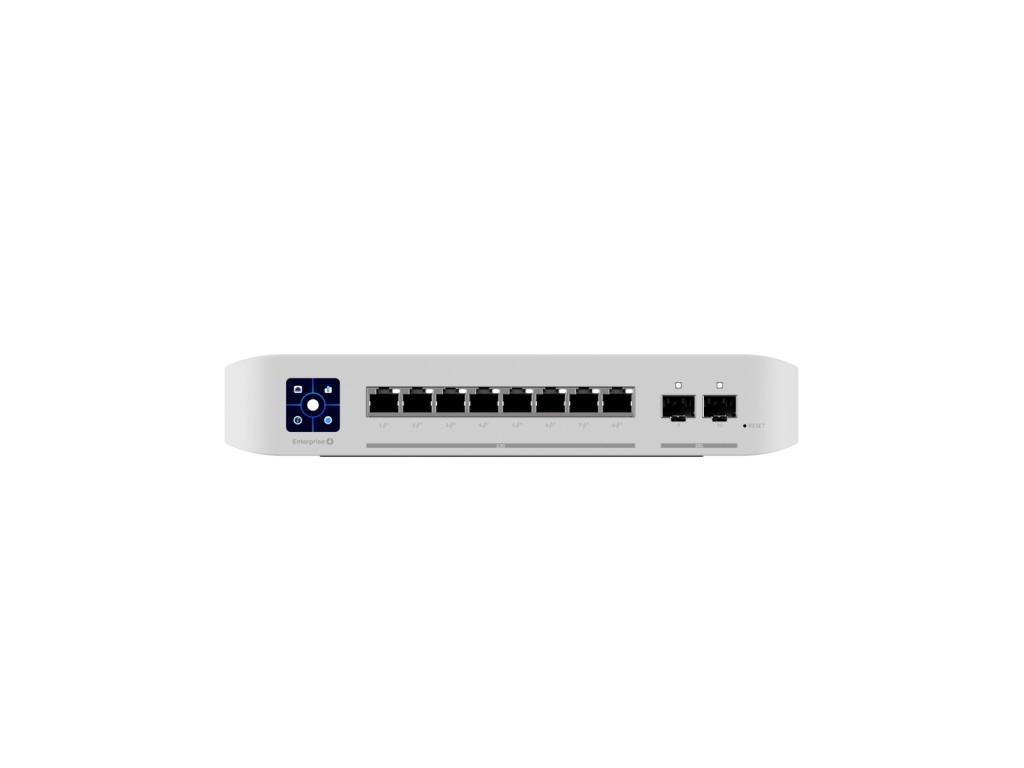

UBNT USW-Enterprise-8-PoE Ubiquiti

Technical Specifications



Mechanical

Dimensions  200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

Weight  2.4 kg (5.3 lb)

Enclosure material Polycarbonate

Mount material Polycarbonate



Hardware

Management interface  Ethernet In-Band

Networking interface (8) 2.5 GbE RJ45 ports

(2) 10G SFP+ ports

PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput  40 Gbps

Switching capacity  80 Gbps

Forwarding rate  59.52 Mpps

Power method  Universal input, 100—240V AC, 2A Max., 50/60 Hz

Power supply  AC/DC, internal, 150W

Supported voltage range 100—240V AC

Total available PoE 120W

Max. PoE+ wattage per port by PSE 32W

Voltage range PoE mode PoE: 44—57V

PoE+: 50—57V

LCM Display (1) 1.3" color touchscreen

Mounting Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE)

ESD/EMP protection Air: ± 16kV, contact: ± 12kV

Ambient operating temperature -5 to 45° C (23 to 113° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks



LEDs

System  Status

Ethernet Link/activity

SFP+ Link/activity



Application Requirements

UniFi Network  Version 6.3.51 and later
