VIGI C440-W(4mm) 4MP barevná WiFi Turret net.cam TP-link

Popis produktu

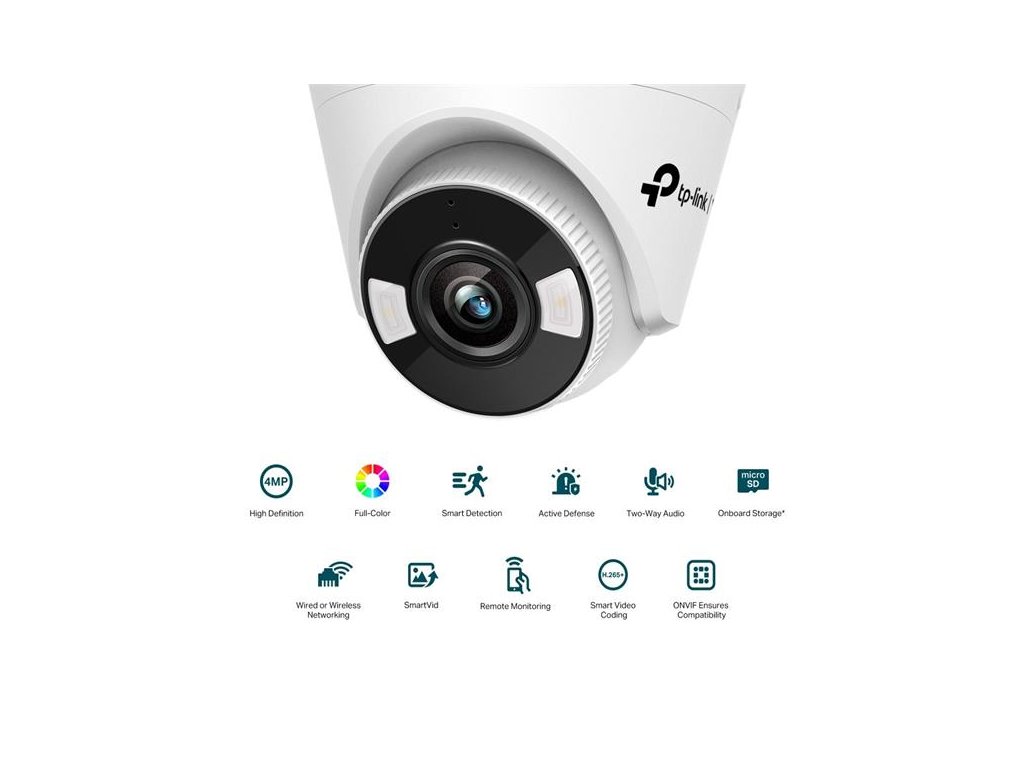

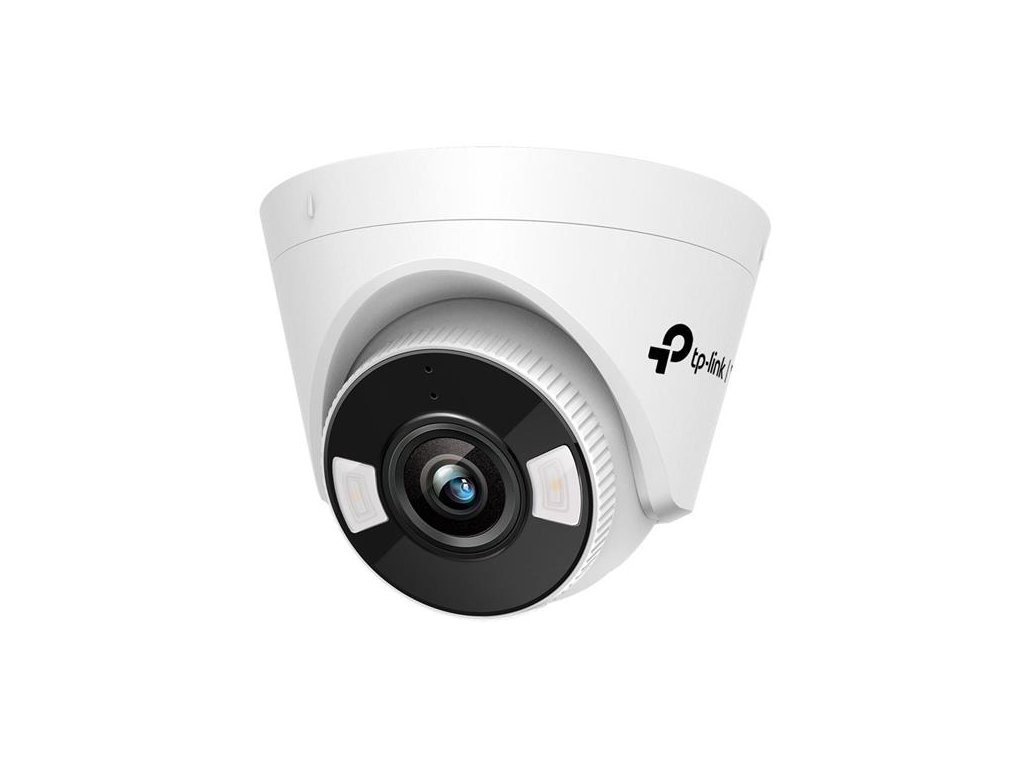

VIGI C440-W

VIGI 4 MPx vnútorná kopulová Wi-Fi sieťová kamera s plnofarebným nočným videním

4 MPx s rozlíšením UHD: Kamera VIGI C440 má rozlíšenie 4 MPx – viac ako dosť pixelov na to, aby zachytila ??niektoré diskrétnejšie detaily.

Nepretržité farebné snímanie: Spoľahnite sa na 24-hodinové snímanie farebných detailov aj v čiernočiernej tme vďaka vysoko citlivému snímaču a LED bodovým svetlám.

Bezdrôtové pripojenie: Jednoduché a rýchle nasadenie na miesta pokryté Wi-Fi signálom.

Inteligentná detekcia (detekcia pohybu, narušenie priestoru, prekročenie línie, neoprávnená manipulácia s kamerou): Prijímajte oznámenia a kontrolujte videokanály, keď niekto prekročí hranicu, vstúpi do nastavenej oblasti alebo prekáža kamere.

Chytré kódovanie H.265+: Kamery prenášajú komprimovaný krištáľovo čistý obraz bez toho, aby využívali ďalšiu šírku pásma, a šetria tak miesto na disku, znižujú zaťaženie siete a náklady na monitorovanie – to všetko bez zníženia kvality obrazu.

Vzdialené sledovanie: Spravujte svoje zabezpečenie priamo z dlane pomocou aplikácie VIGI.



CAMERA

Image Sensor 1/3” Progressive Scan CMOS

Lens Fixed focal lens (4 mm)

Aperture 4 mm: F1.6

Lens Mount M12

Viewing Angle (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°

Day/Night Mechanism IR Cut Filter

IR Working Distance 30m

Illumination Distance 30m (LED)

Minimum Illumination 0 lux with IR/white Light

Pan/Tilt Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Digital Noise Reduction 3D DNR

WDR DWDR

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wireless Rate 11 Mbps (802.11b)

54 Mbps (802.11g)

150 Mbps (802.11n)

Frequency 2.4 GHz

Wireless Security WPA/WPA2-PSK

API ONVIF

Simultaneous Live View 3 Main Streams & 3 Sub-Streams

GENERAL

Package Contents VIGI Network Camera

Quick Start Guide

Screws and Anchors

Mounting Template

Operating Temperature -30–60 °C

Certifications CE, FCC, RCM, BSMI, VCCI, RoHS

Dimensions( H X W X D ) 123 × 123 × 84 mm

Material Plastic

General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug

Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug

Power Consumption 12V DC: Max 7W

VIDEO/IMAGE

Video Compression Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions Main Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080



Sub-Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240

Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET

Smart Event Area Intrusion Detection, Line-Crossing Detection

Basic Event Motion Detection, Video Tampering Detection, Exception ( illegal login)

Linkage Method Trigger Notification: ONVIF, HTTPS

Region of Interest 1 Region

INTERFACES

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input Built-in Microphone

Audio Output Built-in Speaker

Button Reset Button

Slot Micro SD card

On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
