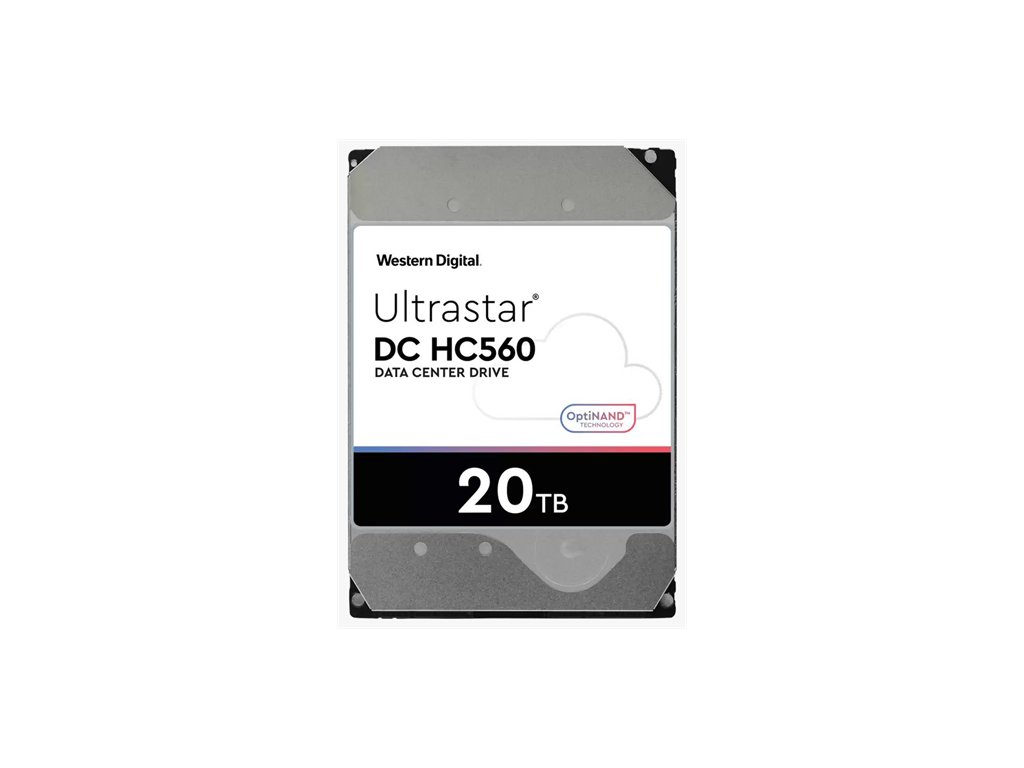

WD Ultrastar DC HC560 20TB Data Center HDD SATA SE 0F38785 Western Digital

20TB capacity with a reimagined HDD

An innovative storage architecture to help our customers meet their need for exponential data growth.

Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.

Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.

20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.

The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format.

Trusted Reliability and Quality for Data at Scale
The Ultrastar DC HC560 meets modern data center reliability requirements with 2.5M MTBF2 (projected) and a 5-year limited warranty. It offers security and encryption options to help protect data from unauthorized use, including SED models.

Trust Western Digital and the Ultrastar DC HC560 hard drive to deliver the highest capacity and greatest value for your data center.
Full Specifications
Features

Ideal for high-capacity enterprise applications and environments
Industry-leading HDD technologies: OptiNAND technology, EAMR, TSA, HelioSeal
Projected 2.5M hours MTBF

Capacity
20TB
Form Factor
3.5-Inch
Compatibility

Windows, Windows Server, Linux

Interface
SATA
Transfer Rate
up to 291MB/s
Disk Speed (RPM)
7200 RPM
Recording Technology
EAMR
Cache Size
512MB
Security
SE
Warranty
5-Year Limited Warranty
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Weight
690gms
Model Number
0F38785
Operating Temperature
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Drive
3.5"
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
