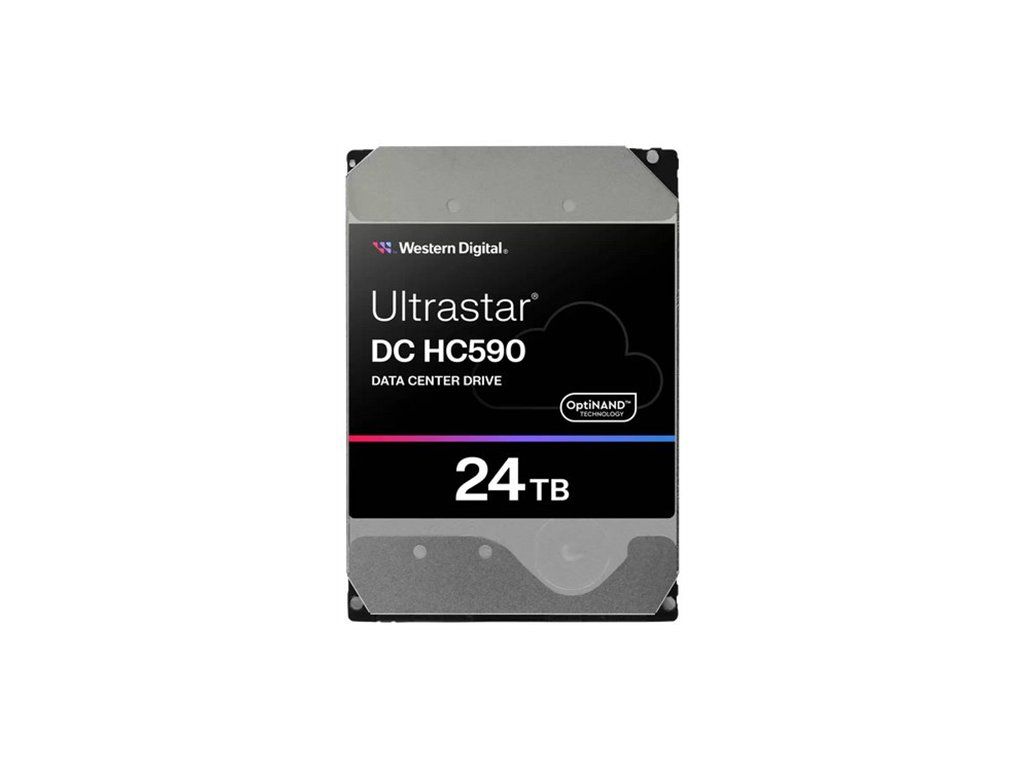

WD Ultrastar DC HC590 24TB Data Center HDD SATA SE 0F65684 Western Digital

World’s first 11-disk CMR HDD platform for increased storage density.

Ultrastar Data Center HC590 hard drives combine field-proven designs with the latest innovative technologies to meet data center demands for increased storage density in the existing storage footprint.

Future of More. Plus One
The world’s first 11-disk CMR HDD platform delivers unbeaten capacity of up to 26TB1 to help quench customer’s insatiable demand for increased storage density in the existing storage footprint.

Rapid Qualification and Rock Solid Reliability
Leveraging field-proven hardware and firmware designs from generations of highly successful products ensures easy qualification, seamless integration and rapid adoption while maintaining superior dependability and reliability.

Maximum Rack-Space Efficiency
The higher storage density provided by 11 disks combined with our energy-assisted Perpendicular Magnetic Recording (ePMR) technologies, which increase tracks-per-inch (TPI), allow data centers to maximize their storage efficiency.

Protected Against Vibration & Shock
Our exclusive Rotational Vibration Safeguard (RVS) uses dual sensors to anticipate and counteract disturbances, maintaining peak performance in high-vibration environments. Combined with Dynamic Fly Height technology, Western Digital offers exceptional drive reliability and protection from unexpected shock events.

Engineered with Industry-Leading Technology
Western Digital’s proprietary OptiNAND™ technology leverages integrated iNAND® embedded flash to perform key housekeeping functions, freeing up more capacity and improving the overall drive performance.

Powerful Performance and Resiliency
Choose ArmorCache™ write cache disabled (WCD) mode for increased random write performance or select write cache enable (WCE) mode to protect cached data in case of Emergency Power Off (EPO) or unexpected power loss scenarios.

Meet Eco Goals with Helium
Choose ArmorCache™ write cache disabled (WCD) mode for increased random write performance or select write cache enable (WCE) mode to protect cached data in case of Emergency Power Off (EPO) or unexpected power loss scenarios.

Trusted Reliability, Quality and World-Class Support
As an industry-leading hard drive manufacturer, Western Digital stands behind their Ultrastar hard drives with the assurance of a projected 2.5M-hour MTBF2 rating, a 5-year limited warranty3 and world-class support services to help create environments for data to thrive.
Specifications
Capacity
24TB
Form Factor
3.5-Inch
Interface

SATA 6Gb/s
SAS

Recording Technology
CMR
Security
SE
Dimensions (L x W x H)
5.776" x 4" x 1.028"
Warranty
5-Year Limited Warranty
Weight
1.47lbs
Model Number
WUH722624ALE6L4
Product Features

World’s first 11-disk CMR HDD platform
Increases storage density without increasing footprint
Maintains superior reliability of field-proven hardware designs

Model Numbers
24TB, SAS, SE: 0F59373
24TB, SAS, TCG: 0F65628
24TB, SATA, TCG: 0F65642
24TB, SATA, SE: 0F65684
26TB, SAS, SE: 0F59375
26TB, SAS, TCG: 0F65638
26TB, SATA, TCG: 0F65650
26TB, SATA, SE: 0F65672
