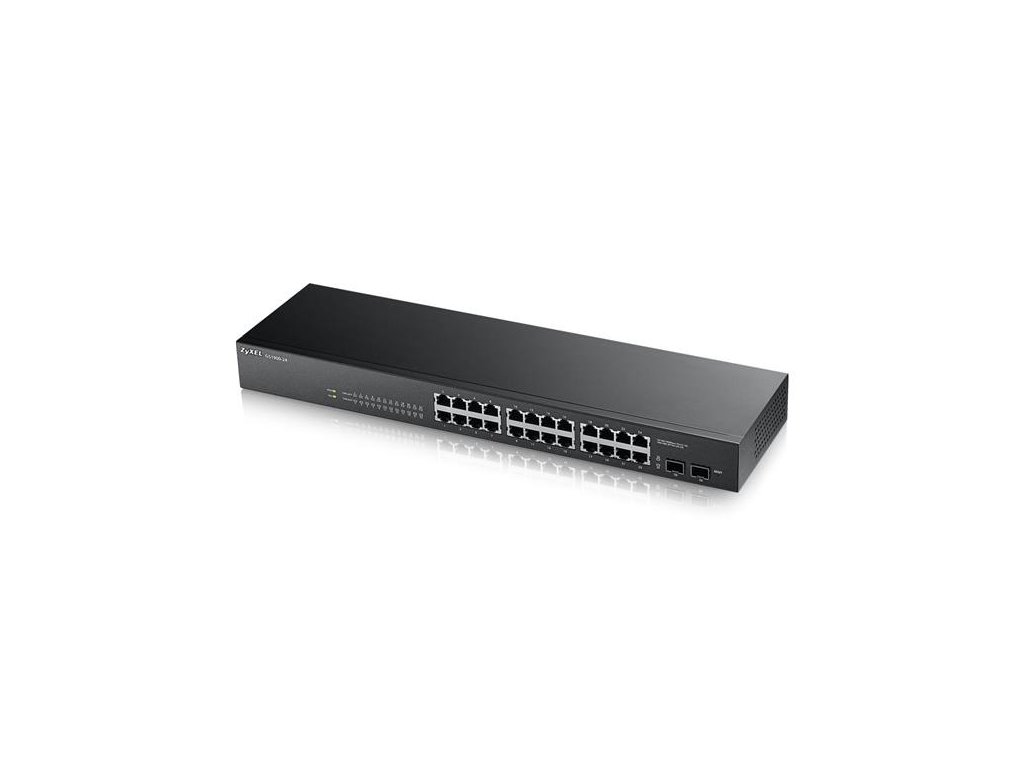

ZyXEL GS1900-24
26-port Gigabit Web Smart switch: 24x Gigabit metal + 2x SFP, IPv6, 802.3az (Green), Easy set up wizard, fanless, 19" rackmount
OVERVIEW
The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network viac fexibility and connectivity. 1900 Series zahŕňajú osem (8) modelov—GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 a GS19. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. V prípade, že modely PoE modelu GS1900-8HP/24HP/48HP Gigabitové spínače počítajú s IEEE 802.3at Power over Ethernet (PoE) Plus štandard. Dokončené GS1900 Séria má byť dizajnovaný s užitočnými vlastnosťami a rozšírené performance, ktoré vytvárajú vaše siete s rýchlosťou a bezpečnosťou, ako aj silné fungovanie vo svojich environmentoch.
• 10/100/1000 Mbps GbE ports
• Easy browser-based switch management
• Quick and easy set up wizard
• Advanced network error prevention features (loop protection, dual images, storm control, DoS and SSL)
• Fanless design
• Green Ethernet IEEE 802.3az support and intelligent ZyXEL green features
SPECIFICATIONS
PORT DENSITY
10/100/1000BASE-T, fixed
• 24
10/100/1000BASE-T, PoE, fixed
• -
SFP 100/1000 Mbps
• 2
PERFORMANCE
Switching capacity (Gbps)
• 52
Switch forwarding rate (Mpps)
• 39
Packet buffer (byte)
• 525 K
MAC address
• 8 K
Jumbo frame (byte)
• 9K
POWER
Input voltage of AC
• 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)
• 16
PoE power budget (watt)
• -
PHYSICAL SPECIFICATIONS
Item dimensions (WxDxH) (mm)
• 440 x 131 x 44
Item weight (kg)
• 2.09
Packing dimension (WxDxH) (mm)
• 561 x 217 x 82
Packing weight (kg)
• 2.85
ENVIRONMENTAL SPECIFICATIONS
Operating temperature
• 0°C až 50°C
Storage temperature
• -40 °C až 70 °C
Operating humidity
• 10% až 95% (non-condensing)
MTBF (hr)
• 432,673
Heat dissipation (BTU/hr)
• 55
26-port Gigabit Web Smart switch: 24x Gigabit metal + 2x SFP, IPv6, 802.3az (Green), Easy set up wizard, fanless, 19" rackmount
OVERVIEW
The ZyXEL GS1900 Series of 8/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network viac fexibility and connectivity. 1900 Series zahŕňajú osem (8) modelov—GS1900-8, GS1900-8HP, GS1900-16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 a GS19. Providing GbE switches with powersaving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. V prípade, že modely PoE modelu GS1900-8HP/24HP/48HP Gigabitové spínače počítajú s IEEE 802.3at Power over Ethernet (PoE) Plus štandard. Dokončené GS1900 Séria má byť dizajnovaný s užitočnými vlastnosťami a rozšírené performance, ktoré vytvárajú vaše siete s rýchlosťou a bezpečnosťou, ako aj silné fungovanie vo svojich environmentoch.
• 10/100/1000 Mbps GbE ports
• Easy browser-based switch management
• Quick and easy set up wizard
• Advanced network error prevention features (loop protection, dual images, storm control, DoS and SSL)
• Fanless design
• Green Ethernet IEEE 802.3az support and intelligent ZyXEL green features
SPECIFICATIONS
PORT DENSITY
10/100/1000BASE-T, fixed
• 24
10/100/1000BASE-T, PoE, fixed
• -
SFP 100/1000 Mbps
• 2
PERFORMANCE
Switching capacity (Gbps)
• 52
Switch forwarding rate (Mpps)
• 39
Packet buffer (byte)
• 525 K
MAC address
• 8 K
Jumbo frame (byte)
• 9K
POWER
Input voltage of AC
• 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)
• 16
PoE power budget (watt)
• -
PHYSICAL SPECIFICATIONS
Item dimensions (WxDxH) (mm)
• 440 x 131 x 44
Item weight (kg)
• 2.09
Packing dimension (WxDxH) (mm)
• 561 x 217 x 82
Packing weight (kg)
• 2.85
ENVIRONMENTAL SPECIFICATIONS
Operating temperature
• 0°C až 50°C
Storage temperature
• -40 °C až 70 °C
Operating humidity
• 10% až 95% (non-condensing)
MTBF (hr)
• 432,673
Heat dissipation (BTU/hr)
• 55
