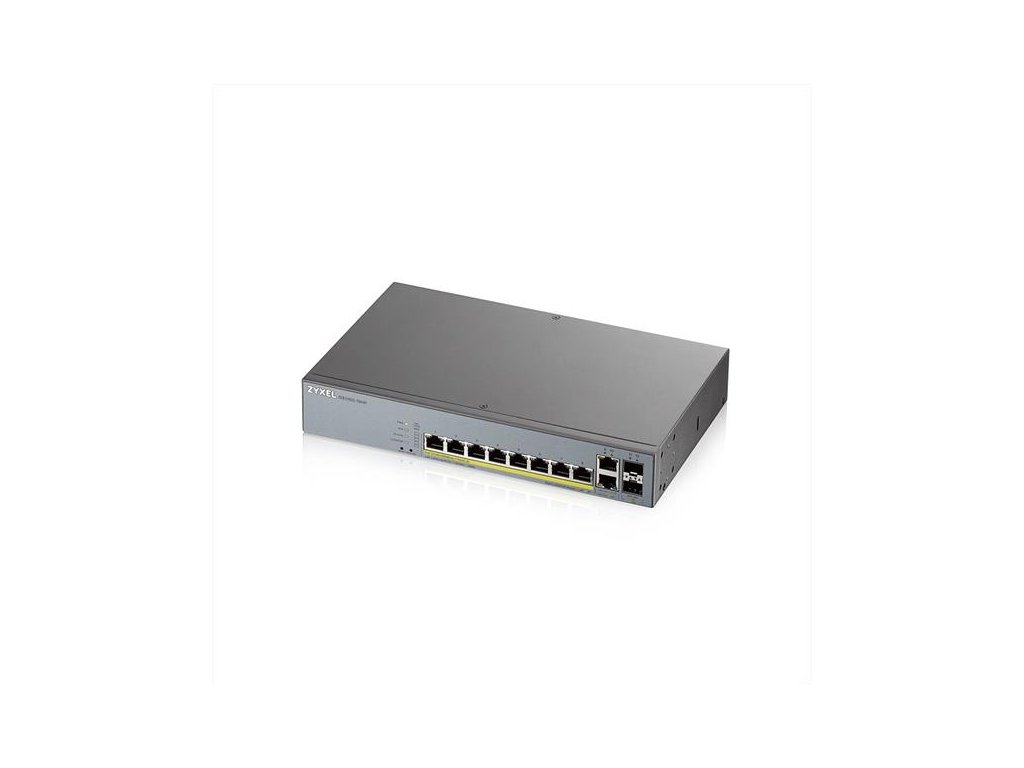

ZYXEL GS1350-12HP 12 Port manged CCTV PoE witch, 130W GS1350-12HP-EU0101F ZyXEL
Model GS1350-12HP
Product name 8-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class Smart Managed
Port Density
Total port count 12
100/1000 Mbps 10
Gigabit SFP 2
Gigabit combo (RJ-45/SFP) -
Configurable extended range ports 8
PoE
PoE ports 8
Total PoE budget (watt) 130
PoE Standard 802.3af/at
Performance
Switching capacity (Gbps) 24
Forwarding rate (Mpps) 17.8
Packet buffer (byte) 525 K
MAC address table 8 K
Power
Input 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 160.3
Physical Specifications
Dimensions (WxDxH)(mm/in.) 267 x 162 x 44 / 10.51x 6.38 x1.73
Weight (kg/lb.) 1.63/3.59
Included accessories Power cord
Rack mounting kit
ESD/Surge Protections
Ethernet port surge protection 4 KV
Power supply surge protection: Line-GND 4 KV
Power supply surge protection: Line-Line 2 KV
Ethernet port ESD protection (air/contact) 15 KV/8 KV
Environmental Specifications
Operating Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing)
MTBF (hr) 1,065,025.45
Heat dissipation (BTU/hr) 546.62
Acoustic noise @ 25°C (dBA) 27.3
Product name 8-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class Smart Managed
Port Density
Total port count 12
100/1000 Mbps 10
Gigabit SFP 2
Gigabit combo (RJ-45/SFP) -
Configurable extended range ports 8
PoE
PoE ports 8
Total PoE budget (watt) 130
PoE Standard 802.3af/at
Performance
Switching capacity (Gbps) 24
Forwarding rate (Mpps) 17.8
Packet buffer (byte) 525 K
MAC address table 8 K
Power
Input 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 160.3
Physical Specifications
Dimensions (WxDxH)(mm/in.) 267 x 162 x 44 / 10.51x 6.38 x1.73
Weight (kg/lb.) 1.63/3.59
Included accessories Power cord
Rack mounting kit
ESD/Surge Protections
Ethernet port surge protection 4 KV
Power supply surge protection: Line-GND 4 KV
Power supply surge protection: Line-Line 2 KV
Ethernet port ESD protection (air/contact) 15 KV/8 KV
Environmental Specifications
Operating Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing)
MTBF (hr) 1,065,025.45
Heat dissipation (BTU/hr) 546.62
Acoustic noise @ 25°C (dBA) 27.3
Dodatočné parametre
| Kategória: | Prepínače (switch) |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 2.56 kg |
| EAN: | 4718937604388 |
| Management switch: | Managed switch |
| Optika: | Áno |
| Prevedenie switcha: | Desktop |
| Rýchlosť LAN max.: | 1 Gbps |
| Obsahuje switch: | Áno |
| Počet SFP portov: | 2 |
| Počet LAN portov: | 12 |
| PoE: | Out (výstup) |
| PoE In standart: | Nepodporuje |
| PoE Out standard: | 802.3at (max. 33,6W) - PoE+ |
| PoE power budget (W): | 101-200 |
