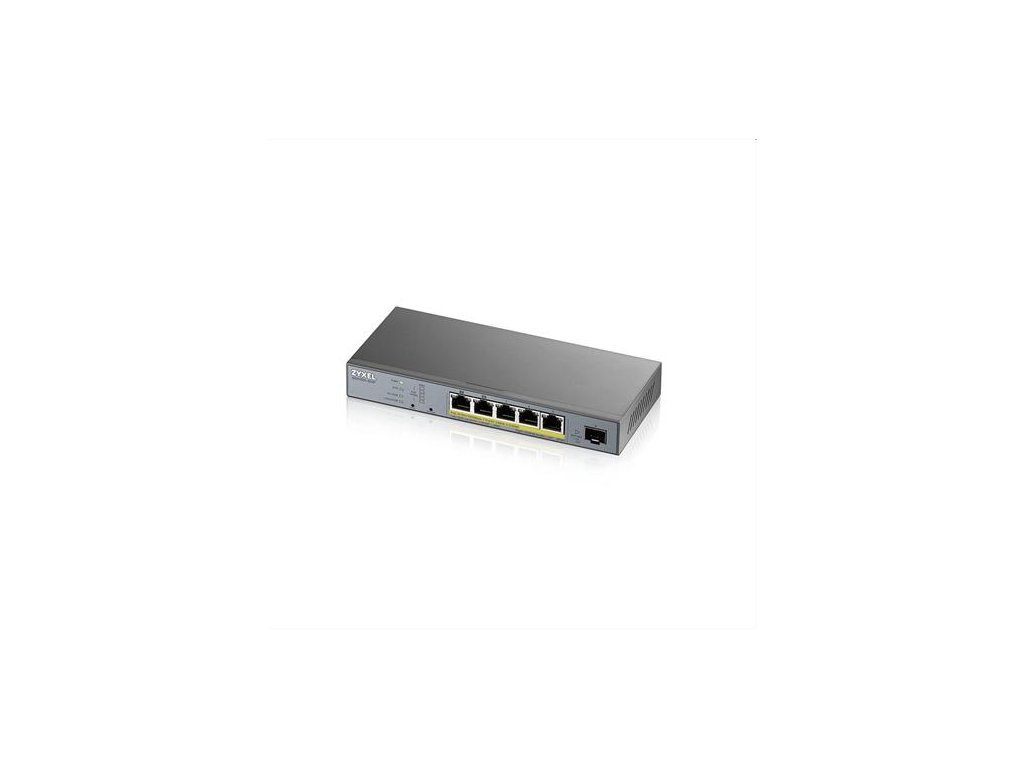

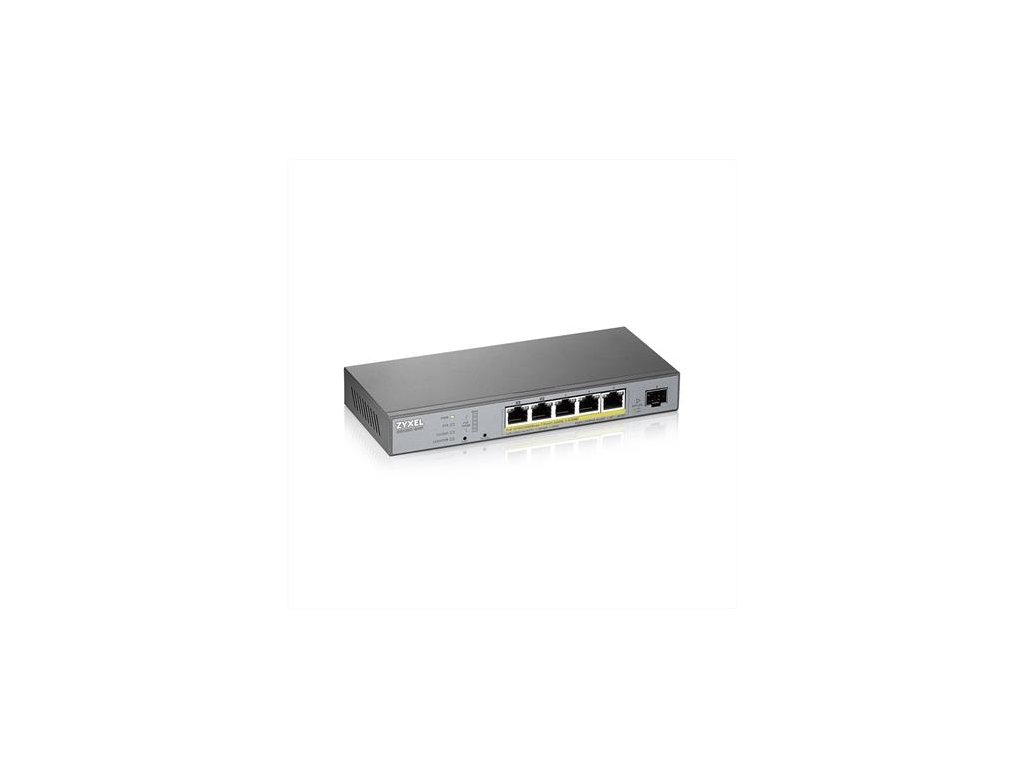

Zyxel GS1350-6HP, 6 Port managed CCTV PoE switch, long range, 60W, 802.3BT GS1350-6HP-EU0101F ZyXEL
Model GS1350-6HP
Product name 5-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class Smart Managed
Port Density
Total port count 6
100/1000 Mbps 5
Gigabit SFP 1
Gigabit combo (RJ-45/SFP) -
Configurable extended range ports 5
PoE
PoE ports 5
Total PoE budget (watt) 60
PoE Standard 802.3af/at
802.3bt (port 1-2)
Performance
Switching capacity (Gbps) 12
Forwarding rate (Mpps) 8.9
Packet buffer (byte) 525 K
MAC address table 8 K
Power
Input 52 V - 57 V DC
Max. power consumption (watt) 72
Physical Specifications
Dimensions (WxDxH)(mm/in.) 193 x 84 x 26 / 7.6 x 3.31 x1.02
Weight (kg/lb.) 0.41/0.9
Included accessories Power adapter
Wall-mount kit
ESD/Surge Protections
Ethernet port surge protection 4 KV
Power supply surge protection: Line-GND 4 KV
Power supply surge protection: Line-Line 2 KV
Ethernet port ESD protection (air/contact) 15 KV/8 KV
Environmental Specifications
Operating Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing)
MTBF (hr) 2,021,885.87
Heat dissipation (BTU/hr) 245.52
Acoustic noise @ 25°C (dBA) 0 (Fanless)
Product name 5-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class Smart Managed
Port Density
Total port count 6
100/1000 Mbps 5
Gigabit SFP 1
Gigabit combo (RJ-45/SFP) -
Configurable extended range ports 5
PoE
PoE ports 5
Total PoE budget (watt) 60
PoE Standard 802.3af/at
802.3bt (port 1-2)
Performance
Switching capacity (Gbps) 12
Forwarding rate (Mpps) 8.9
Packet buffer (byte) 525 K
MAC address table 8 K
Power
Input 52 V - 57 V DC
Max. power consumption (watt) 72
Physical Specifications
Dimensions (WxDxH)(mm/in.) 193 x 84 x 26 / 7.6 x 3.31 x1.02
Weight (kg/lb.) 0.41/0.9
Included accessories Power adapter
Wall-mount kit
ESD/Surge Protections
Ethernet port surge protection 4 KV
Power supply surge protection: Line-GND 4 KV
Power supply surge protection: Line-Line 2 KV
Ethernet port ESD protection (air/contact) 15 KV/8 KV
Environmental Specifications
Operating Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing)
MTBF (hr) 2,021,885.87
Heat dissipation (BTU/hr) 245.52
Acoustic noise @ 25°C (dBA) 0 (Fanless)
Dodatočné parametre
| Kategória: | Prepínače (switch) |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 1.21 kg |
| EAN: | 4718937604500 |
