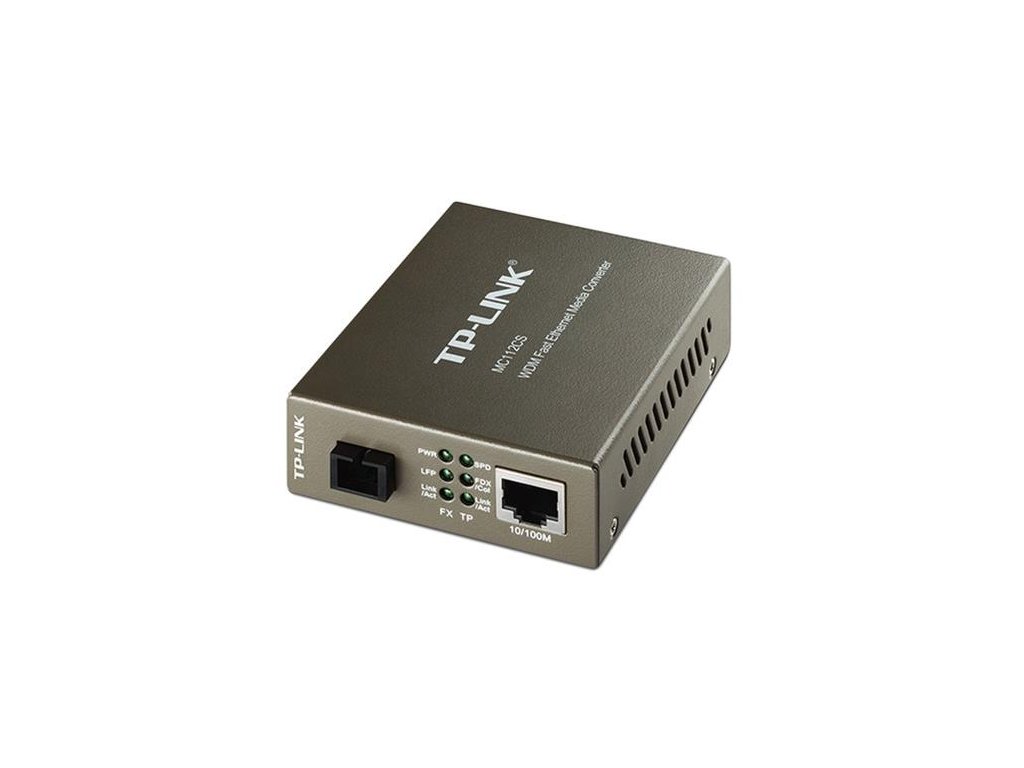

TP-Link MC112CS FE WDM SM 20km SC 1310nmTX/1550nmRX Media Conv. TP-link

WDM média konvertor sítě Fast Ethernet
MC112CS
Vyhovuje standardům 802.3u 10/100Base-TX, 100Base-FX.
Funkce Link Fault Passthrough a Far End Fault včas minimalizují ztrátu způsobenou přerušením spojení.
Podporuje technologii WDM, odesílání a příjem dat pomocí jednoho optického vedení.

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u
Basic Function Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
minimize the loss caused by link failure timely
Extends fiber distance up to 20km
Ports 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm Tx/1550nm Rx
WDM TX 1310nm
WDM RX 1550nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 2.41W
Safety & Emission FCC, CE, RoHS
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
