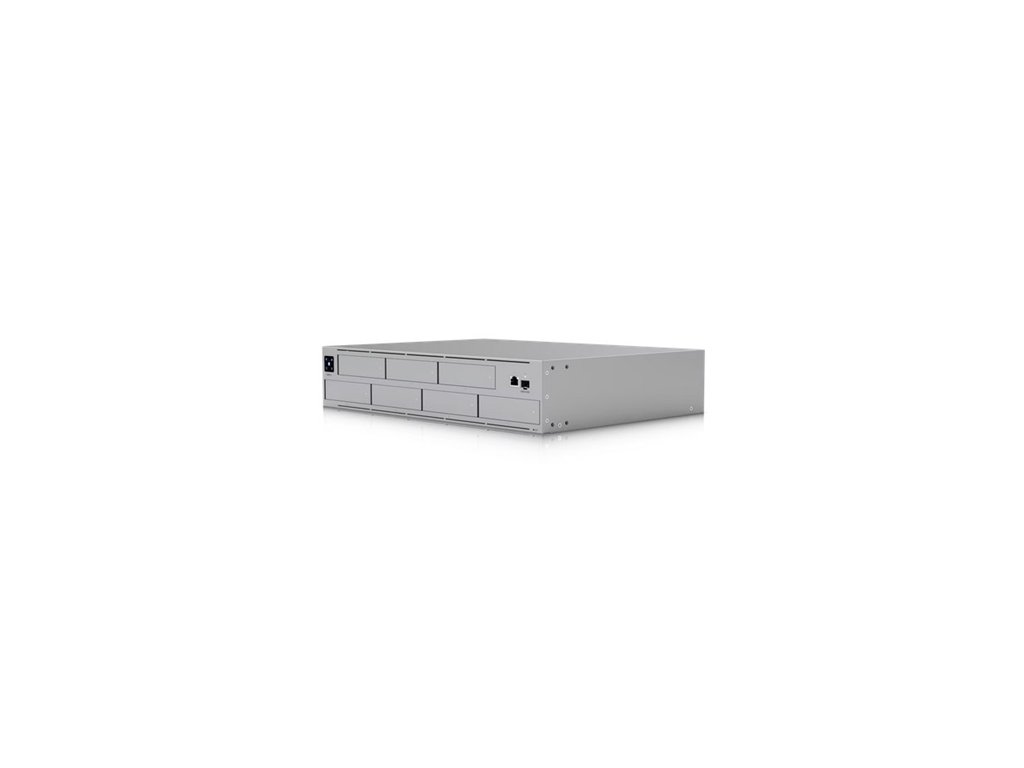

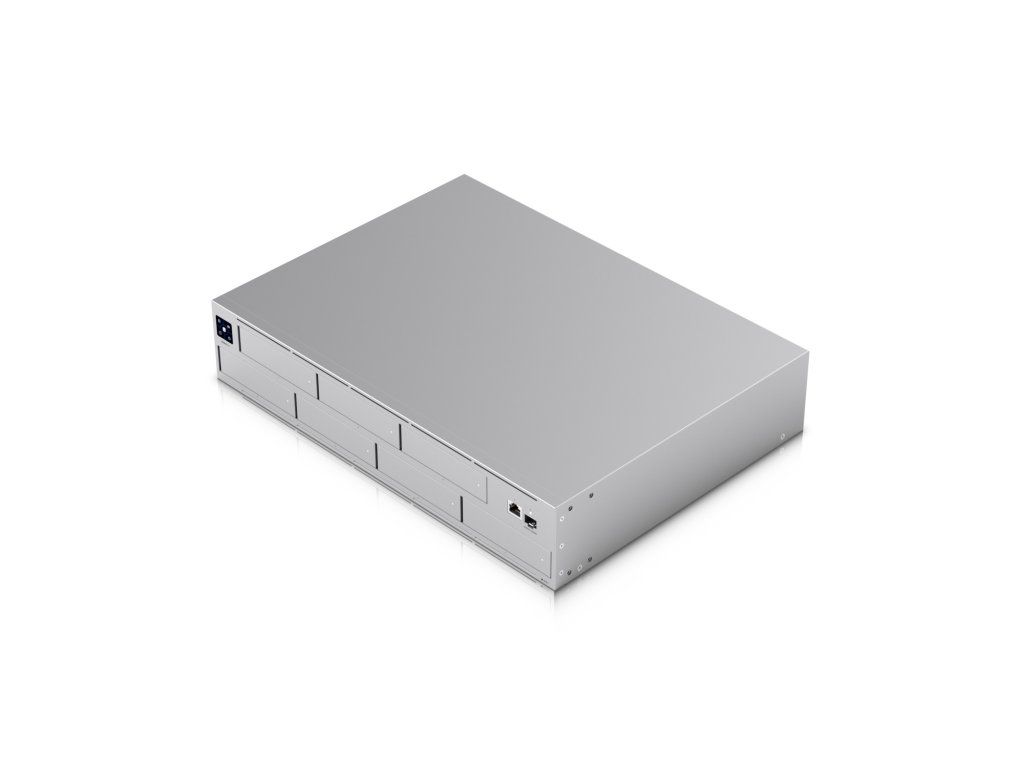

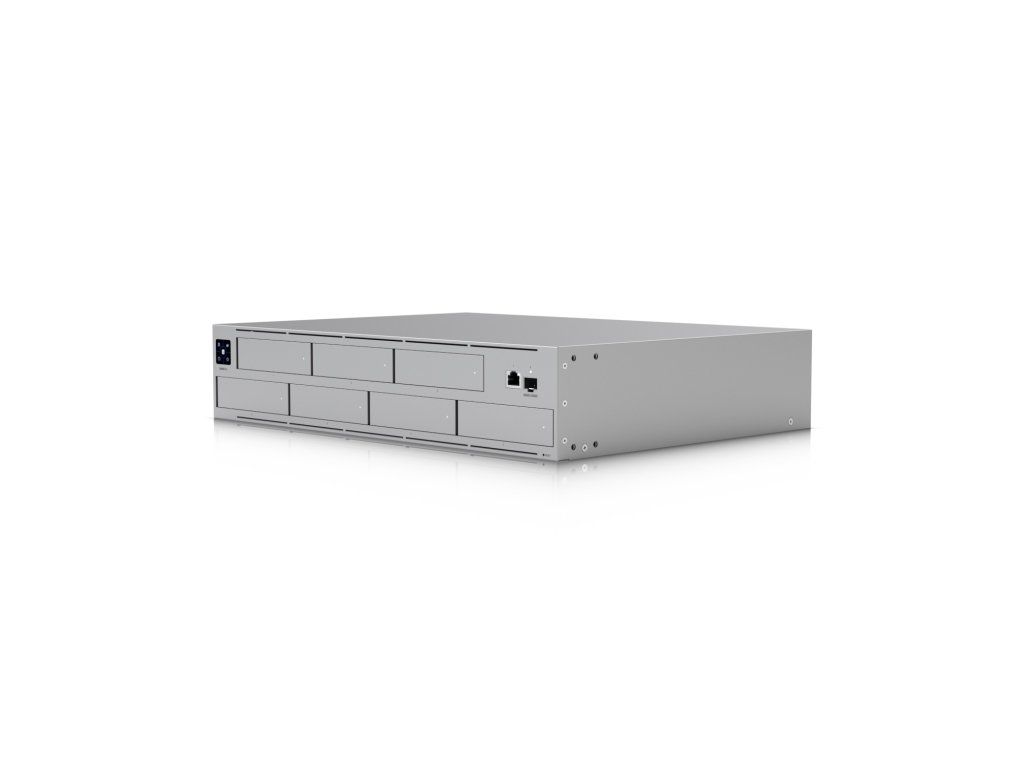

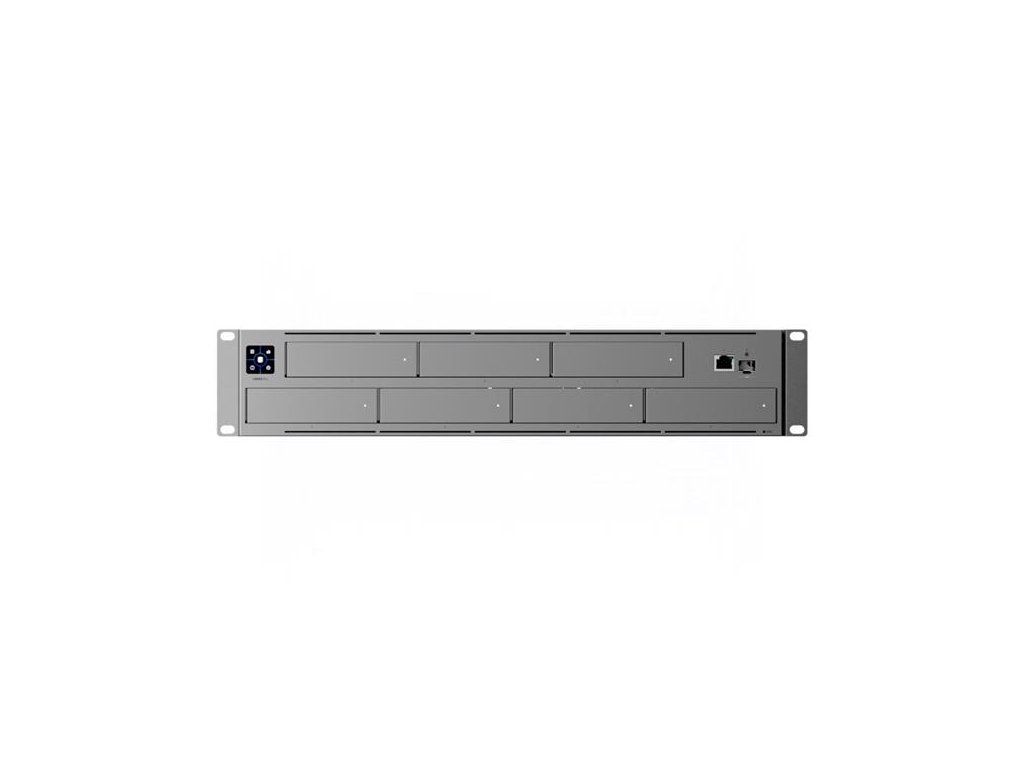

Ubiquiti UniFi UNAS-PRO NAS server, 7x 3,5/2,5" disk HDD/SSD, RAID, 1GbE, 1x SFP+

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.

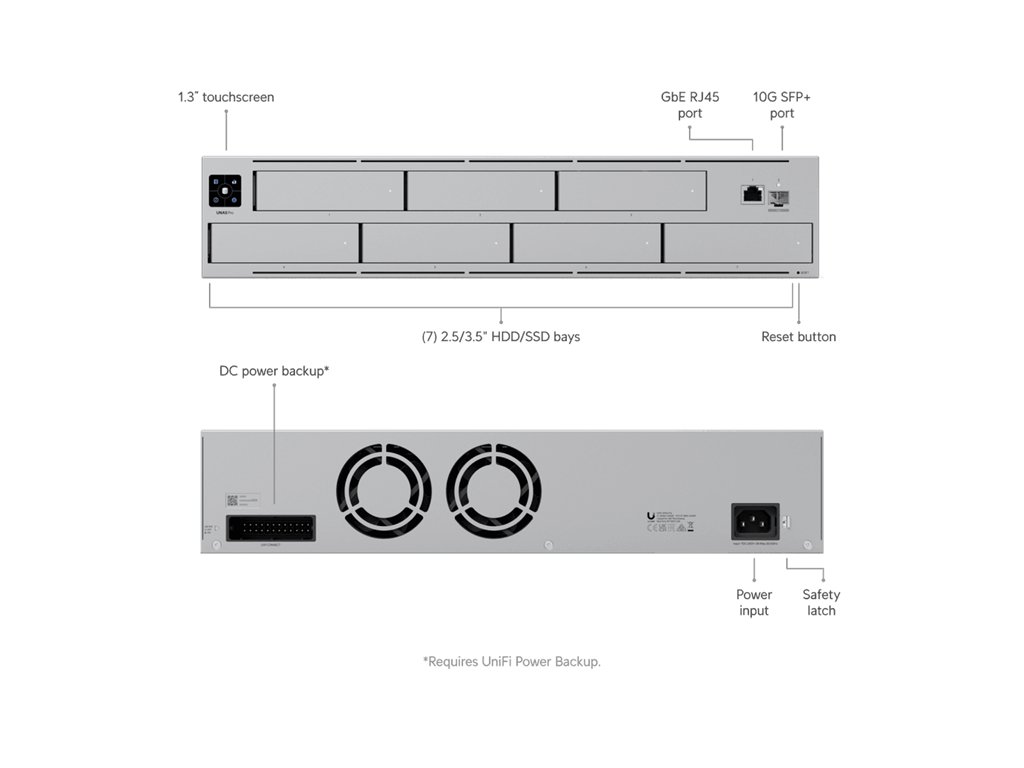

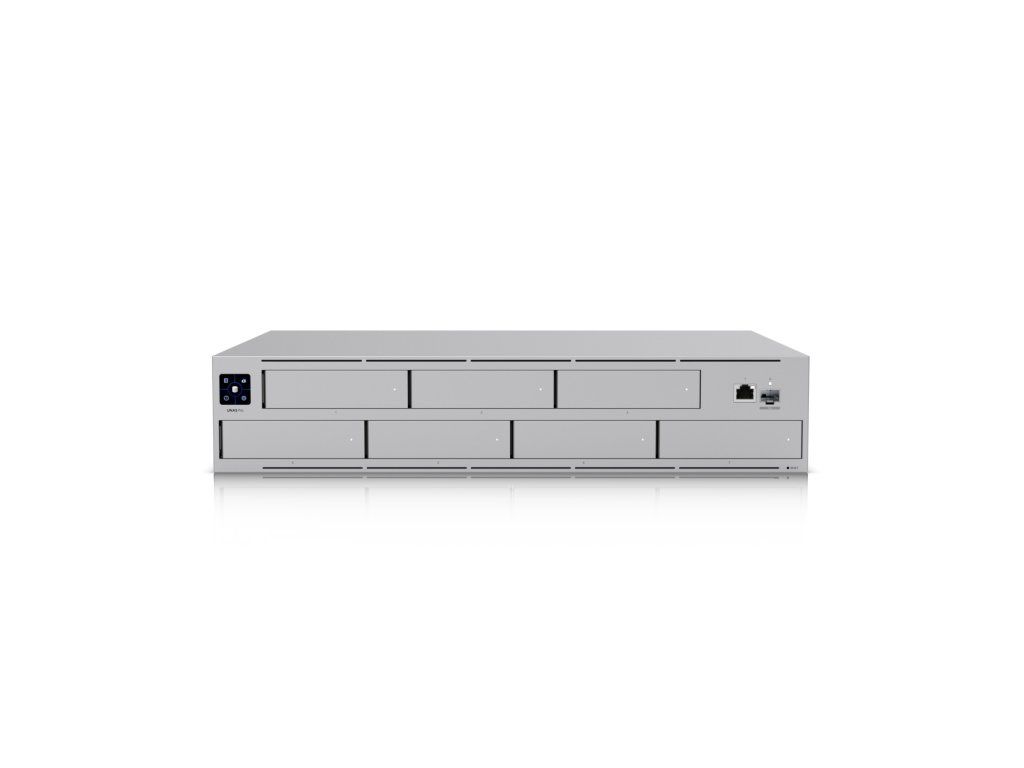

(7) 2.5/3.5" HDD / SSD support





(1) 10G SFP+ uplink and (1) GbE RJ45 port





Data protection with RAID storage technology





UniFi Power Backup ready





1.3" touchscreen for management



Technical Specifications

Mechanical

Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")

Weight Without mounting brackets: 9.2 kg (20.3 lb)

With mounting brackets: 9.5 kg (20.8 lb)

Enclosure material SGCC steel

Mount material SGCC steel



Hardware

Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System memory 8 GB

Management interface Ethernet In-Band

Networking interface (1) GbE RJ45 port

(1) 1/10 GbE SFP+ port

RF interface Bluetooth 4.1

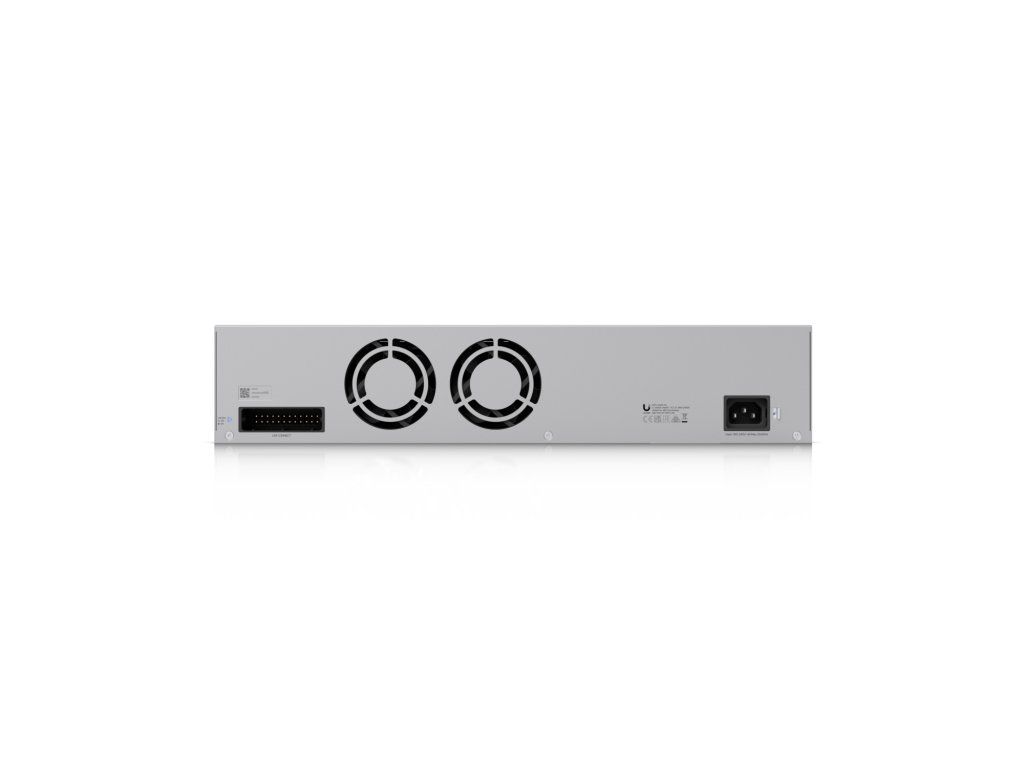

Power method (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz

(1) USP-RPS DC input, 11.5V DC, 13.91A

Power supply AC/DC, internal, 200W

Supported voltage range 100—240V AC

Max. power consumption 160W

Max. power budget for Drives 135W

ESD/EMP protection Air: ± 12kV, contact: ± 8kV

LCM Display (1) 1.3" touchscreen

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, CE, IC



LEDs

Ethernet Green: 1 Gbps

Amber: 10/100 Mbps

SFP+ White: 10 Gbps

Green: 1 Gbps

HDD White: disk detected

Amber: disk error

RPS Blue: ready



Application Requirements

UniFi Drive Version 1.16.0 and later
