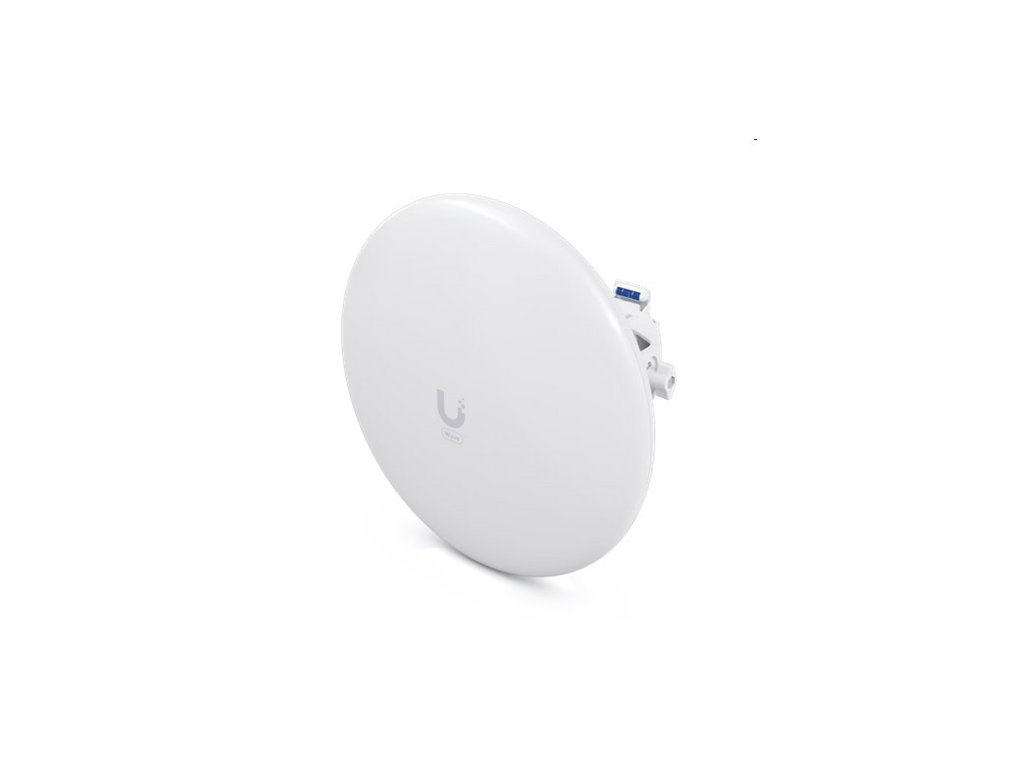

Ubiquiti Wave-Nano - UISP Wave Nano

Popis produktu

60 GHz PtMP station powered by Wave Technology.

• Max. link range:



  • — Wave AP: 5 km


  • — Wave AP Micro: 4 km






• Max. total throughput: 2 Gbps (1 Gbps duplex)


• 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)


• (1) GbE RJ45 port


• Integrated GPS & Bluetooth

Mechanical

Dimensions O256.5 x 113.5 mm (O10.1 x 4.5")

Weight Without mount: 932 g (2.1 lb)

With mount: 1.2 kg (2.6 lb)

Enclosure material Aluminum alloy, UV stabilized plastic

Mount material Aluminum alloy, UV stabilized plastic

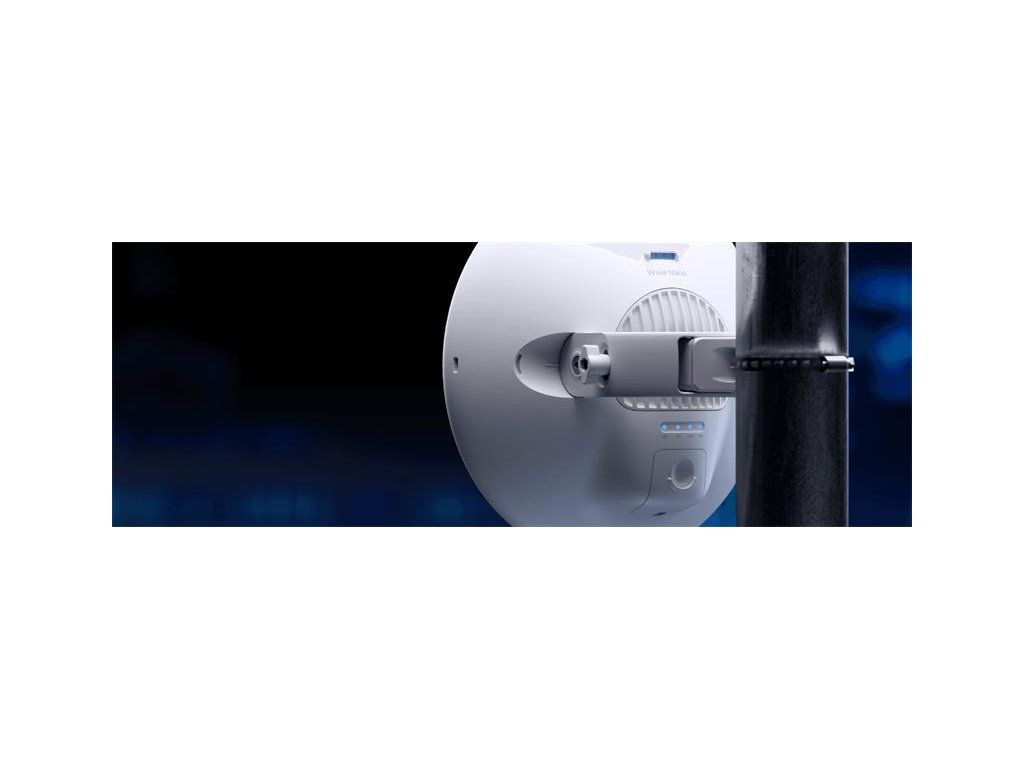

Pole mount diameter 25 to 63.5 mm (1 to 2.5") on pipe outer diameter

Wind loading 127 N at 200 km/h (28.6 lbf at 125 mph)

Weatherproofing IPX6



Hardware

Processor Dual-core ARM® Cortex®-A53 at 1 GHz

Memory DDR3L 512 MB

Networking interface (1) GbE RJ45 port

Max. power consumption 20W

Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply 48V DC, 0.65A gigabit PoE adapter (Included)

Can be powered by a UISP Router or UISP Switch

Supported voltage range 44–54V DC

22–27V DC

GPS Yes

Button Factory reset

LEDs Power, Ethernet, GPS, link

Ambient operating temperature -40 to 60° C (-40 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE



Software

Operating mode PtMP station, PtP*

*FW version 3.2.0 and later.

Ubiquiti specific features Wave AI, discovery protocol

Services UISP, ping watchdog, NTP client, SNMP

Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping**

*FW version 3.3.0 and later.

**FW version 3.4.0 and later.

Network Bridge/Router* mode

*Router is available in PtMP station mode only.

Application requirements UISP: Version 1.4.5 and later



System

Total throughput 2 Gbps (1 Gbps duplex)

Max. range 5+ km

Encryption WPA2-PSK (AES)



RF

Operating frequency* 57–71 GHz

*Depends on regulatory region.

Channel bandwidth 2160, 1080, 540* MHz

*FW version 3.3.0 and later.

Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz

*Depends on regulatory region.

Modulation 16QAM, QPSK

Antenna gain 41 dBi

Polarization Vertically linear

Beamwidth Azimuth: 3 dB 1.4°

Elevation: 3 dB 1.4°



Back-Up RF

WiFi standard 802.11ax (WiFi 6)

Operating frequency*

US/CA

Worldwide

U-NII-1 5150 - 5250 MHz

U-NII-2A 5250 - 5350 MHz

U-NII-2C 5470 - 5725 MHz

U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz

*Depends on regulatory region.

Channel bandwidth 20, 40, 80 MHz

Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)

Antenna gain 19 dBi

Polarization Dual-linear

Beamwidth Azimuth: 3 dB 14°

Elevation: 3 dB 14°

Cross-pol isolation 20 dB



LEDs

Power Flashing white: bootup in progress

White: not connected to UISP application

Blue: connected to UISP application

Flashing blue: locate in progress

Blue/white: firmware upgrade in progress

Ethernet Flashing blue: Ethernet traffic detected

GPS Blue: receiving at least (4) GPS satellite signal

Links White: 5 GHz link

Blue: 60 GHz link
